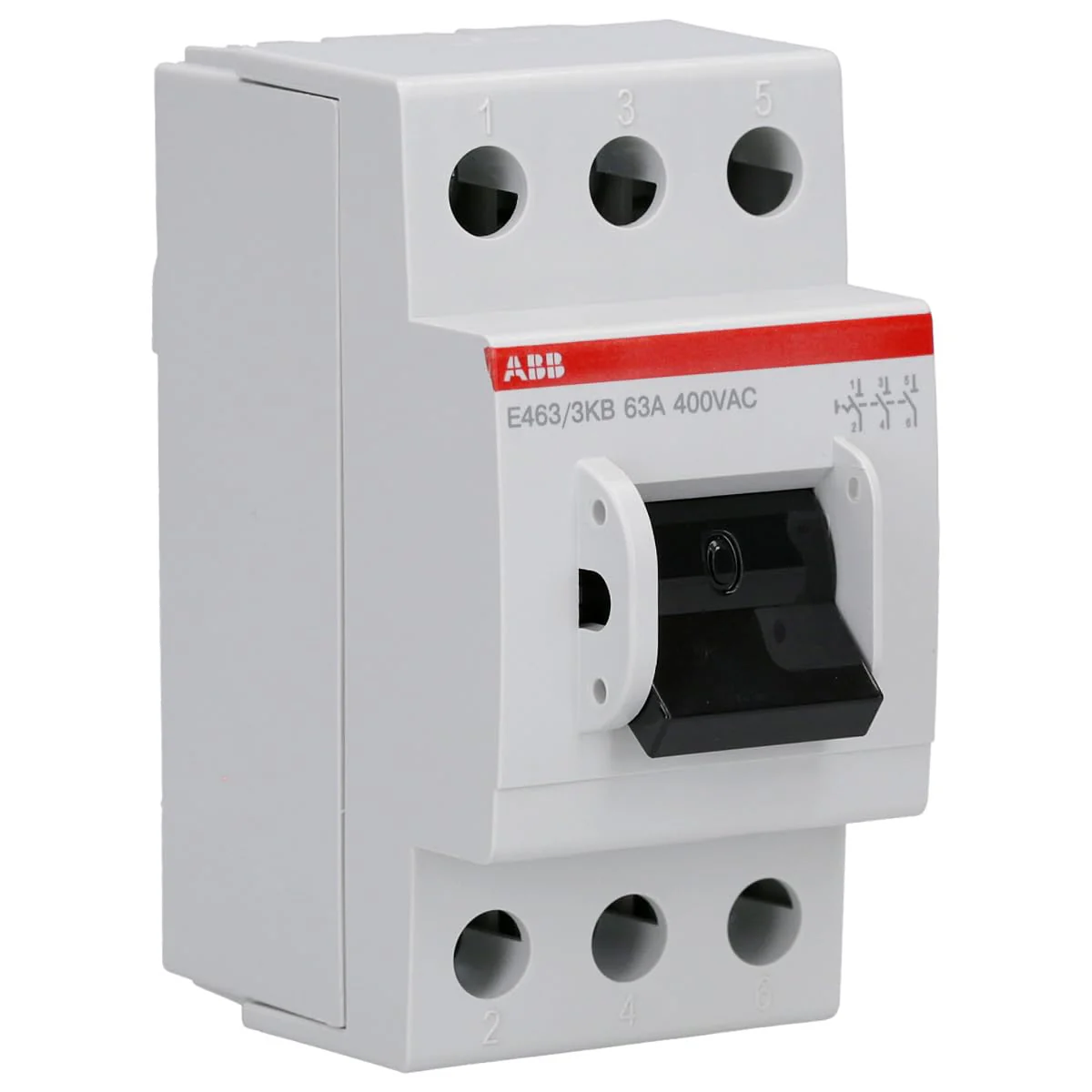

ABB E 463/3-KB Main Switch 3S, 63A, 400 V AC 2CCE160300R0131
ABB E 463/3-KB Main Switch 3S, 63A, 400 V AC 2CCE160300R0131
Box contents: 1 piece. Switching function: off switch; number of normally open switches: 3; number of openers: 0; number of change-over switches: 0; rated current: 63 A; rated voltage: 400 V; short circuit resistance (ICW): 10 kA; voltage type: AC; forced disconnection (according to DIN VDE 0113): yes; with signal lamp: no; colour of the dome: black. ; Rectable; lamp base: not applicable; width in pitch units: 2.5; installation depth: 68 mm
Product Features
- 3-pin main on-off switch, 63 A - for safe separation of three-phase circuits
- 250/400 V AC/DC operating voltage - flexible, ready for use from 24 V
- 10 kA shock current resistance with double interruption - robust in case of short circuit and VDE standard compliant
- Efficient and compact: 5.4 W power loss, only 44 mm wide (2.5 TE), IP20 protection and easy to mount on 35 mm DIN rail
- Compliant and environmentally friendly: tested according to DIN EN 606691/VDE 0632, CE certified, RoHS compliant, robust plastic housing
More Images

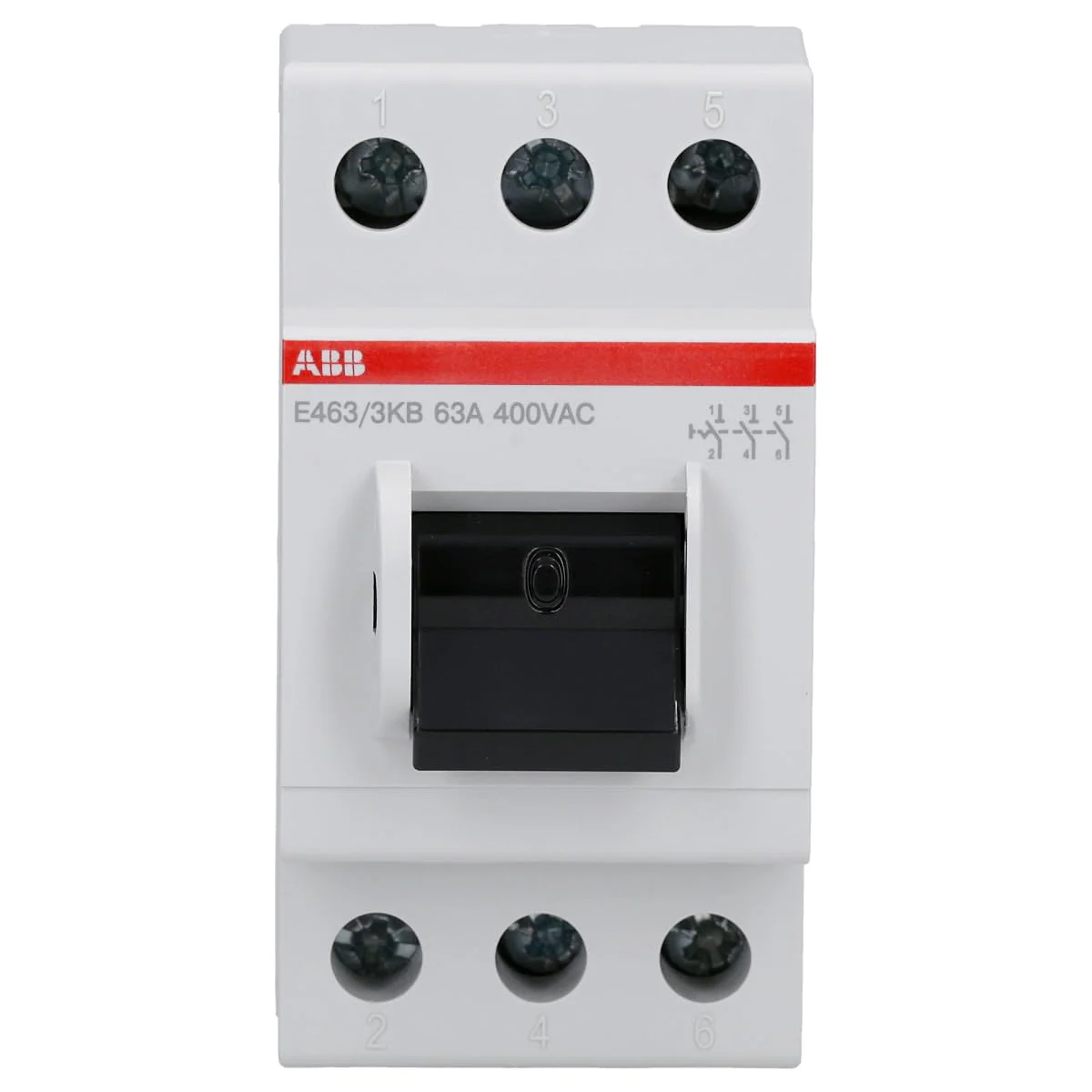

ABB E 463/3-KB Main Switch 3S, 63A, 400 V AC 2CCE160300R0131
ABB E 463/3-KB Main Switch 3S, 63A, 400 V AC 2CCE160300R0131
Box contents: 1 piece. Switching function: off switch; number of normally open switches: 3; number of openers: 0; number of change-over switches: 0; rated current: 63 A; rated voltage: 400 V; short circuit resistance (ICW): 10 kA; voltage type: AC; forced disconnection (according to DIN VDE 0113): yes; with signal lamp: no; colour of the dome: black. ; Rectable; lamp base: not applicable; width in pitch units: 2.5; installation depth: 68 mm
Product Features
- 3-pin main on-off switch, 63 A - for safe separation of three-phase circuits
- 250/400 V AC/DC operating voltage - flexible, ready for use from 24 V
- 10 kA shock current resistance with double interruption - robust in case of short circuit and VDE standard compliant
- Efficient and compact: 5.4 W power loss, only 44 mm wide (2.5 TE), IP20 protection and easy to mount on 35 mm DIN rail
- Compliant and environmentally friendly: tested according to DIN EN 606691/VDE 0632, CE certified, RoHS compliant, robust plastic housing
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
ABB E 463/3-KB Main Switch 3S, 63A, 400 V AC 2CCE160300R0131
Box contents: 1 piece. Switching function: off switch; number of normally open switches: 3; number of openers: 0; number of change-over switches: 0; rated current: 63 A; rated voltage: 400 V; short circuit resistance (ICW): 10 kA; voltage type: AC; forced disconnection (according to DIN VDE 0113): yes; with signal lamp: no; colour of the dome: black. ; Rectable; lamp base: not applicable; width in pitch units: 2.5; installation depth: 68 mm
Product Features
- 3-pin main on-off switch, 63 A - for safe separation of three-phase circuits
- 250/400 V AC/DC operating voltage - flexible, ready for use from 24 V
- 10 kA shock current resistance with double interruption - robust in case of short circuit and VDE standard compliant
- Efficient and compact: 5.4 W power loss, only 44 mm wide (2.5 TE), IP20 protection and easy to mount on 35 mm DIN rail
- Compliant and environmentally friendly: tested according to DIN EN 606691/VDE 0632, CE certified, RoHS compliant, robust plastic housing
