9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A
HomeStore

9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A

9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A

9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified)

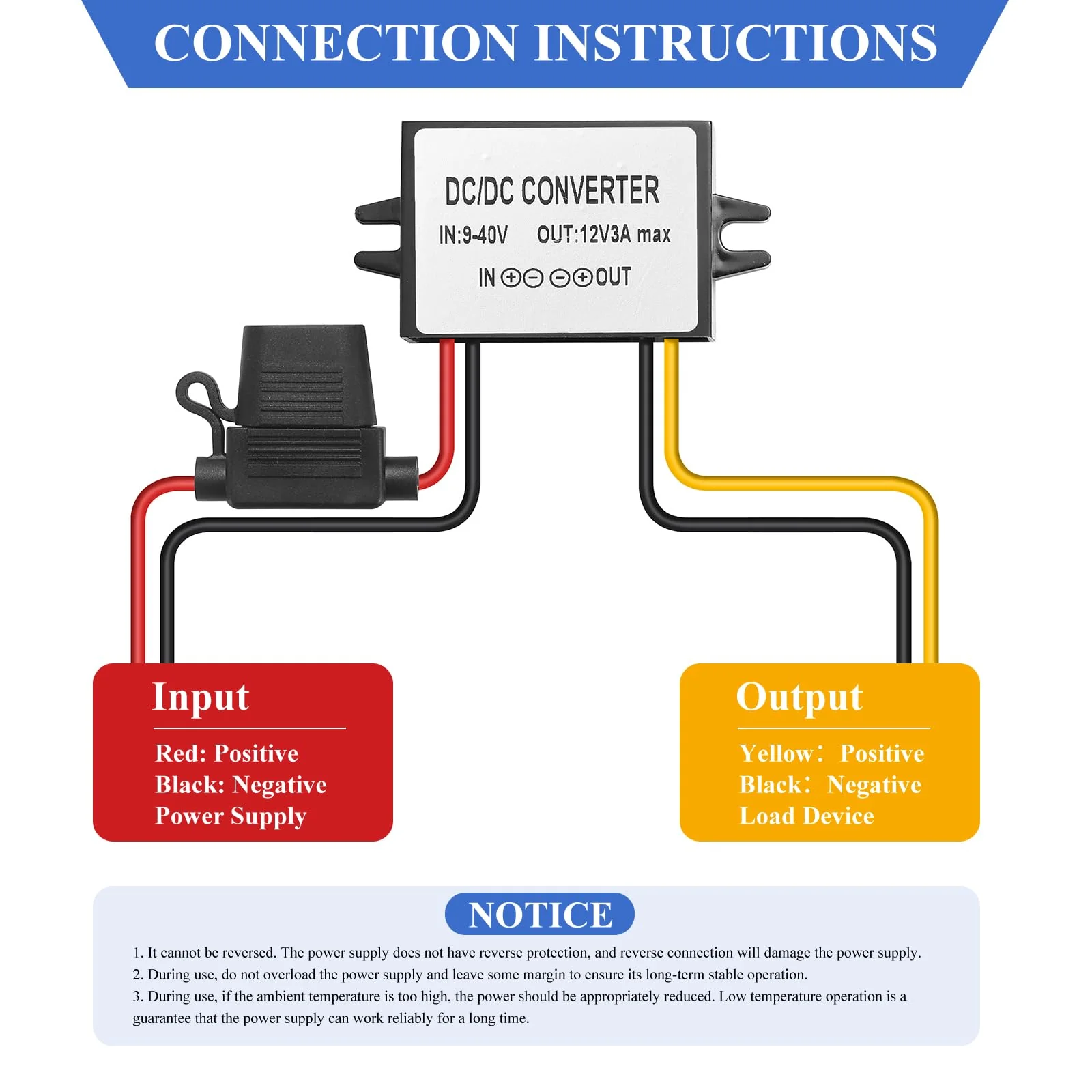

DC 9-40V to 12V Step Down Converter parameters:Input parameterInput range： 9-40VRated input voltage：12/24VTransfer efficiency：95%Incoming line：15-16CM(R+ B-)Output voltage：12VOutput：3A MAXMaximumoutput：36W MAXNo-load adjustment rate：2%Load regulation：3%Quiescent dissipation：≤15MARipple wave：200mVP-PThe oscilloscope bandwidth is 20 MHz, and the test end is connected with 10 μ F electrolytic capacitor and 0.1 μ F ceramic capacitor.Outlet line：13-14CM(Y+ B-) Enviromental Parameterworking temperature：-20-65°Storage temperature：-40-85°Working humidity：10%-90%RH Defencive functionclassification of waterproof：IP67 OtherWeight：0.62 lbSize：1.811.260.71 inchHeat dissipation method：natural heat dissipation Matters need Attention1.The products are stored in a dry and cool place with a temperature range of-40℃ ~80℃, and avoid contact with corrosive substances, and stay away from fire and heat sources.2. Do not use it near a heat source (such as a fire or a heater).3. Do not connect the input line to 220V electricity.4. Do not put the product into the fire or heat it.5. Do not short-circuit the positive or negative poles of the product with wires or other metal objects.6.Non-professional personnel are prohibited to disassemble and repair by themselves.

Product Features

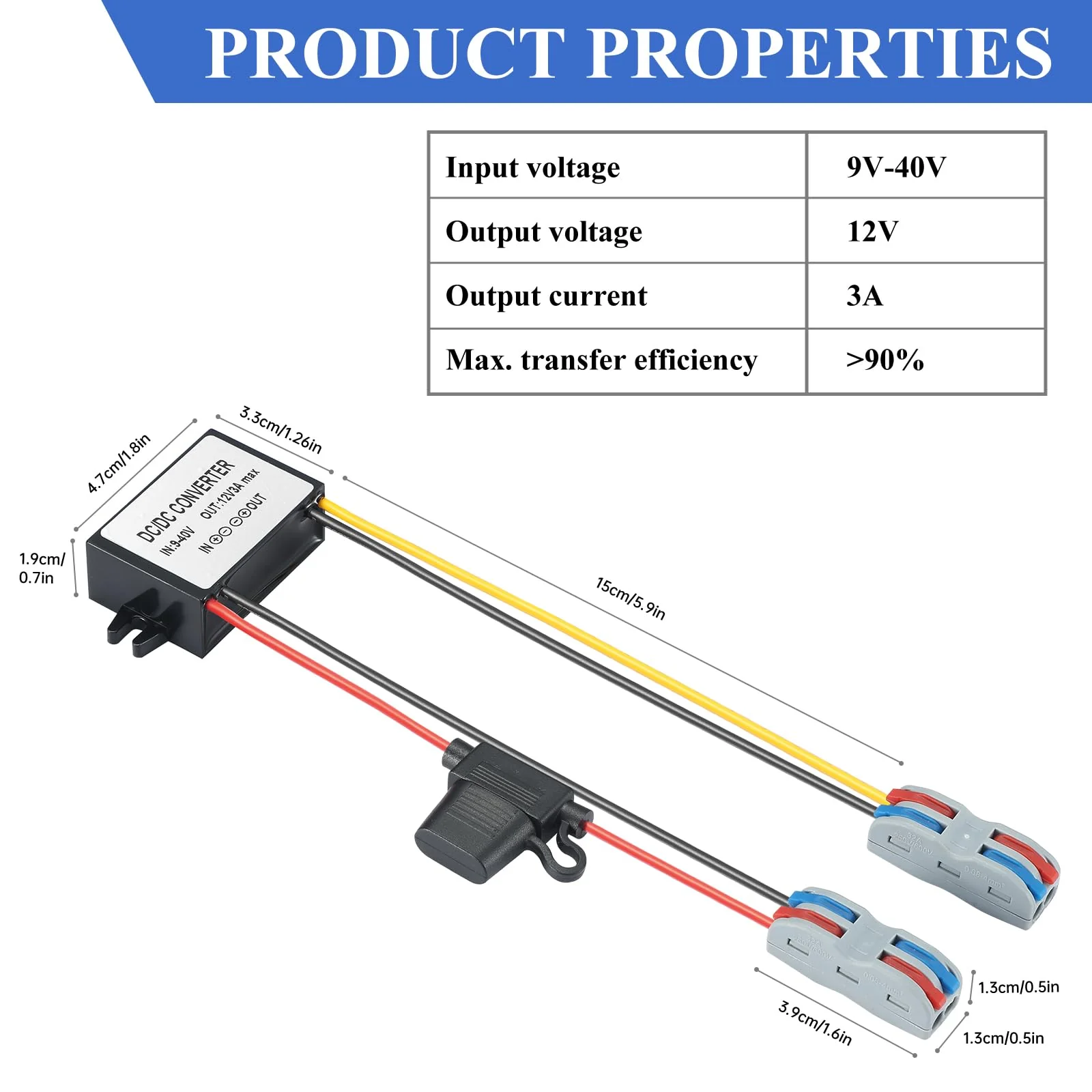

  • Voltage Regulator Converter : Input voltage range: 9-40V; Rated input voltage: 12/24V; Output voltage: 12V; Output current: 3A MAX; Output power: 36W MAX.

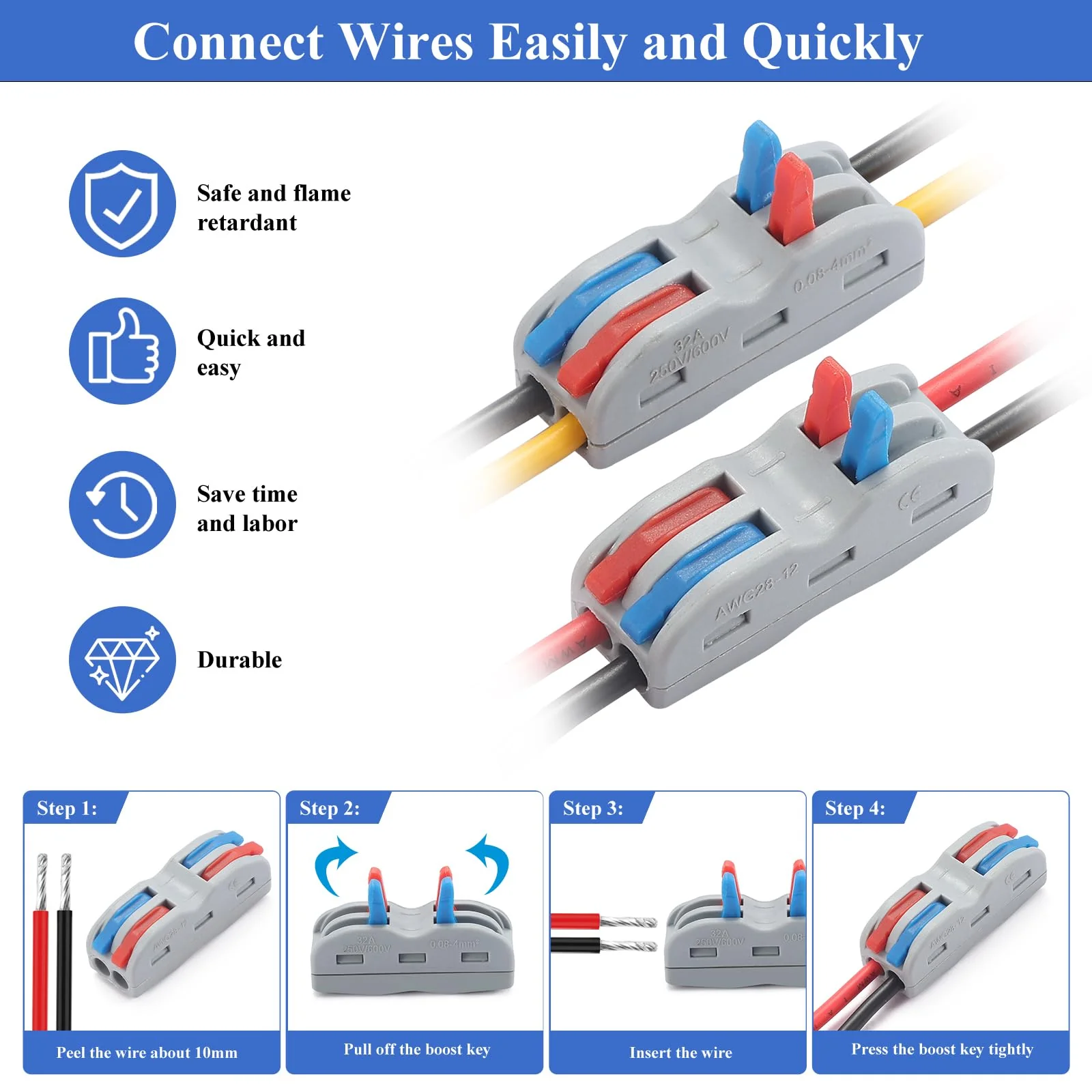

  • Easy to Use : Strip the wires about 10 mm (0.4 inches) and insert them into the terminals. This voltage voltage regulator is equipped with a lever nut connection for quick connection. No wiring is required, reducing wiring time.

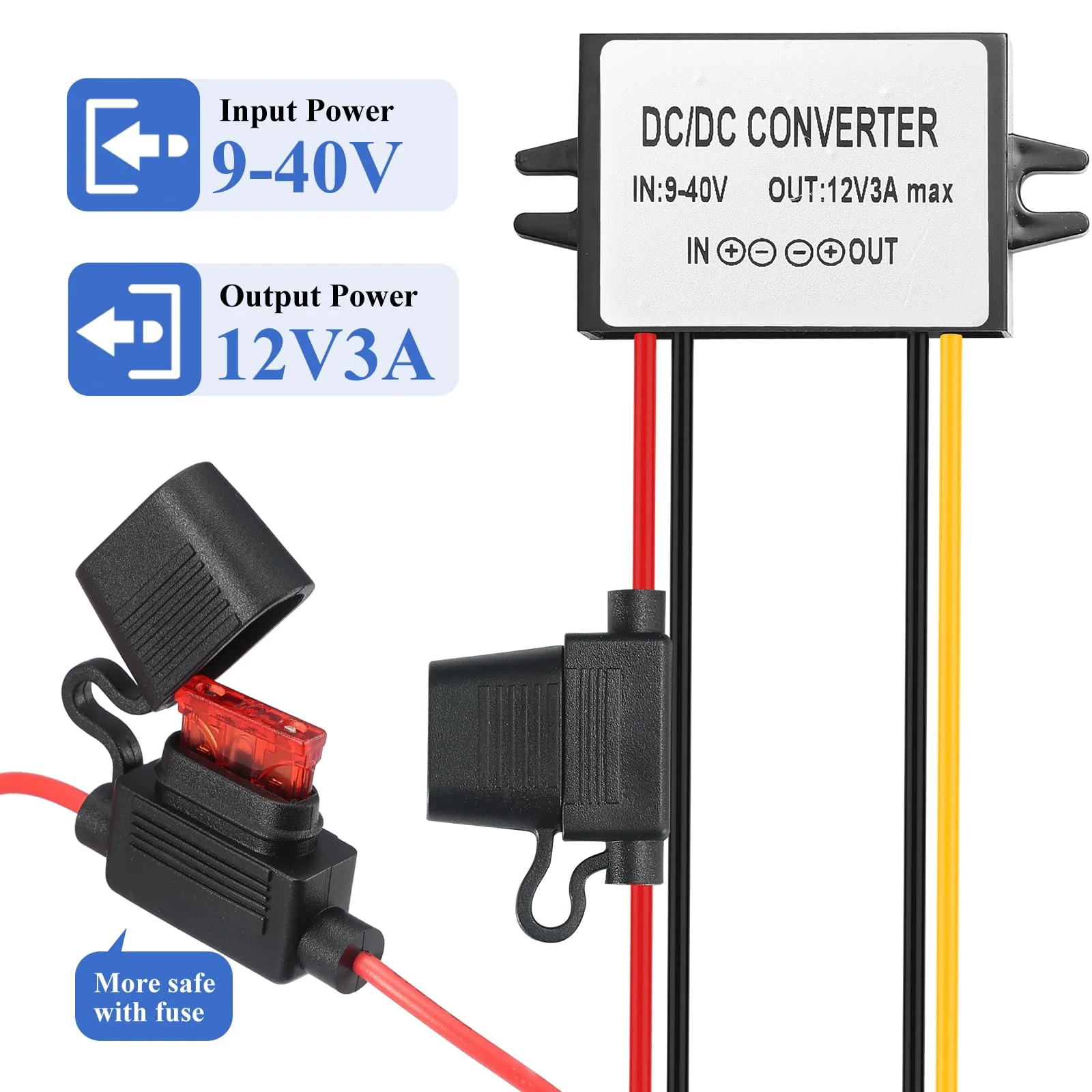

  • Fuse Protection Function: The 9-40V to 12V3A voltage converter is equipped with over-current/short-circuit/over-temperature protection fuses to ensure good safety during conversion work.

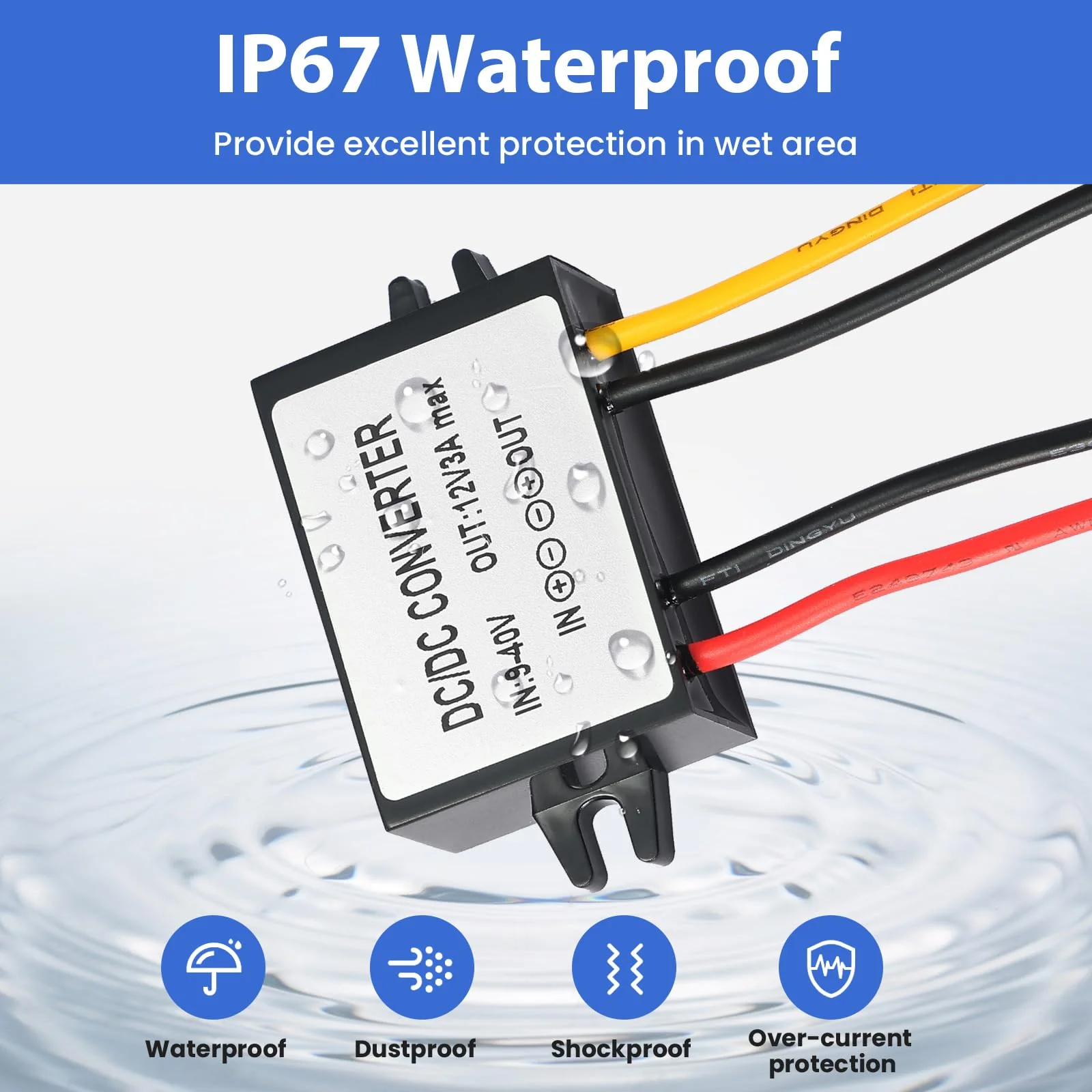

  • IP67 Waterproof Function: The DC-DC transformer adopts non-isolated synchronous voltage converter technology and has IP67 waterproof function.
  • Wide Range of Applications: DC-DC waterproof voltage converter is widely used in cars, trucks, surveillance systems, navigators, car recorders, advertising screens, medical equipment, instruments, LED strips, electric fans, DIY and other fields.
$83.30
9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A—
$83.30

More Images

9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A - Image 2
9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A - Image 3
9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A - Image 4
9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A - Image 5
9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A - Image 6
9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A - Image 7
9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A - Image 8

9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified) Black DC/DC 9-40V to 12V3A

9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified)

DC 9-40V to 12V Step Down Converter parameters:Input parameterInput range： 9-40VRated input voltage：12/24VTransfer efficiency：95%Incoming line：15-16CM(R+ B-)Output voltage：12VOutput：3A MAXMaximumoutput：36W MAXNo-load adjustment rate：2%Load regulation：3%Quiescent dissipation：≤15MARipple wave：200mVP-PThe oscilloscope bandwidth is 20 MHz, and the test end is connected with 10 μ F electrolytic capacitor and 0.1 μ F ceramic capacitor.Outlet line：13-14CM(Y+ B-) Enviromental Parameterworking temperature：-20-65°Storage temperature：-40-85°Working humidity：10%-90%RH Defencive functionclassification of waterproof：IP67 OtherWeight：0.62 lbSize：1.811.260.71 inchHeat dissipation method：natural heat dissipation Matters need Attention1.The products are stored in a dry and cool place with a temperature range of-40℃ ~80℃, and avoid contact with corrosive substances, and stay away from fire and heat sources.2. Do not use it near a heat source (such as a fire or a heater).3. Do not connect the input line to 220V electricity.4. Do not put the product into the fire or heat it.5. Do not short-circuit the positive or negative poles of the product with wires or other metal objects.6.Non-professional personnel are prohibited to disassemble and repair by themselves.

Product Features

  • Voltage Regulator Converter : Input voltage range: 9-40V; Rated input voltage: 12/24V; Output voltage: 12V; Output current: 3A MAX; Output power: 36W MAX.
  • Easy to Use : Strip the wires about 10 mm (0.4 inches) and insert them into the terminals. This voltage voltage regulator is equipped with a lever nut connection for quick connection. No wiring is required, reducing wiring time.
  • Fuse Protection Function: The 9-40V to 12V3A voltage converter is equipped with over-current/short-circuit/over-temperature protection fuses to ensure good safety during conversion work.
  • IP67 Waterproof Function: The DC-DC transformer adopts non-isolated synchronous voltage converter technology and has IP67 waterproof function.
  • Wide Range of Applications: DC-DC waterproof voltage converter is widely used in cars, trucks, surveillance systems, navigators, car recorders, advertising screens, medical equipment, instruments, LED strips, electric fans, DIY and other fields.

Product Information

Shipping & Returns

Description

9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified)

DC 9-40V to 12V Step Down Converter parameters:Input parameterInput range： 9-40VRated input voltage：12/24VTransfer efficiency：95%Incoming line：15-16CM(R+ B-)Output voltage：12VOutput：3A MAXMaximumoutput：36W MAXNo-load adjustment rate：2%Load regulation：3%Quiescent dissipation：≤15MARipple wave：200mVP-PThe oscilloscope bandwidth is 20 MHz, and the test end is connected with 10 μ F electrolytic capacitor and 0.1 μ F ceramic capacitor.Outlet line：13-14CM(Y+ B-) Enviromental Parameterworking temperature：-20-65°Storage temperature：-40-85°Working humidity：10%-90%RH Defencive functionclassification of waterproof：IP67 OtherWeight：0.62 lbSize：1.811.260.71 inchHeat dissipation method：natural heat dissipation Matters need Attention1.The products are stored in a dry and cool place with a temperature range of-40℃ ~80℃, and avoid contact with corrosive substances, and stay away from fire and heat sources.2. Do not use it near a heat source (such as a fire or a heater).3. Do not connect the input line to 220V electricity.4. Do not put the product into the fire or heat it.5. Do not short-circuit the positive or negative poles of the product with wires or other metal objects.6.Non-professional personnel are prohibited to disassemble and repair by themselves.

Product Features

  • Voltage Regulator Converter : Input voltage range: 9-40V; Rated input voltage: 12/24V; Output voltage: 12V; Output current: 3A MAX; Output power: 36W MAX.
  • Easy to Use : Strip the wires about 10 mm (0.4 inches) and insert them into the terminals. This voltage voltage regulator is equipped with a lever nut connection for quick connection. No wiring is required, reducing wiring time.
  • Fuse Protection Function: The 9-40V to 12V3A voltage converter is equipped with over-current/short-circuit/over-temperature protection fuses to ensure good safety during conversion work.
  • IP67 Waterproof Function: The DC-DC transformer adopts non-isolated synchronous voltage converter technology and has IP67 waterproof function.
  • Wide Range of Applications: DC-DC waterproof voltage converter is widely used in cars, trucks, surveillance systems, navigators, car recorders, advertising screens, medical equipment, instruments, LED strips, electric fans, DIY and other fields.
