8 Channel Optocoupler Isolation Board, DC 3.3V 5V 8 Channel Optocoupler Isolation Module, PNP NPN Low High Level Output Signal Converter
8 Channel Optocoupler Isolation Board, DC 3.3V 5V 8 Channel Optocoupler Isolation Module, PNP NPN Low High Level Output Signal Converter
8 Channel Optocoupler Isolation Board, DC 3.3V 5V 8 Channel Optocoupler Isolation Module, PNP NPN Low High Level Output Signal Converter

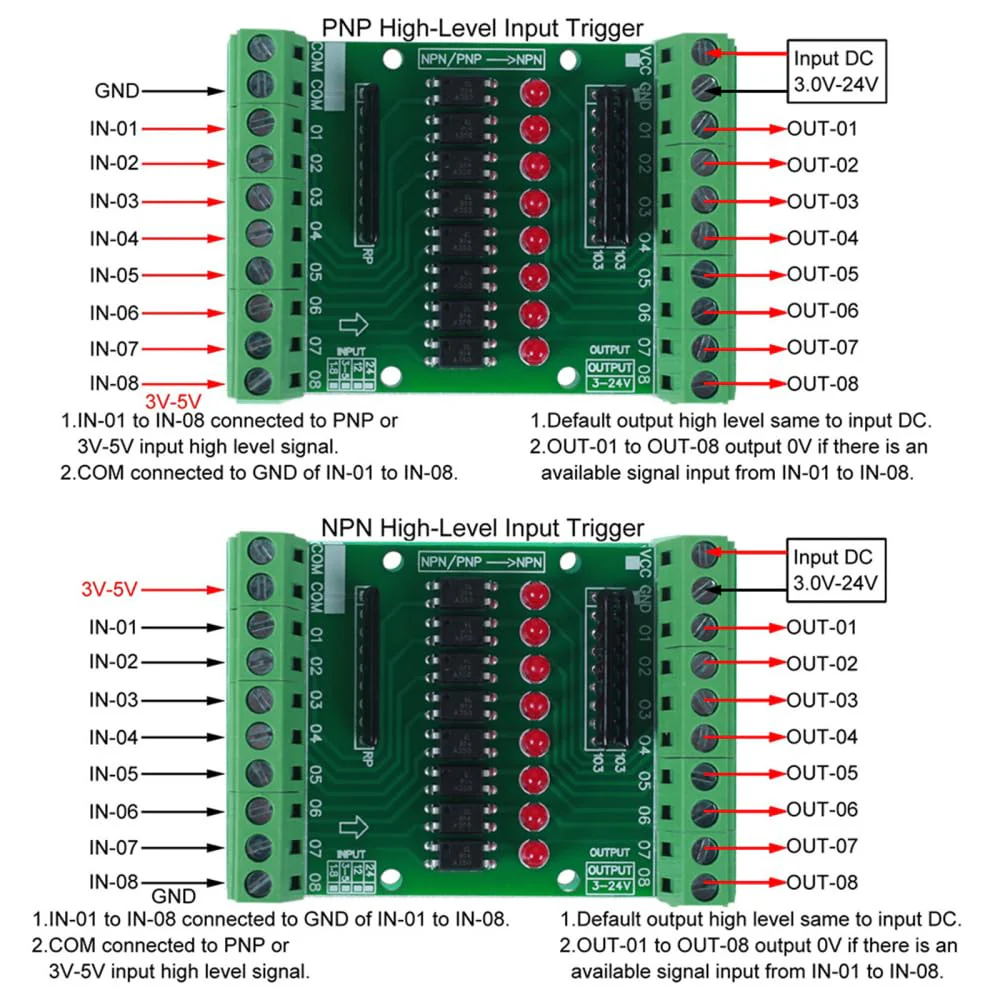

Welcome to my store. I hope you have a pleasant shopping trip! Description: It is a 8 channel 3.3V DC 5V optocoupler isolation module. It detects 8-channel DC power sources and outputs DC voltage according to the detection results. The results can be applied to PLC systems and other control devices. It detects whether input voltage is present. The output status changes once input voltage is detected. Features: 1. Optocoupler isolation control 2. 8-channel input and output 3. NPN/PNP signal output (low/high level) 4. Support DC 3.3V ~ 5V input. 5. DC 1.8V-24V load voltage Specification: Product Name: DC 3.3V 5V 8 Channel Optocoupler Isolation Module Input voltage: DC 3.3 V ~ 5 V. Load input voltage: DC 1.8 V ~ 24 V. Output Type: NPN / PNP (Low/High) Signal Output Output current: 50mA Working temperature: -20℃~85℃. Working humidity: 10% ~ 85% RH Size: 72 x 50 x 27 mm. Application: 1. DC Detection 2. PLC control system 3. Device alarm. Package list: 1 x optocoupler insulation board. Notes: 1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. However, we guarantee that the colour is the same as the picture. 2. Please allow 1-2cm error due to manual measurement.
Product Features
- It is a 8 channel 3.3V DC 5V optocoupler isolation module. It can detect 8-channel DC input power sources and output DC voltage according to the detection results.
- The output results can be applied to PLC systems and other control devices. You can detect whether input voltage is present. The output status changes when input voltage is detected.
- Optocoupler isolation control, 8 channel input and output, NPN/PNP signal output (low/high level), support DC 3.3V~5V input
- Input Voltage: DC 3.3V - 5V, Load Input Voltage: DC 1.8V - 5V, Output Type: NPN/PNP (Low/High) Signal Output, Output Current: 50mA, Operating Temperature: -20C - 85C, Operating Humidity: 10% - 85% RH
- Application: DC detection, PLC control system, device alarm
