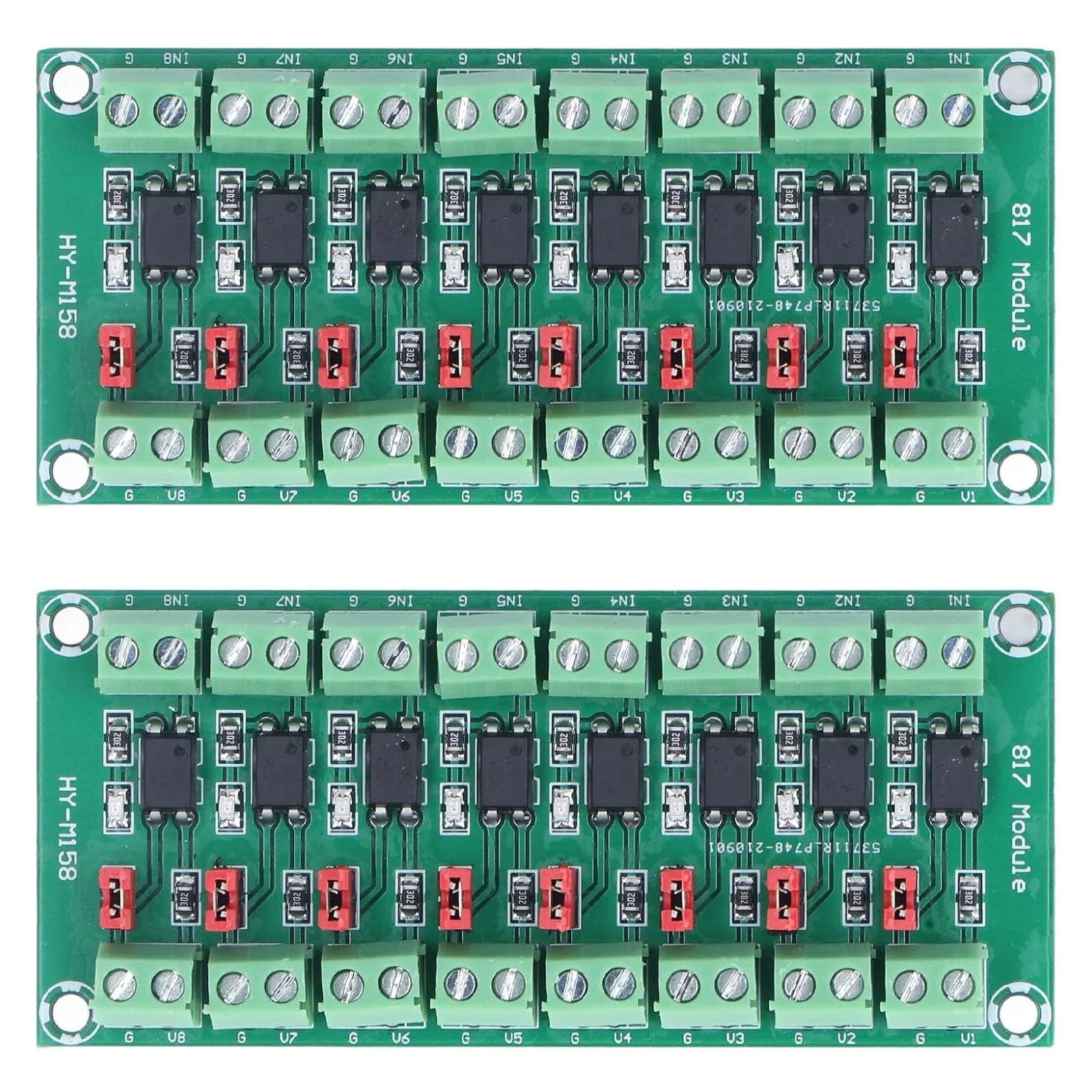

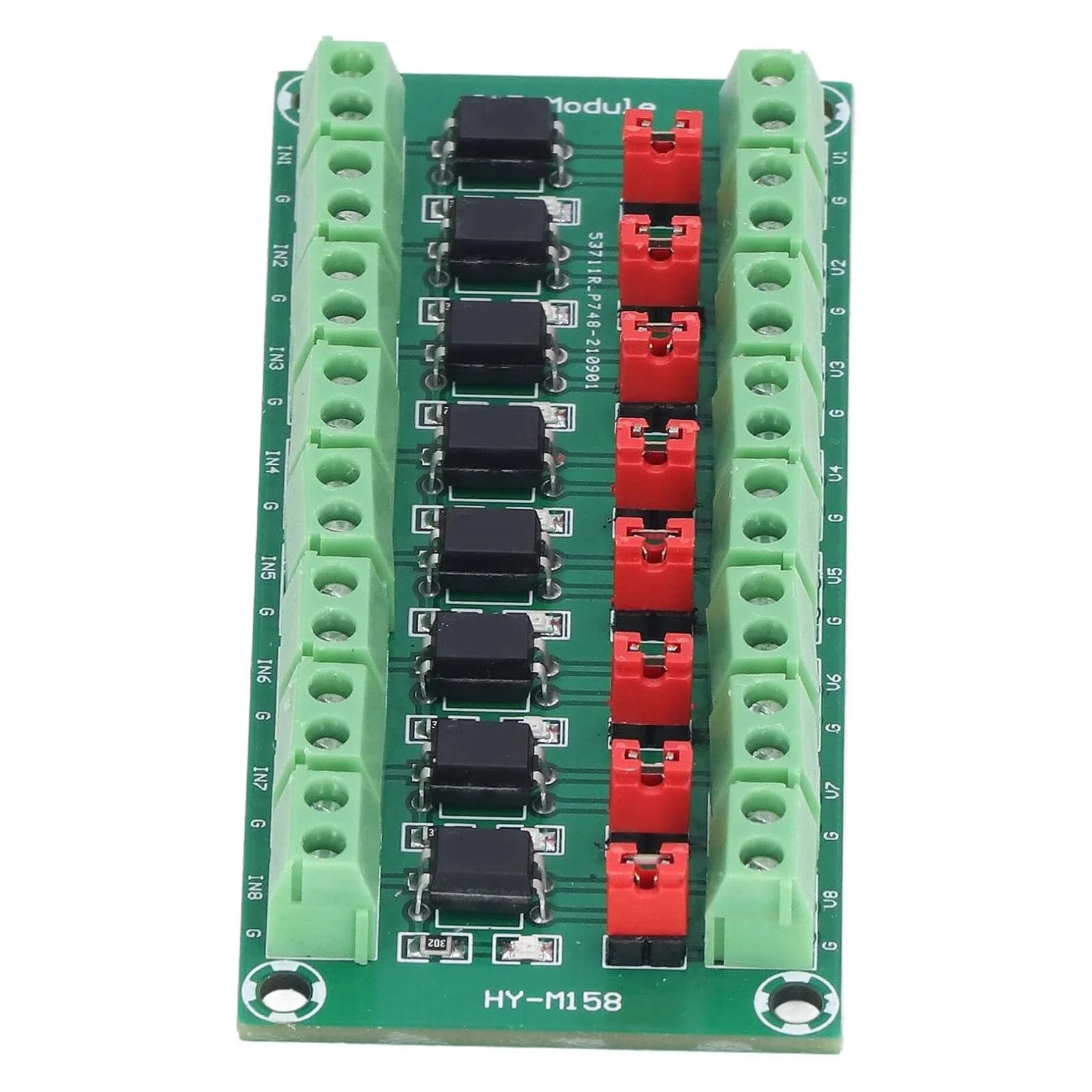

8 Channel Optocoupler Insulation Board Module 817 3.6-30V Optoelectronic Insulated Module Optocoupler Insulation Board (2)

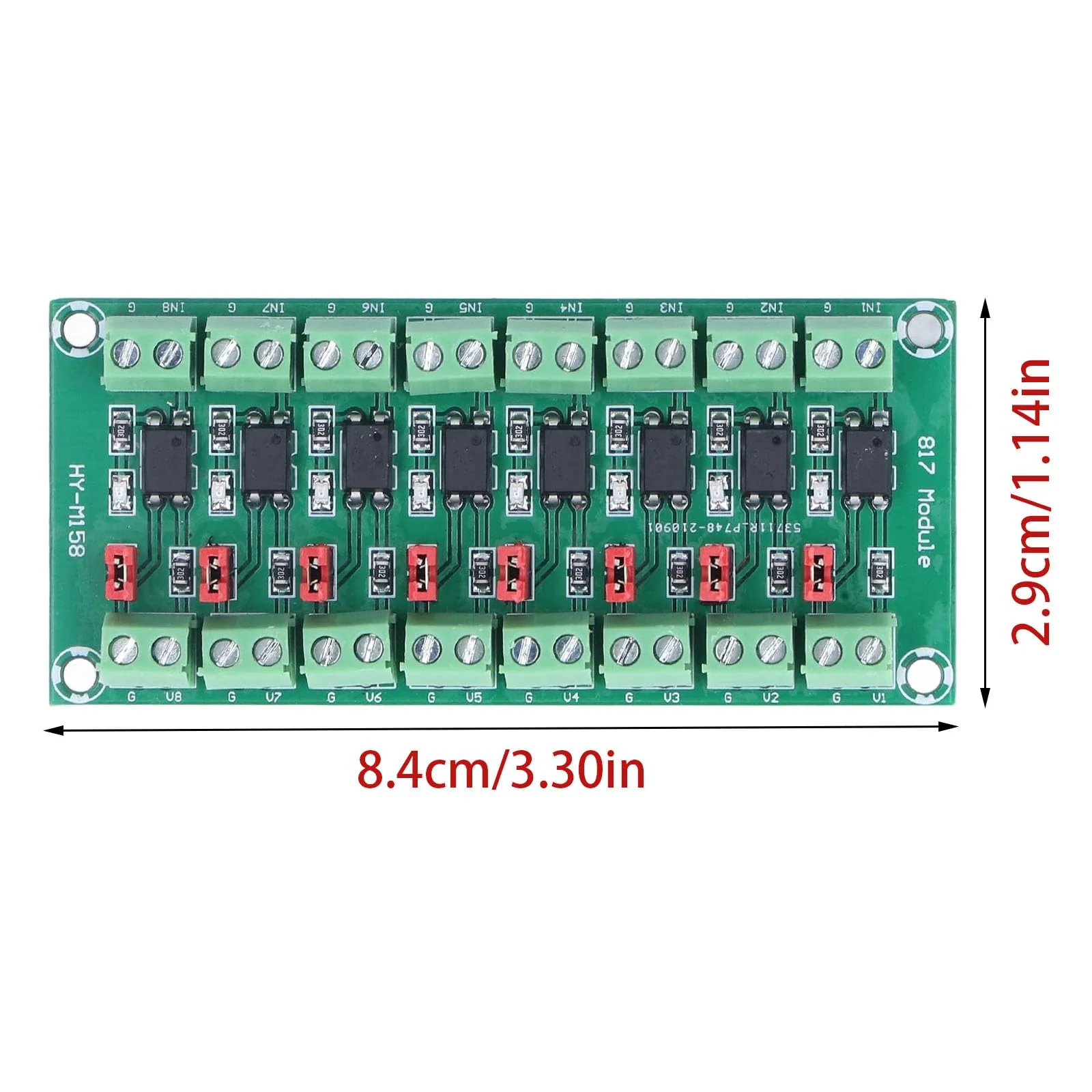

Drive end signal voltage: 3.6 to 24 V. Output voltage range: 3.6.30 V. The total power is constant, does not exceed 10 mA. By using a jumper cap, it can be determined whether the output connection is a high voltage output or a low voltage output; the 8-way 817 circuits on the plate can simultaneously control different voltages; board size: length: 84 mm/3.30 in; 29 mm/1.14 in;

Product Features

• HIGH QUALITY PCB: The insulated optocoupler boards are made of high quality PCB material to ensure reliability, miniaturization, maintenance and interchangeability. Determine consistent, long-lasting performance and ensure that the board integrates easily into your design.
• Versatile control options: the optical isolation of the board provides high interference resistance, so it can control high performance transistors, MOS tubes and other high voltage equipment. It can also directly drive 24-volt low-power relay, making it an ideal solution for a variety of drive needs.
• Compatibility with control interface voltages: the module is compatible with voltage levels of 3.6-24V control interfaces. It also opens the controlled clamp, making it easier to use in a variety of applications. When the control terminal is turned on, the controlled clamp is switched on at the same time.
• Simultaneous Multi-Channel Control The 8 channels of the card 817 are independent of each other, allowing the user to control different voltages or other parameters at the same time.

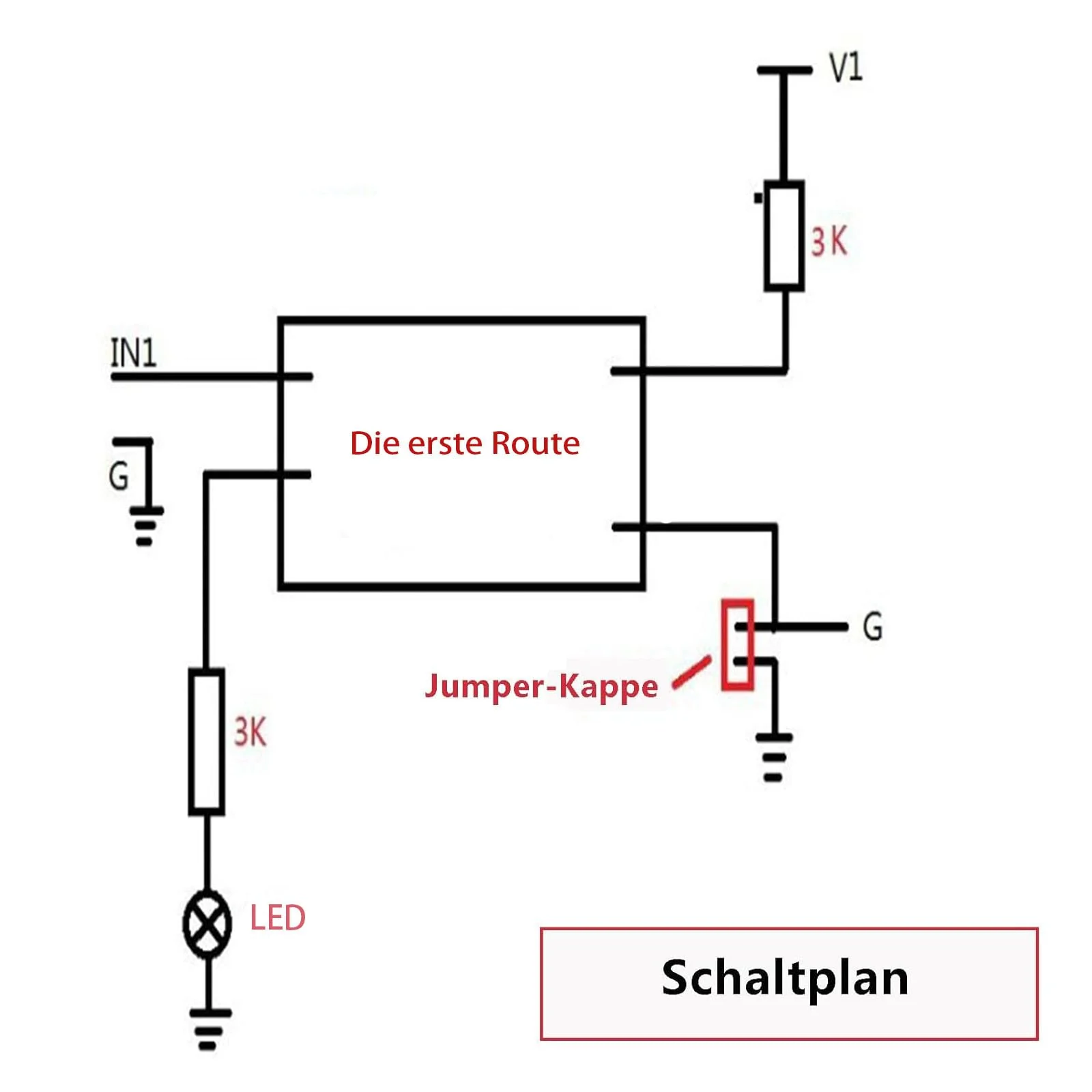

• HIGH OR PULL DOWN OUTPUTS Whether the output is a high or pull down output, can be adjusted with jumper caps.
