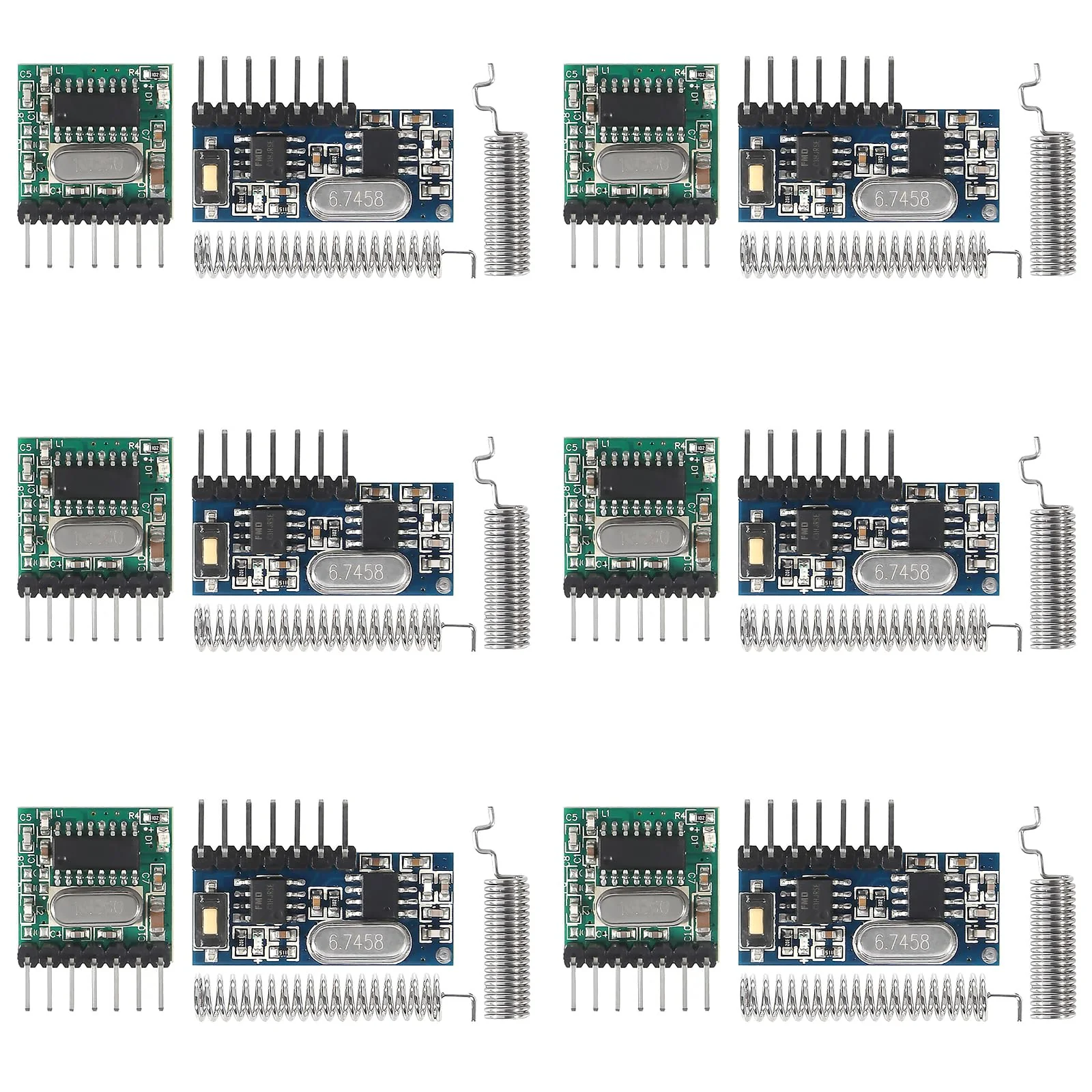

6pcs 433mhz Wireless RF Transmitter and Receiver Wireless 4 Channel Output Link Kit with 1527 Learning Code for Remote Control 433mhz RF 4 Channel
HomeStore

6pcs 433mhz Wireless RF Transmitter and Receiver Wireless 4 Channel Output Link Kit with 1527 Learning Code for Remote Control 433mhz RF 4 Channel

6pcs 433mhz Wireless RF Transmitter and Receiver Wireless 4 Channel Output Link Kit with 1527 Learning Code for Remote Control 433mhz RF 4 Channel

6pcs 433mhz Wireless RF Transmitter and Receiver Wireless 4 Channel Output Link Kit with 1527 Learning Code for Remote Control

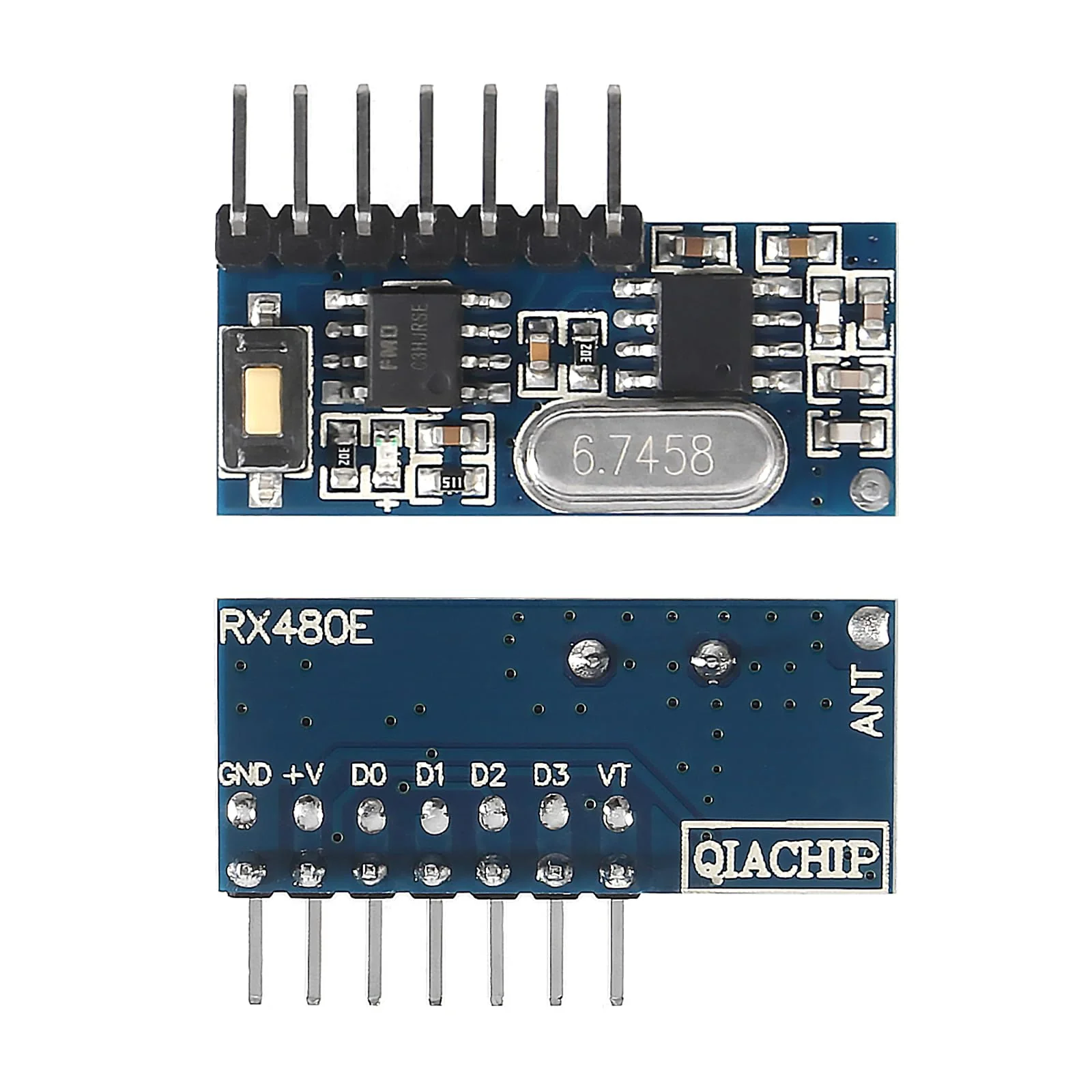

Specification of Receiver Module: Working Voltage: DC2.5V-5V Working Current: 3MA Output Current: 10 mA Working Frequency: 433MHz Receive Sensitivity: -108dB Working Mode: Point move, self-locking, interlocking The Output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons Button Usage (sets mode and starts pairing process): Press Once: Inching mode (Momentary Mode) Press Twice: self-Lock Mode (Toggle-Mode of the 4 Channels) Press Three Times: interlocked mode (selected channel active and be cleared, if another channel becomes active) Specification of Transmitter Module: Transmitting Power: 11dbm Emission Current: 10 mA Rate of Fire: maximum 10KB/S Operating Voltage: DC 3V-24V Customizable Special Code: MCU type Optional Fixed Encoding Type: PT2262/EV1527/HT6P20B Key Data: A, B, C, D groups of 4 inputs can be combined into 15 groups. Standby Current: <3UA Each module has a unique ID address code All modules K1-K4 four key code is the same Pins: ground or negative pole +V: DC3.3~5V input D0: Data output D1: Data output D2: Data output D3: Data output VT: Output How To Programming: Delete Existing Data: Press learning button 8 times. Response: LED flashes 7 times. Learning Remote Code: press learning key once, twice or three times (see below). LED turns on: learning mode is active. Press any button of the remote control. LED indicator flashes three times: learning successfully completed. Test: after the above operation , the receiver board can be controlled by the remote control . More transmitters with different IDs can be learned and stored additionally, starting with step 2. A mixture of different modes is possible. Note: Short antenna for transmitter module Long antenna for receive module

Product Features

  • Antenna for 433Mhz RF module, short antenna for transmitter module, long antenna for receive module.
  • Antenna for 433Mhz RF module, short antenna for transmitter module, long antenna for receive module.

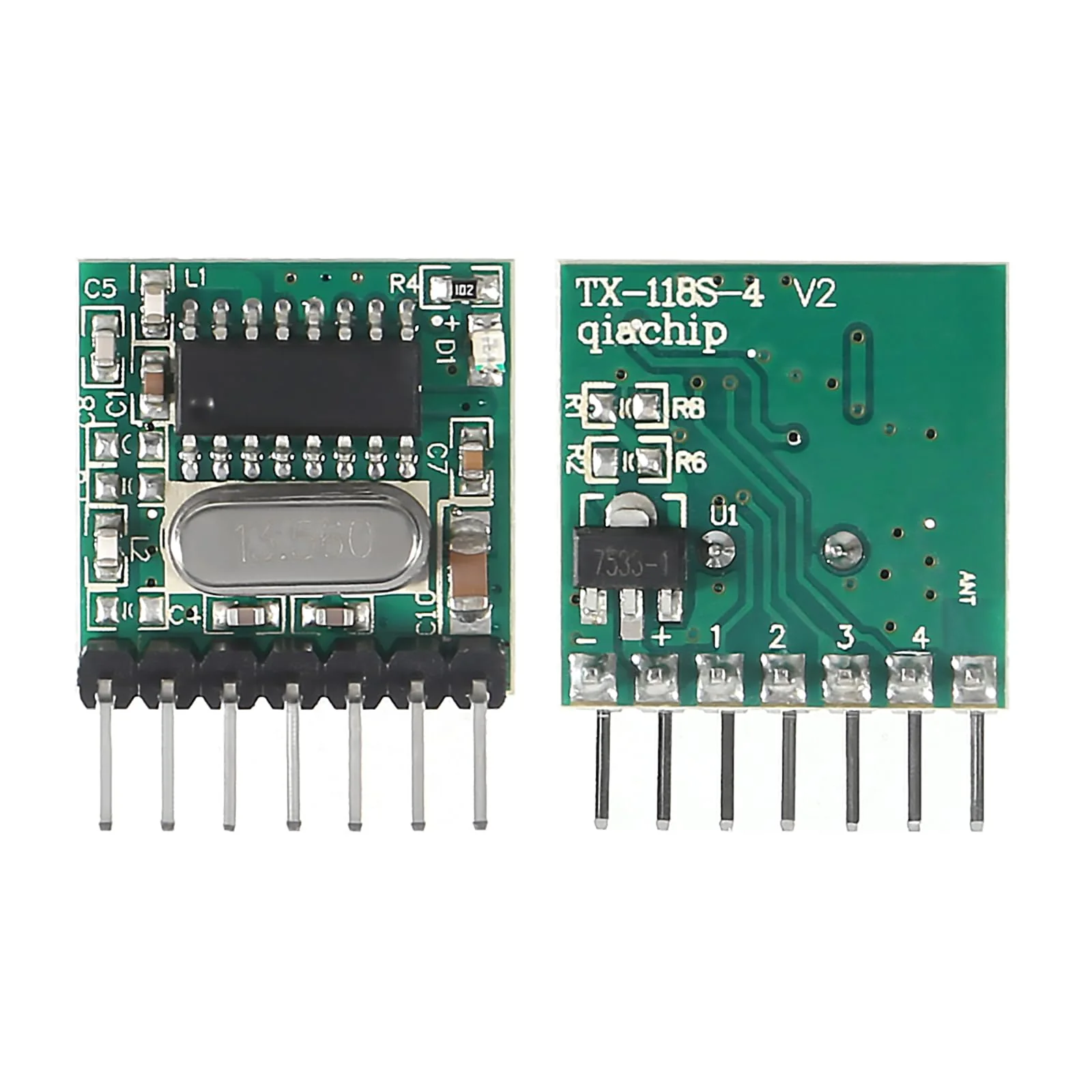

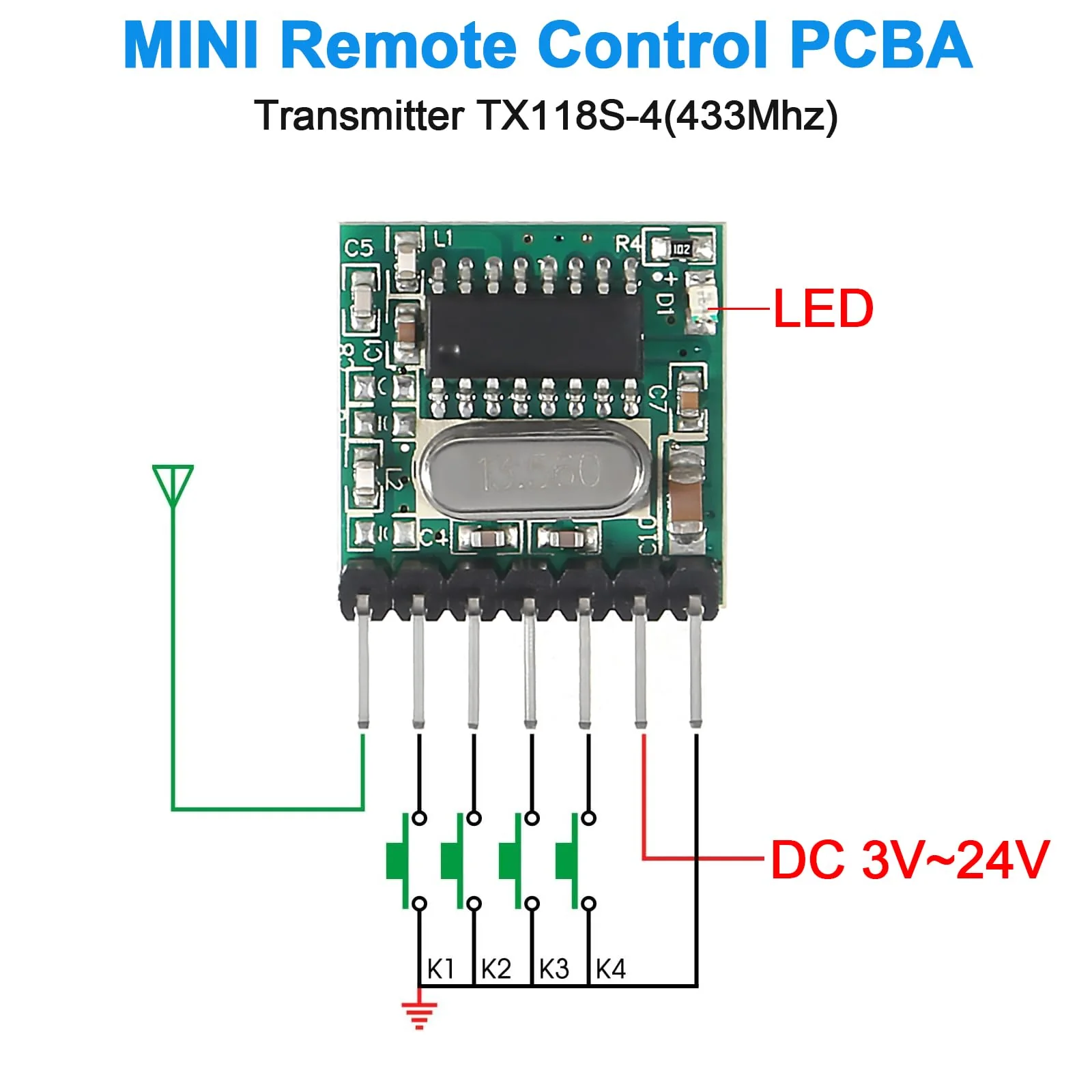

  • Transmitter Module Transmitting Power: 11dbm, distance: 20-100, emission current: 10MA, customizable special code: MCU type.

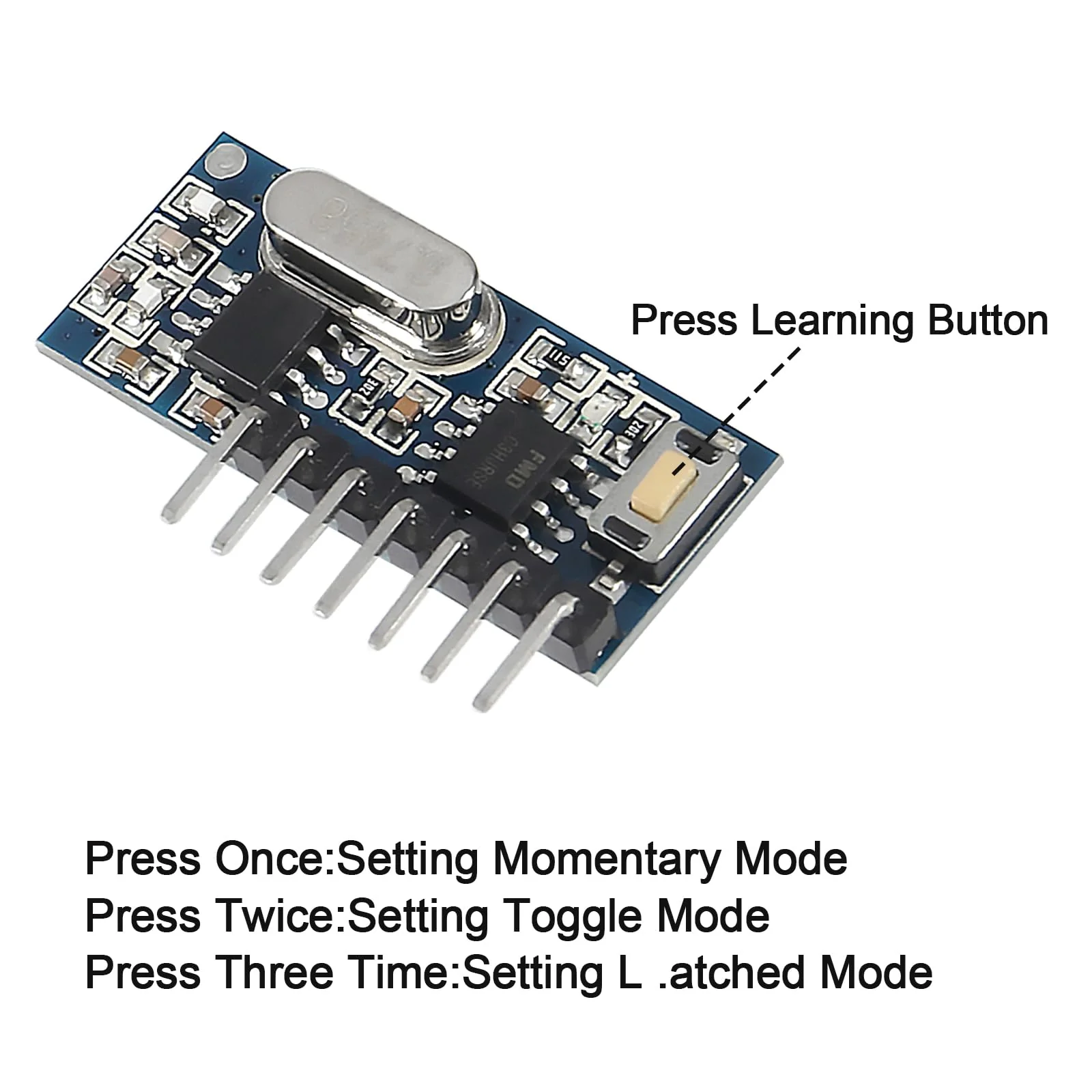

  • Button Usage (sets mode and starts pairing process): Press Once: Inching mode (Momentary Mode) Press Twice: self-Lock Mode (Toggle-Mode of the 4 Channels) Press Three Times: interlocked mode (selected channel active and be cleared, if another channel becomes active).
  • Applications: Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains etc.
$27.38

Original: $78.23

-65%
6pcs 433mhz Wireless RF Transmitter and Receiver Wireless 4 Channel Output Link Kit with 1527 Learning Code for Remote Control 433mhz RF 4 Channel—

$78.23

$27.38

More Images

6pcs 433mhz Wireless RF Transmitter and Receiver Wireless 4 Channel Output Link Kit with 1527 Learning Code for Remote Control 433mhz RF 4 Channel - Image 2
6pcs 433mhz Wireless RF Transmitter and Receiver Wireless 4 Channel Output Link Kit with 1527 Learning Code for Remote Control 433mhz RF 4 Channel - Image 3
6pcs 433mhz Wireless RF Transmitter and Receiver Wireless 4 Channel Output Link Kit with 1527 Learning Code for Remote Control 433mhz RF 4 Channel - Image 4
6pcs 433mhz Wireless RF Transmitter and Receiver Wireless 4 Channel Output Link Kit with 1527 Learning Code for Remote Control 433mhz RF 4 Channel - Image 5
6pcs 433mhz Wireless RF Transmitter and Receiver Wireless 4 Channel Output Link Kit with 1527 Learning Code for Remote Control 433mhz RF 4 Channel - Image 6
6pcs 433mhz Wireless RF Transmitter and Receiver Wireless 4 Channel Output Link Kit with 1527 Learning Code for Remote Control 433mhz RF 4 Channel - Image 7

6pcs 433mhz Wireless RF Transmitter and Receiver Wireless 4 Channel Output Link Kit with 1527 Learning Code for Remote Control 433mhz RF 4 Channel

6pcs 433mhz Wireless RF Transmitter and Receiver Wireless 4 Channel Output Link Kit with 1527 Learning Code for Remote Control

Specification of Receiver Module: Working Voltage: DC2.5V-5V Working Current: 3MA Output Current: 10 mA Working Frequency: 433MHz Receive Sensitivity: -108dB Working Mode: Point move, self-locking, interlocking The Output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons Button Usage (sets mode and starts pairing process): Press Once: Inching mode (Momentary Mode) Press Twice: self-Lock Mode (Toggle-Mode of the 4 Channels) Press Three Times: interlocked mode (selected channel active and be cleared, if another channel becomes active) Specification of Transmitter Module: Transmitting Power: 11dbm Emission Current: 10 mA Rate of Fire: maximum 10KB/S Operating Voltage: DC 3V-24V Customizable Special Code: MCU type Optional Fixed Encoding Type: PT2262/EV1527/HT6P20B Key Data: A, B, C, D groups of 4 inputs can be combined into 15 groups. Standby Current: <3UA Each module has a unique ID address code All modules K1-K4 four key code is the same Pins: ground or negative pole +V: DC3.3~5V input D0: Data output D1: Data output D2: Data output D3: Data output VT: Output How To Programming: Delete Existing Data: Press learning button 8 times. Response: LED flashes 7 times. Learning Remote Code: press learning key once, twice or three times (see below). LED turns on: learning mode is active. Press any button of the remote control. LED indicator flashes three times: learning successfully completed. Test: after the above operation , the receiver board can be controlled by the remote control . More transmitters with different IDs can be learned and stored additionally, starting with step 2. A mixture of different modes is possible. Note: Short antenna for transmitter module Long antenna for receive module

Product Features

  • Antenna for 433Mhz RF module, short antenna for transmitter module, long antenna for receive module.
  • Antenna for 433Mhz RF module, short antenna for transmitter module, long antenna for receive module.
  • Transmitter Module Transmitting Power: 11dbm, distance: 20-100, emission current: 10MA, customizable special code: MCU type.
  • Button Usage (sets mode and starts pairing process): Press Once: Inching mode (Momentary Mode) Press Twice: self-Lock Mode (Toggle-Mode of the 4 Channels) Press Three Times: interlocked mode (selected channel active and be cleared, if another channel becomes active).
  • Applications: Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains etc.

Product Information

Shipping & Returns

Description

6pcs 433mhz Wireless RF Transmitter and Receiver Wireless 4 Channel Output Link Kit with 1527 Learning Code for Remote Control

Specification of Receiver Module: Working Voltage: DC2.5V-5V Working Current: 3MA Output Current: 10 mA Working Frequency: 433MHz Receive Sensitivity: -108dB Working Mode: Point move, self-locking, interlocking The Output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons Button Usage (sets mode and starts pairing process): Press Once: Inching mode (Momentary Mode) Press Twice: self-Lock Mode (Toggle-Mode of the 4 Channels) Press Three Times: interlocked mode (selected channel active and be cleared, if another channel becomes active) Specification of Transmitter Module: Transmitting Power: 11dbm Emission Current: 10 mA Rate of Fire: maximum 10KB/S Operating Voltage: DC 3V-24V Customizable Special Code: MCU type Optional Fixed Encoding Type: PT2262/EV1527/HT6P20B Key Data: A, B, C, D groups of 4 inputs can be combined into 15 groups. Standby Current: <3UA Each module has a unique ID address code All modules K1-K4 four key code is the same Pins: ground or negative pole +V: DC3.3~5V input D0: Data output D1: Data output D2: Data output D3: Data output VT: Output How To Programming: Delete Existing Data: Press learning button 8 times. Response: LED flashes 7 times. Learning Remote Code: press learning key once, twice or three times (see below). LED turns on: learning mode is active. Press any button of the remote control. LED indicator flashes three times: learning successfully completed. Test: after the above operation , the receiver board can be controlled by the remote control . More transmitters with different IDs can be learned and stored additionally, starting with step 2. A mixture of different modes is possible. Note: Short antenna for transmitter module Long antenna for receive module

Product Features

  • Antenna for 433Mhz RF module, short antenna for transmitter module, long antenna for receive module.
  • Antenna for 433Mhz RF module, short antenna for transmitter module, long antenna for receive module.
  • Transmitter Module Transmitting Power: 11dbm, distance: 20-100, emission current: 10MA, customizable special code: MCU type.
  • Button Usage (sets mode and starts pairing process): Press Once: Inching mode (Momentary Mode) Press Twice: self-Lock Mode (Toggle-Mode of the 4 Channels) Press Three Times: interlocked mode (selected channel active and be cleared, if another channel becomes active).
  • Applications: Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains etc.
