5pcs LM2587 DC-DC Boost Converter 3-30V Step Up 4-35V Power Supply Módulos Max 5a
5pcs LM2587 DC-DC Boost Converter 3-30V Step Up 4-35V Power Supply Módulos Max 5a

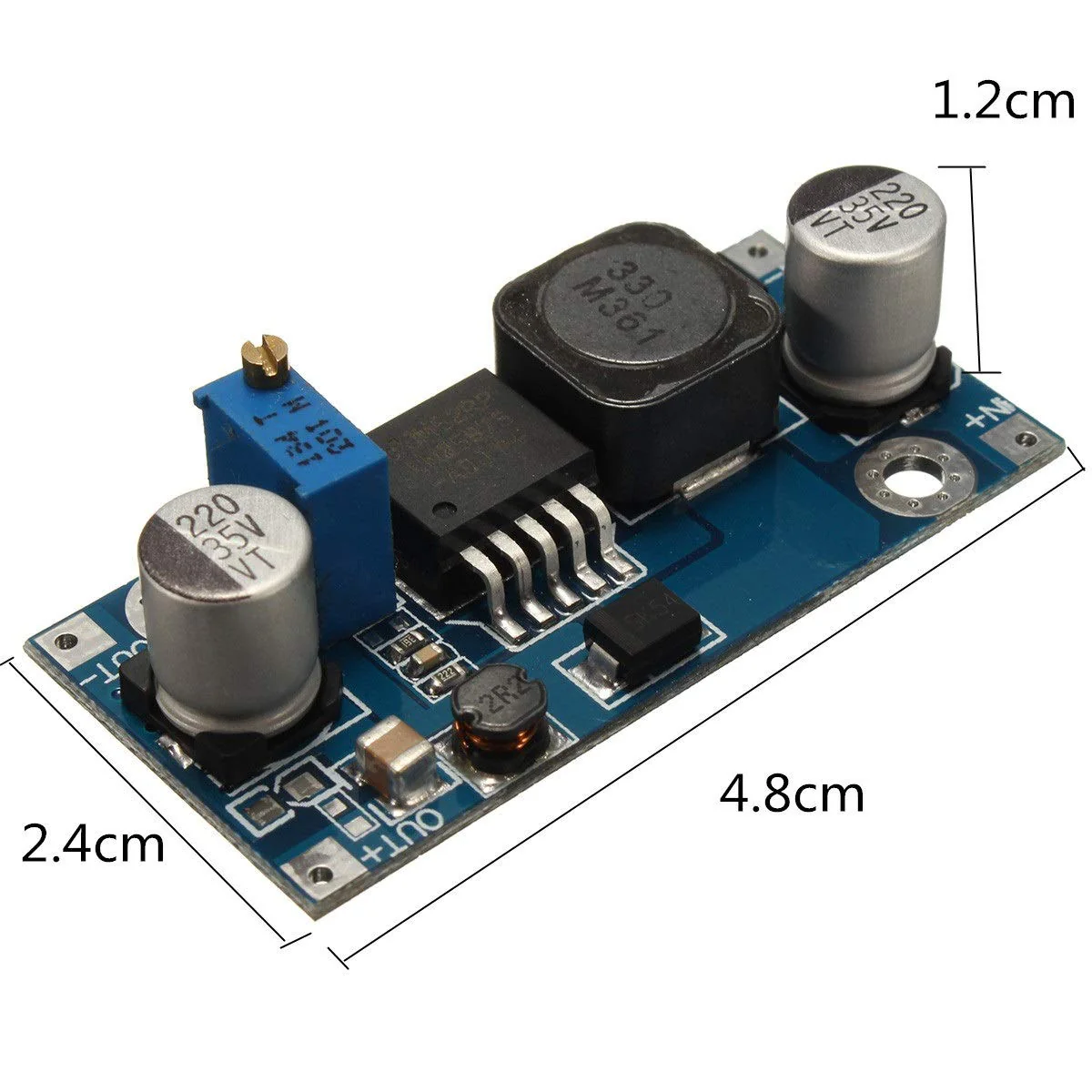

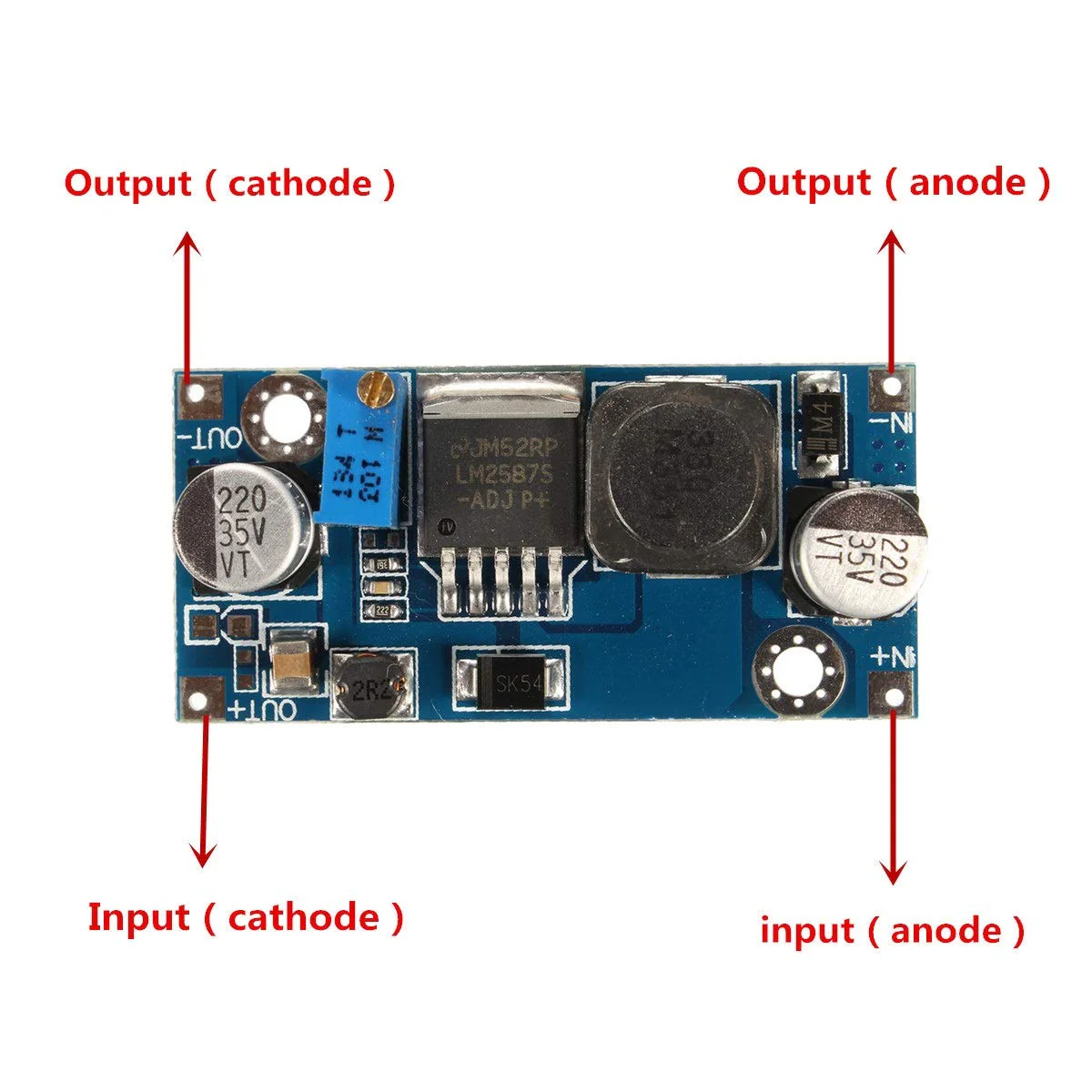

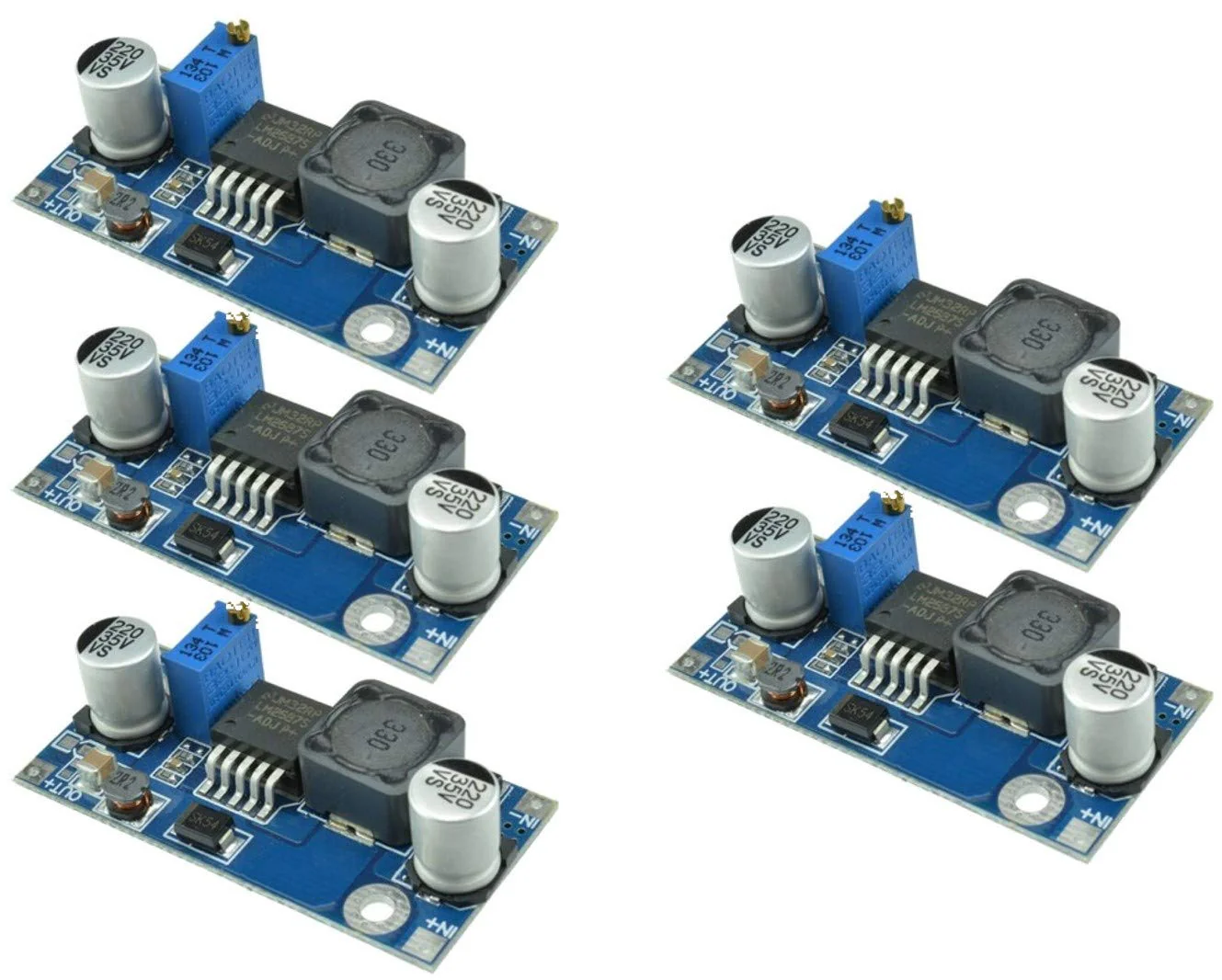

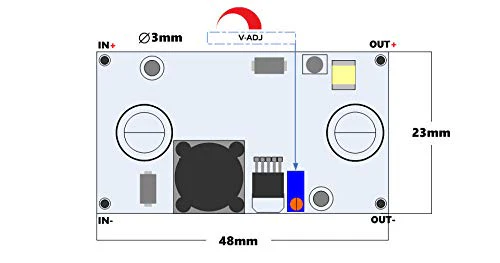

x5pcs LM2587 DC-DC Boost Converter 3-30V Step up to 4-35V Power Supply Module MAX 5A. Module properties: non-isolated step-up module(Boost). Rectification: Non-Synchronous Rectification Input voltage: DC 3-30 V (note: the boost module input voltage can not be higher than the output voltage, the output stable at the set value) Output voltage: DC 4-35V. Output current: 5A MAX, (15mA unload). Conversion efficiency: 92% (max). Switching frequency: 100KHz. Output ripple: 50mV (max). Load regulation: ± 0.5%. Voltage regulation: ± 0.5%. Operating temperature: -40°C to +85°C. Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease). Dimensions: 48 x 23 x 14 mm ( 1 7/8 x 15/16 x 9/16 in ) Package contents: 5pcs x LM2587 DC-DC Boost Converter.
Product Features
- LM2587: LM2587 DC-DC Boost Converter 3-30V Step up to 4-35V Power Supply Module MAX 5A.
- Compact DesignInput voltage: DC 3-30V (Note: the input voltage of boost module cannot be higher than the output voltage, the output is stable at the set value; Output voltage: DC 4-35V; Output current: 5A max. (15mA discharge)
- High PerformanceConversion Efficiency: 92% (Max); Switching Frequency: 100KHz; Output Ripple: 50mV (Max); Load Control: 0.5%; Voltage Regulation: 0.5%.

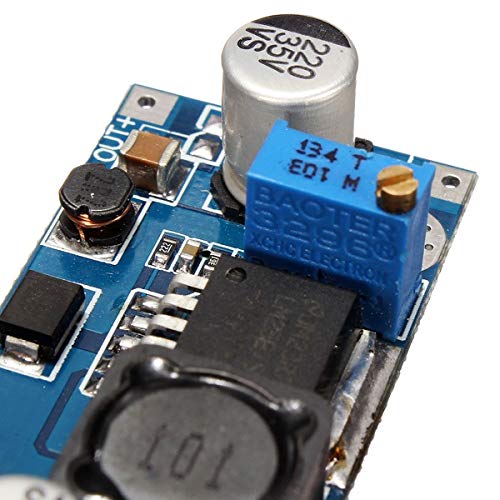

- Easy to use: Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease)
