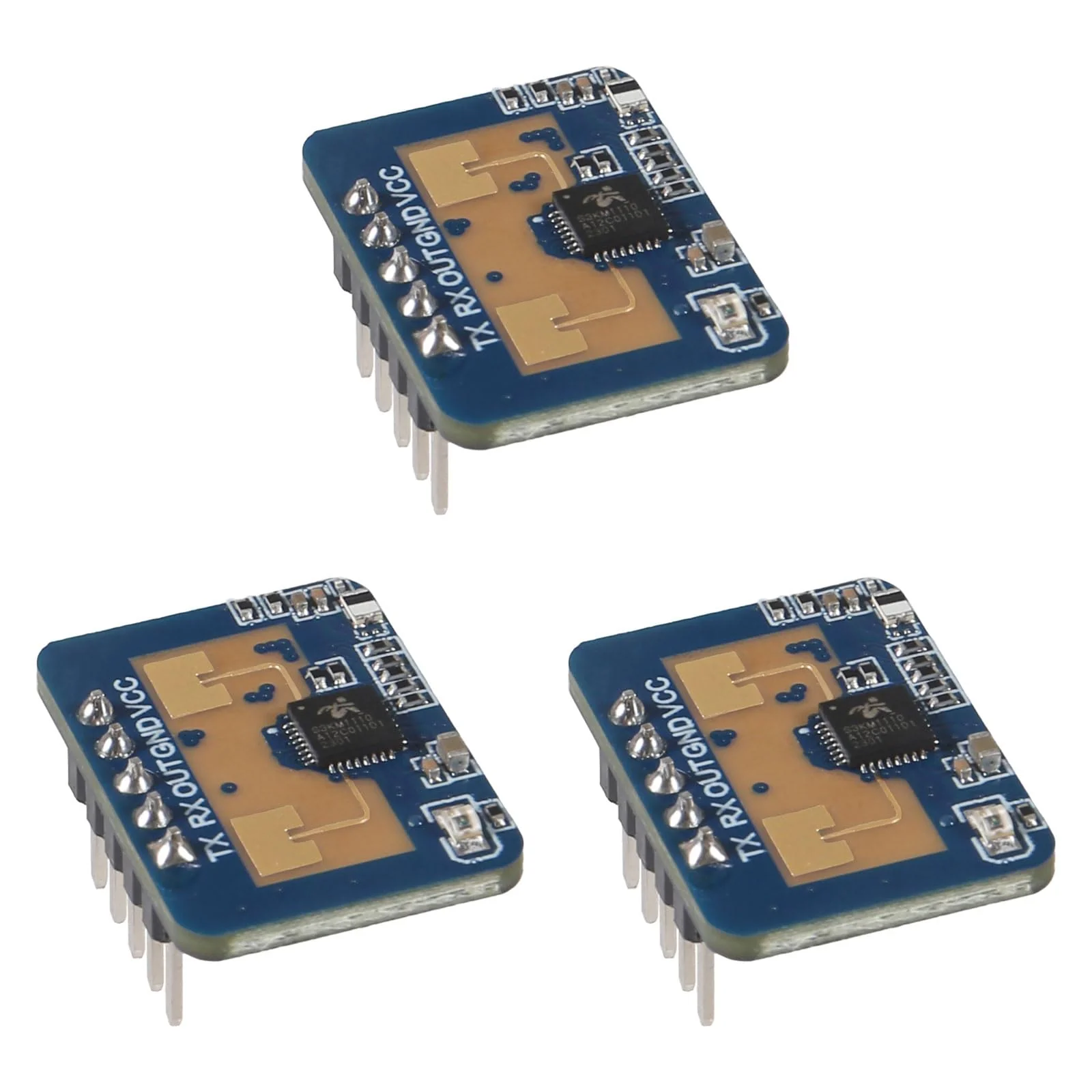

3pcs LD2410C Human Presence Radar Sensor Module HLK-LD2410 Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output
3pcs LD2410C Human Presence Radar Sensor Module HLK-LD2410 Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output
3pcs LD2410C Human Presence Radar Sensor Module HLK-LD2410 Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output

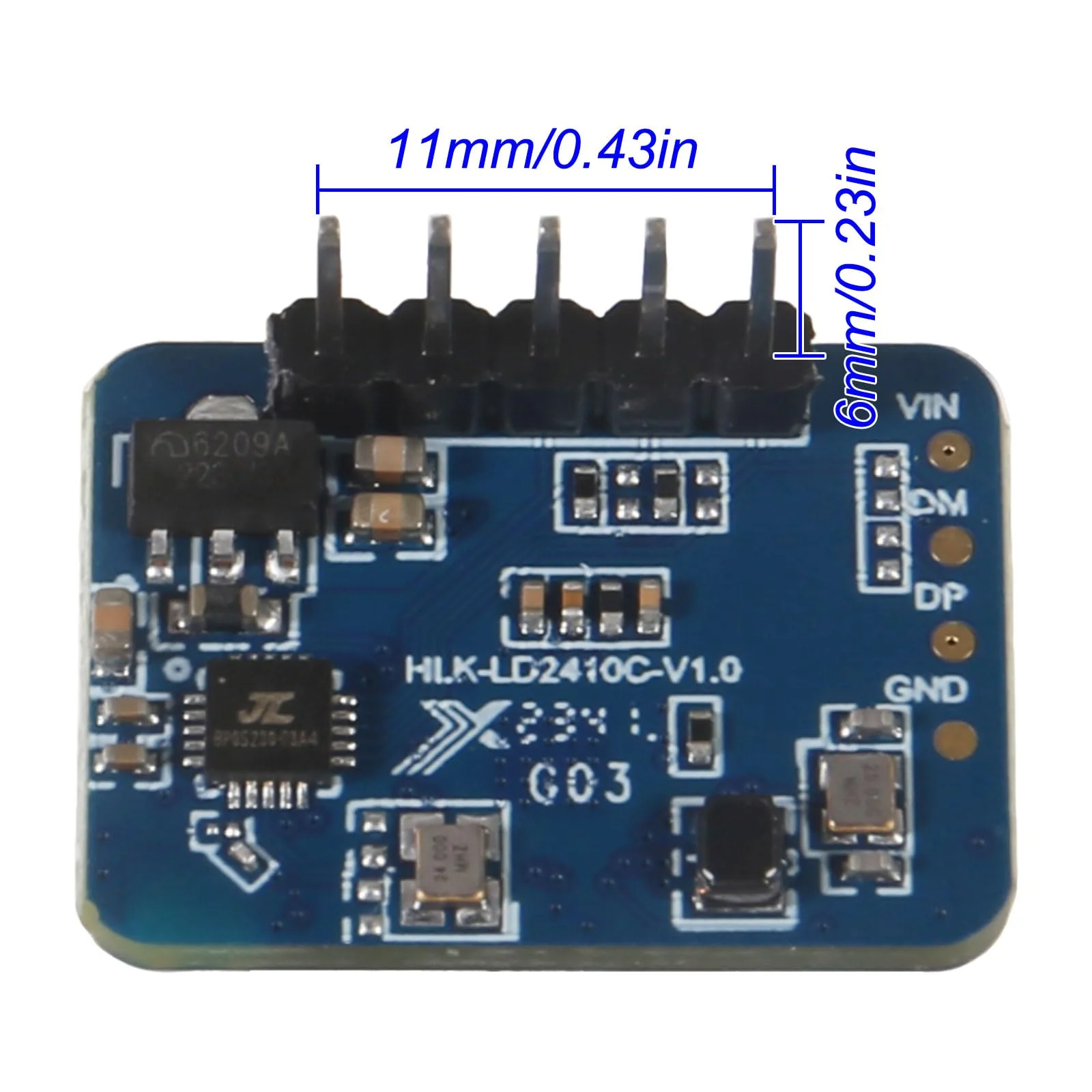

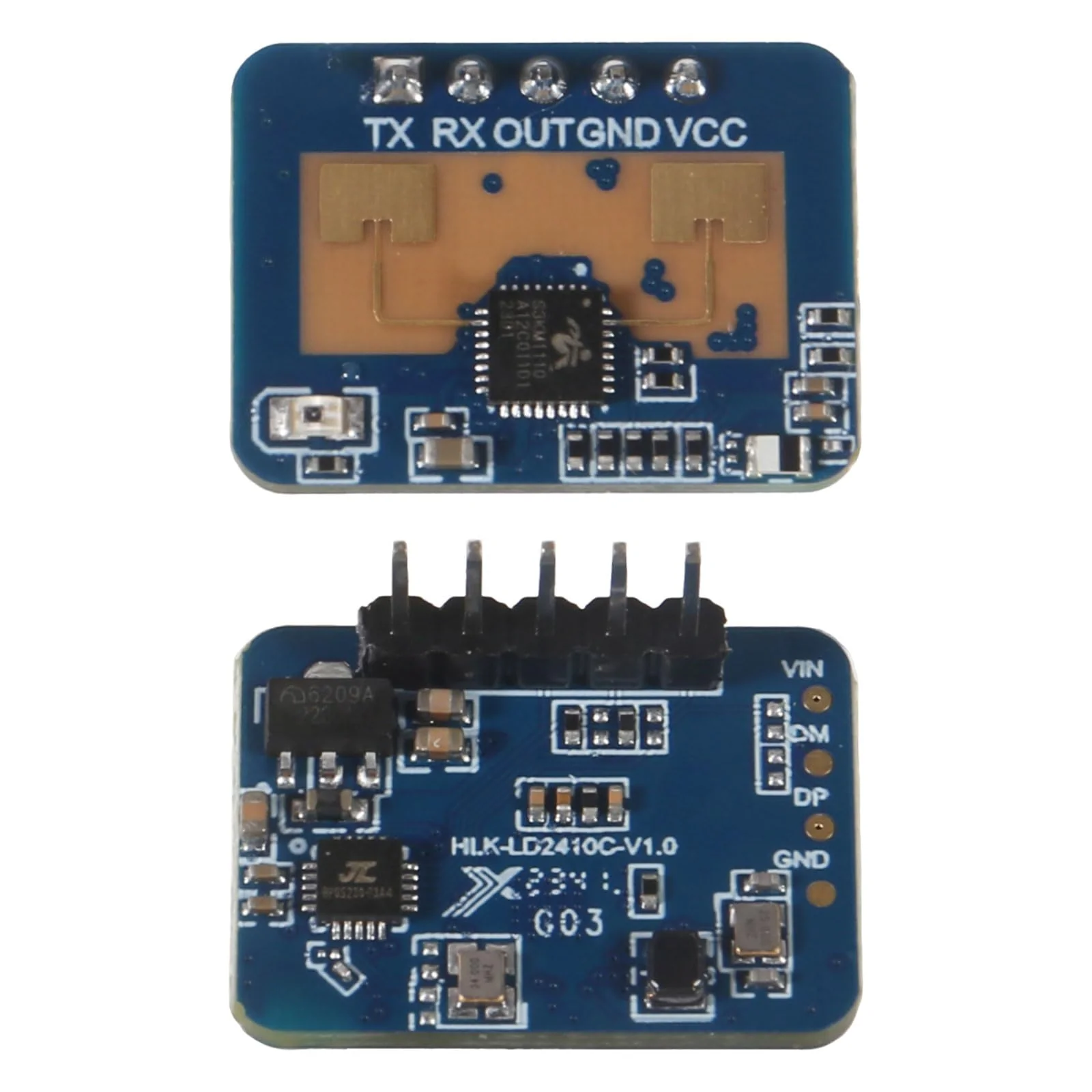

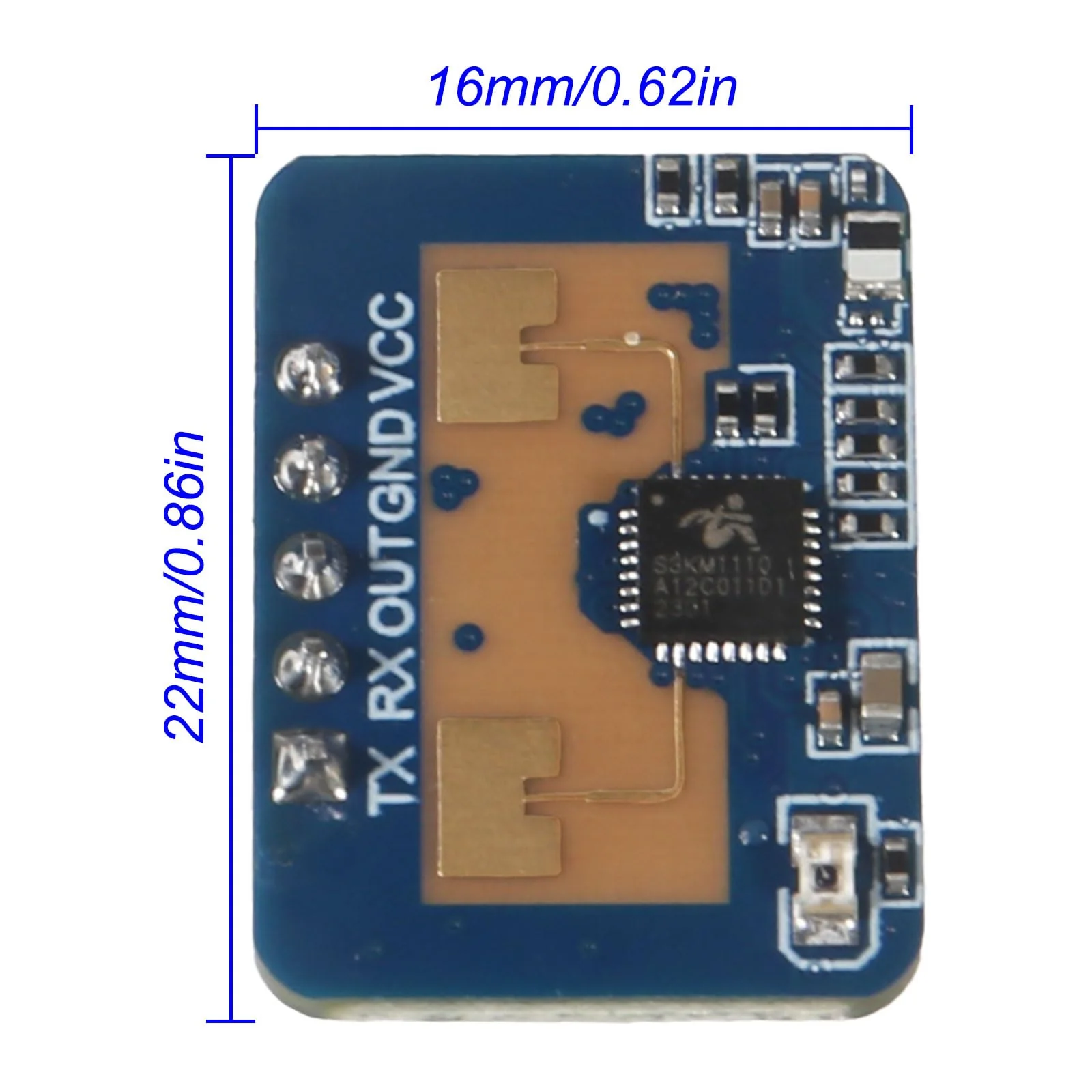

Features:Frequency: 24GHz~24.25GHzModulation Mode: FMCWDetection Distance: 0.75m~6m adjustableDetection Angle: ± 60°Power Supply: 5VCurrent: 79mAOutput Serial Port Level: 3.3VSweep Bandwidth: 250MHzRange Resolution 0.75mAmbient Temperature: - 40℃~+85℃Data Format: serial port ASCII output/high and low level 3.3V&0VModule Size: 16mmx22mm, with 5 pin holes reserved for hardware (factory default pin)The hole diameter of pin hole is 0.9mm, and the distance between bow and foot is 2.54mmInterface Type:RX, serial port receivingTX, serial transmissionOUT, inductive output high levelGND, power groundVCC, power supply input (5V voltage)
Product Features
- 24GHz ISM band, the farthest sensing distance is up to 5 meters, the detection angle is large, and the coverage range can reach 60 degrees
- Support GPIO and UART output, plug and play, flexible application to different intelligent scenarios and terminal products.
- Multi-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes, visual debugging and configuration tools.
- Accurate identification within the interval, support sensing range division, shielding interference outside the interval.
- Being sensitive to the moving human body, this product can be sensitive to the static, inching, and sitting and lying human body that cannot be recognized by the traditional scheme.
More Images
3pcs LD2410C Human Presence Radar Sensor Module HLK-LD2410 Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output
3pcs LD2410C Human Presence Radar Sensor Module HLK-LD2410 Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output
Features:Frequency: 24GHz~24.25GHzModulation Mode: FMCWDetection Distance: 0.75m~6m adjustableDetection Angle: ± 60°Power Supply: 5VCurrent: 79mAOutput Serial Port Level: 3.3VSweep Bandwidth: 250MHzRange Resolution 0.75mAmbient Temperature: - 40℃~+85℃Data Format: serial port ASCII output/high and low level 3.3V&0VModule Size: 16mmx22mm, with 5 pin holes reserved for hardware (factory default pin)The hole diameter of pin hole is 0.9mm, and the distance between bow and foot is 2.54mmInterface Type:RX, serial port receivingTX, serial transmissionOUT, inductive output high levelGND, power groundVCC, power supply input (5V voltage)
Product Features
- 24GHz ISM band, the farthest sensing distance is up to 5 meters, the detection angle is large, and the coverage range can reach 60 degrees
- Support GPIO and UART output, plug and play, flexible application to different intelligent scenarios and terminal products.
- Multi-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes, visual debugging and configuration tools.
- Accurate identification within the interval, support sensing range division, shielding interference outside the interval.
- Being sensitive to the moving human body, this product can be sensitive to the static, inching, and sitting and lying human body that cannot be recognized by the traditional scheme.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
3pcs LD2410C Human Presence Radar Sensor Module HLK-LD2410 Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output
Features:Frequency: 24GHz~24.25GHzModulation Mode: FMCWDetection Distance: 0.75m~6m adjustableDetection Angle: ± 60°Power Supply: 5VCurrent: 79mAOutput Serial Port Level: 3.3VSweep Bandwidth: 250MHzRange Resolution 0.75mAmbient Temperature: - 40℃~+85℃Data Format: serial port ASCII output/high and low level 3.3V&0VModule Size: 16mmx22mm, with 5 pin holes reserved for hardware (factory default pin)The hole diameter of pin hole is 0.9mm, and the distance between bow and foot is 2.54mmInterface Type:RX, serial port receivingTX, serial transmissionOUT, inductive output high levelGND, power groundVCC, power supply input (5V voltage)
Product Features
- 24GHz ISM band, the farthest sensing distance is up to 5 meters, the detection angle is large, and the coverage range can reach 60 degrees
- Support GPIO and UART output, plug and play, flexible application to different intelligent scenarios and terminal products.
- Multi-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes, visual debugging and configuration tools.
- Accurate identification within the interval, support sensing range division, shielding interference outside the interval.
- Being sensitive to the moving human body, this product can be sensitive to the static, inching, and sitting and lying human body that cannot be recognized by the traditional scheme.
