36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A/CH 36 channel with display
36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A/CH 36 channel with display
36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A/CH

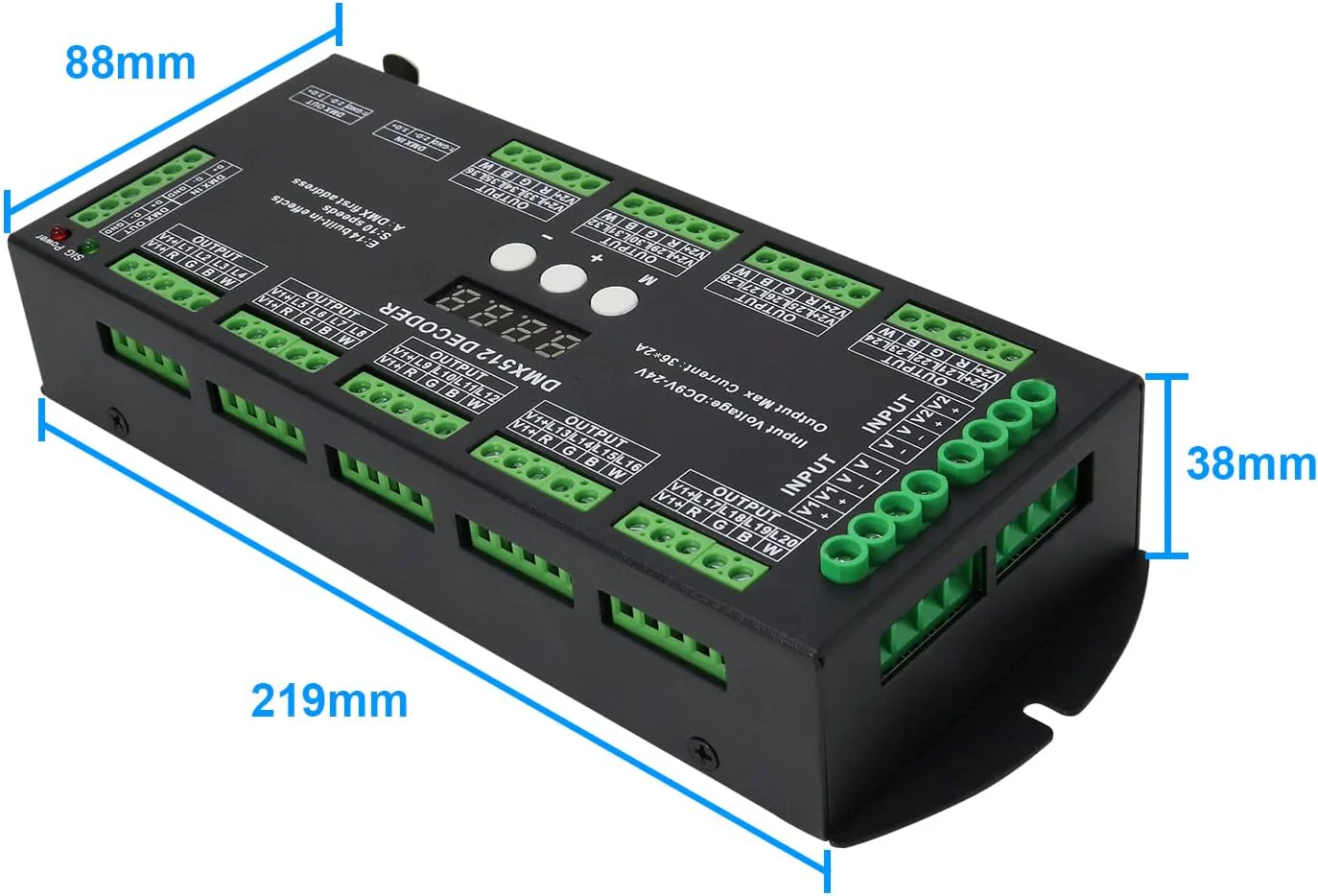

36CH-DMX512 Constant decoder Operation Instruction Welcome to use the 36CH constant decoder, which take advantage of advanced microelectronic control technology.This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals.There are 1~36 output channels；each channel can achieve 256 control levels.This constant decoder is used when DMX512 control equipment control general LED lighting.The decoder comes with 14 kinds of test patterns, 10 levels for rate of change.Products Performance：Input Power：DC9V~DC24V Maximum load current：2A/CHx36Maximum power load：864W（12V）1728W（24V）Output gray level：256Input Signal：DMX512/1990Output signal：36 channels Constant PWM Size：L219xW88xH38MMOutput DMX：36 channels Standard XLR-3 caron plug,terminal Package Measurement：247MMx99MMx50MM Net Weight：619g Gross Weight：738gBasic functions：There are 36 output channels, can connect with single or RGB, RGBW lamps；0-100%dimming output,each channel 256 gray levels； International standard DMX512 input protocol, address code set by button； Wide voltage DC input DC9V~DC24V； Each occupied by 36 DMX address；
Product Features
- There are 36 output channels, can connect with single or RGB,RGBW LED strips;0-100% dimming output, each channel 256 gray levels;2A each channel max 72A

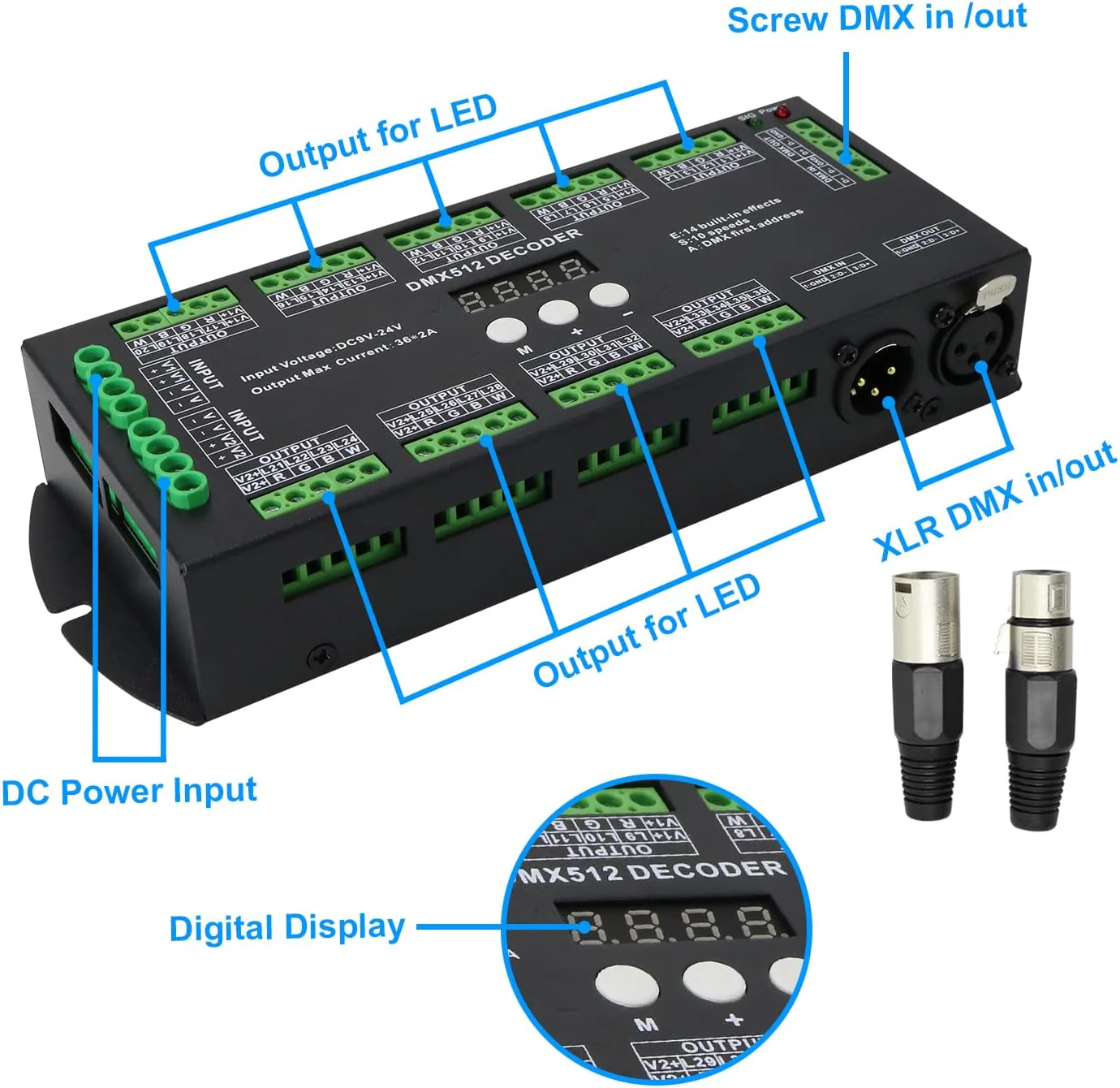

- International standard DMX512 input protocol, address code set by button;Wide voltage DC input DC9V ~ DC24V;Digital Display shows the address code.
- Each occupied by 36 DMX address. The decoder comes with 14 kinds of test patterns, 10 levels for rate of change.
- Maximum power load: 864W (12V) 1728W (24V);Output gray level: 256 ;Input Signal: DMX512/1990;Output signal: 36 channels Constant PWM;Standard XLR-3 caron plug,terminal
- 100% SATISFACTION SERVICE30-day return & 2-year Service. No matter what reason cause dissatisfaction, well send replacement or reimburse you back!
Original: $273.82
-65%$273.82
$95.84More Images
36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A/CH 36 channel with display
36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A/CH
36CH-DMX512 Constant decoder Operation Instruction Welcome to use the 36CH constant decoder, which take advantage of advanced microelectronic control technology.This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals.There are 1~36 output channels；each channel can achieve 256 control levels.This constant decoder is used when DMX512 control equipment control general LED lighting.The decoder comes with 14 kinds of test patterns, 10 levels for rate of change.Products Performance：Input Power：DC9V~DC24V Maximum load current：2A/CHx36Maximum power load：864W（12V）1728W（24V）Output gray level：256Input Signal：DMX512/1990Output signal：36 channels Constant PWM Size：L219xW88xH38MMOutput DMX：36 channels Standard XLR-3 caron plug,terminal Package Measurement：247MMx99MMx50MM Net Weight：619g Gross Weight：738gBasic functions：There are 36 output channels, can connect with single or RGB, RGBW lamps；0-100%dimming output,each channel 256 gray levels； International standard DMX512 input protocol, address code set by button； Wide voltage DC input DC9V~DC24V； Each occupied by 36 DMX address；
Product Features
- There are 36 output channels, can connect with single or RGB,RGBW LED strips;0-100% dimming output, each channel 256 gray levels;2A each channel max 72A
- International standard DMX512 input protocol, address code set by button;Wide voltage DC input DC9V ~ DC24V;Digital Display shows the address code.
- Each occupied by 36 DMX address. The decoder comes with 14 kinds of test patterns, 10 levels for rate of change.
- Maximum power load: 864W (12V) 1728W (24V);Output gray level: 256 ;Input Signal: DMX512/1990;Output signal: 36 channels Constant PWM;Standard XLR-3 caron plug,terminal
- 100% SATISFACTION SERVICE30-day return & 2-year Service. No matter what reason cause dissatisfaction, well send replacement or reimburse you back!
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
36 Channel DMX Decoder,72A RGBW led light dmx controller Digital Display DMX512 Dimmer DC9V-24V 8 Bit 2A/CH
36CH-DMX512 Constant decoder Operation Instruction Welcome to use the 36CH constant decoder, which take advantage of advanced microelectronic control technology.This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals.There are 1~36 output channels；each channel can achieve 256 control levels.This constant decoder is used when DMX512 control equipment control general LED lighting.The decoder comes with 14 kinds of test patterns, 10 levels for rate of change.Products Performance：Input Power：DC9V~DC24V Maximum load current：2A/CHx36Maximum power load：864W（12V）1728W（24V）Output gray level：256Input Signal：DMX512/1990Output signal：36 channels Constant PWM Size：L219xW88xH38MMOutput DMX：36 channels Standard XLR-3 caron plug,terminal Package Measurement：247MMx99MMx50MM Net Weight：619g Gross Weight：738gBasic functions：There are 36 output channels, can connect with single or RGB, RGBW lamps；0-100%dimming output,each channel 256 gray levels； International standard DMX512 input protocol, address code set by button； Wide voltage DC input DC9V~DC24V； Each occupied by 36 DMX address；
Product Features
- There are 36 output channels, can connect with single or RGB,RGBW LED strips;0-100% dimming output, each channel 256 gray levels;2A each channel max 72A
- International standard DMX512 input protocol, address code set by button;Wide voltage DC input DC9V ~ DC24V;Digital Display shows the address code.
- Each occupied by 36 DMX address. The decoder comes with 14 kinds of test patterns, 10 levels for rate of change.
- Maximum power load: 864W (12V) 1728W (24V);Output gray level: 256 ;Input Signal: DMX512/1990;Output signal: 36 channels Constant PWM;Standard XLR-3 caron plug,terminal
- 100% SATISFACTION SERVICE30-day return & 2-year Service. No matter what reason cause dissatisfaction, well send replacement or reimburse you back!
