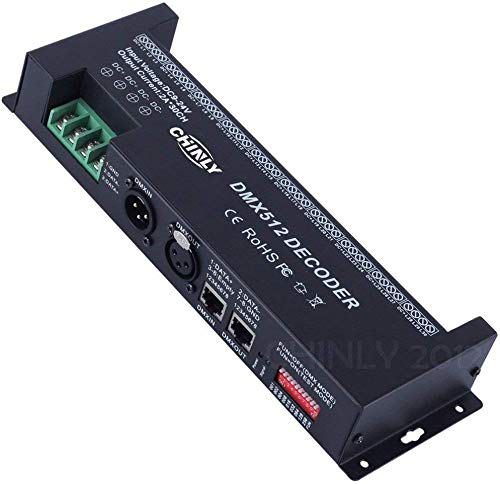

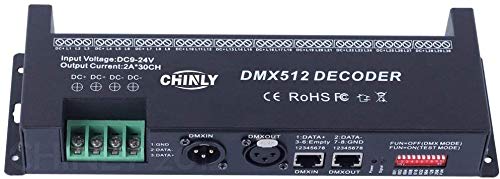

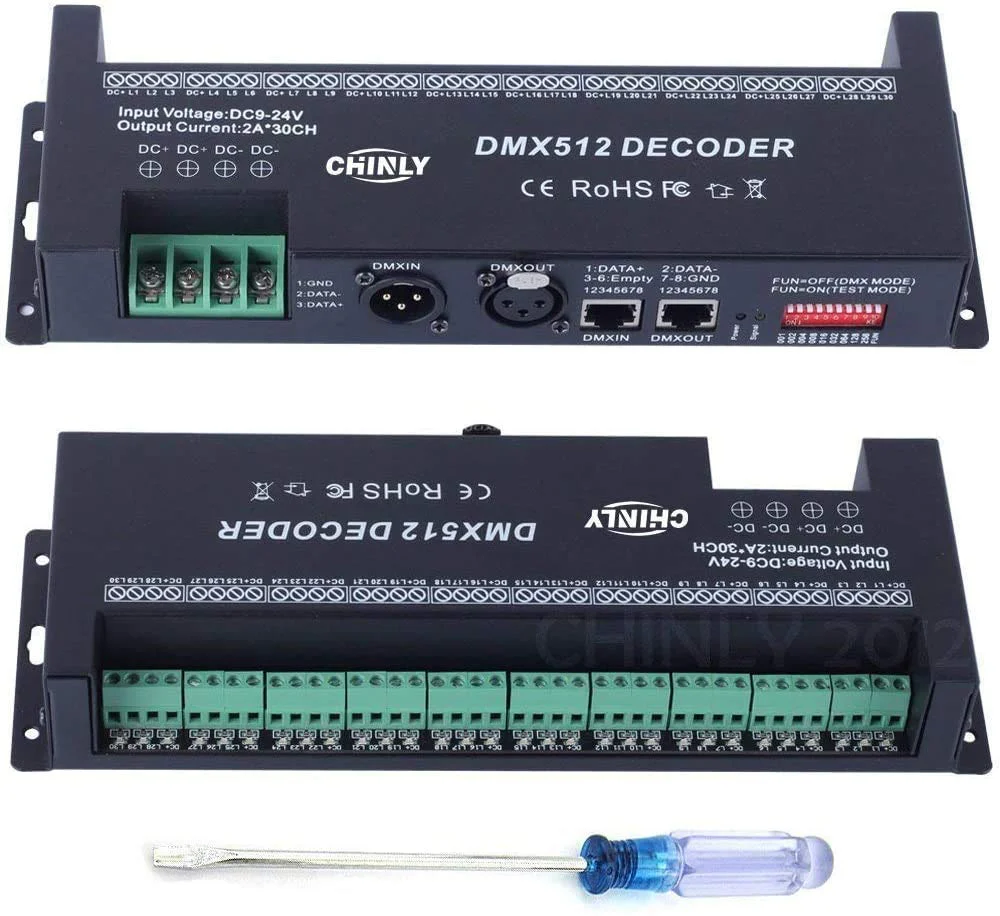

30 Channel DMX decoder 512 RGB LED Strip Controller DMX dimmer DC9V-24V 2A/CH 30 channel

30 Channel DMX decoder 512 RGB LED Strip Controller DMX dimmer DC9V-24V 2A/CH

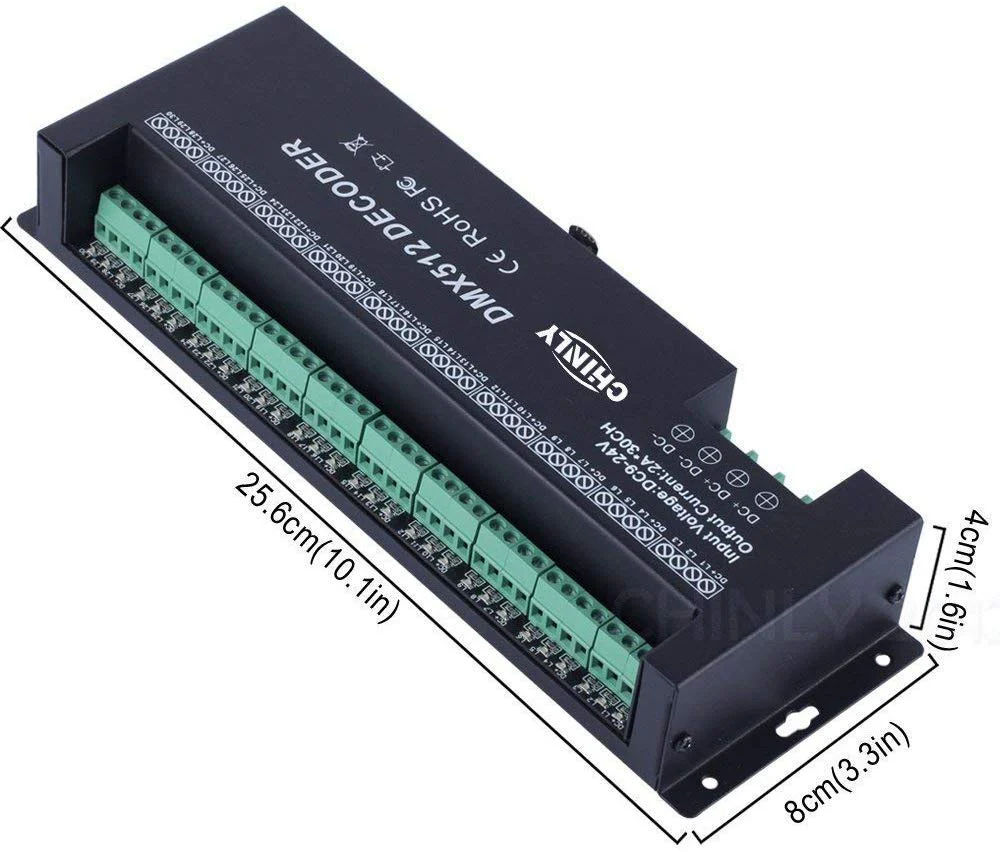

30CH-DMX512 Constant decoder Operation Instruction Welcome to use the 30CH constant decoder, which take advantage of advanced microelectronic control technology. This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals. There are 1 ~ 30 output channels; each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting Products Performance: Input Power: DC9V-DC24V Maximum load current: 2A/CH×30 Maximum power load: 720W (12V) 1440W (24V) Output gray level: 256 Input Signal: DMX512/1990 Output signal: 30 channels Constant PWM Output DMX : 30 channels standard XLR-3 caron plug Engine size: L10.1inW3.3inH1.6in Gross Weight:1.6lb Basic functions: There are 30 output channels, can connect with single or RGB,RGBW lamps 0-100% dimming output, each channel 256 gray levels International standard DMX512 input protocol, address code set by DIP switches; Wide voltage DC input DC9V ~ DC24V; Each occupied by 30 DMX address. Package Included: 1 x DMX 512 Decoder 1 x User Manual

Product Features

• Input Signal: DMX512/1990
• Automatically adapt to DC9V-24V
• 2A each channel max 60A , Maximum power load: 720W (12V) 1440W (24V)
• RGB 30 Channel,8 group, use for LED strip,LED module,LED light
• 100% SATISFACTION SERVICE - No matter what reason cause dissatisfaction, well send replacement or reimburse you back!
