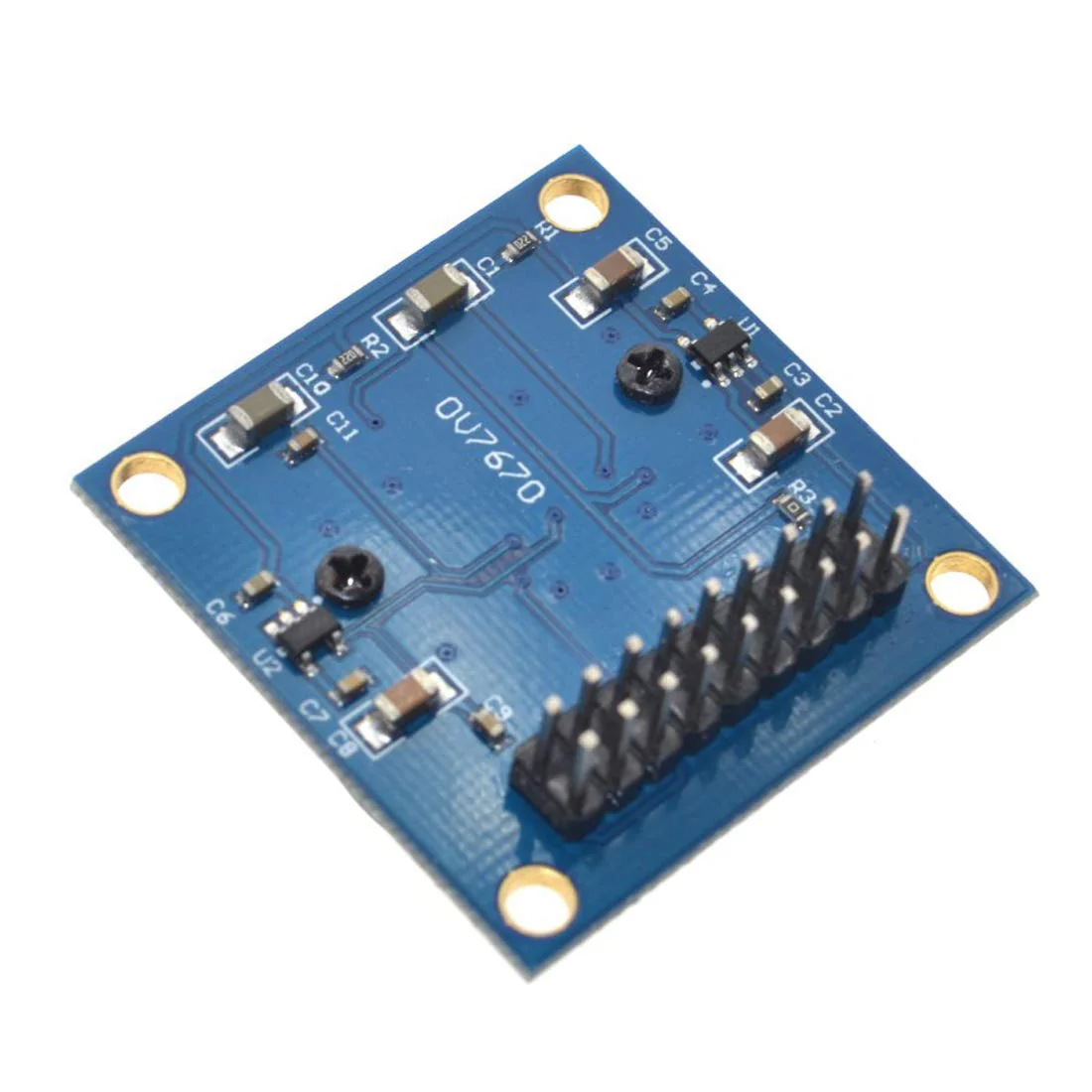

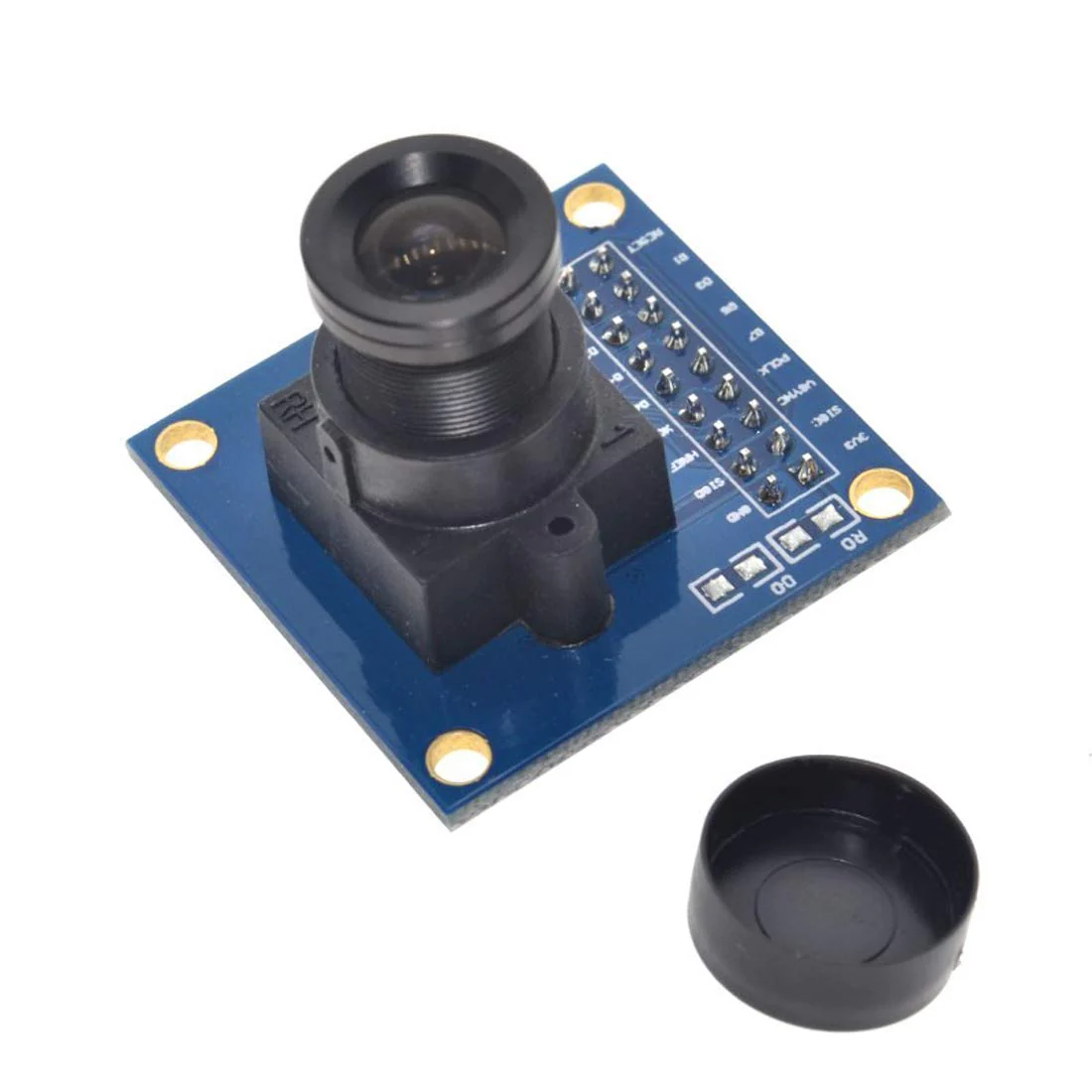

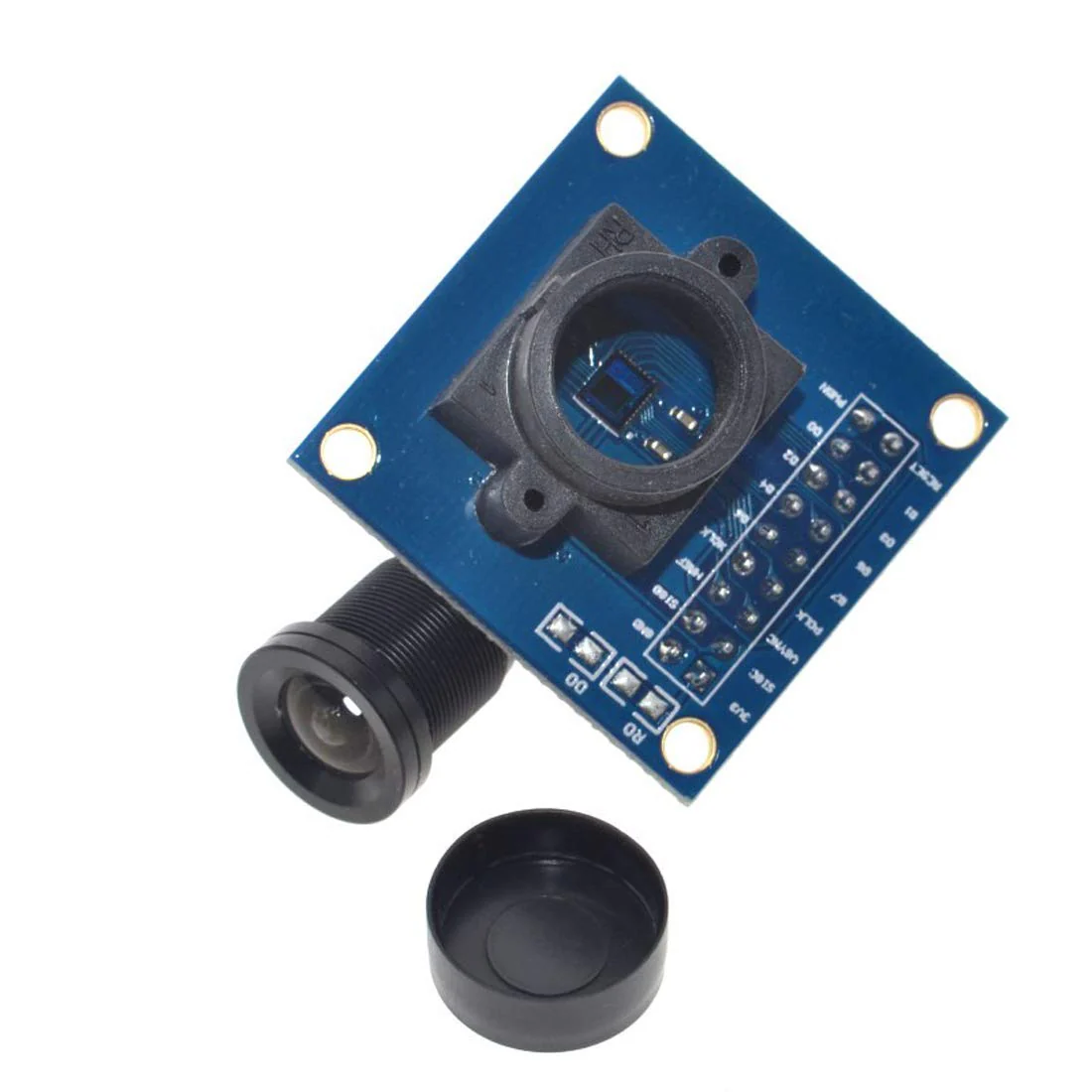

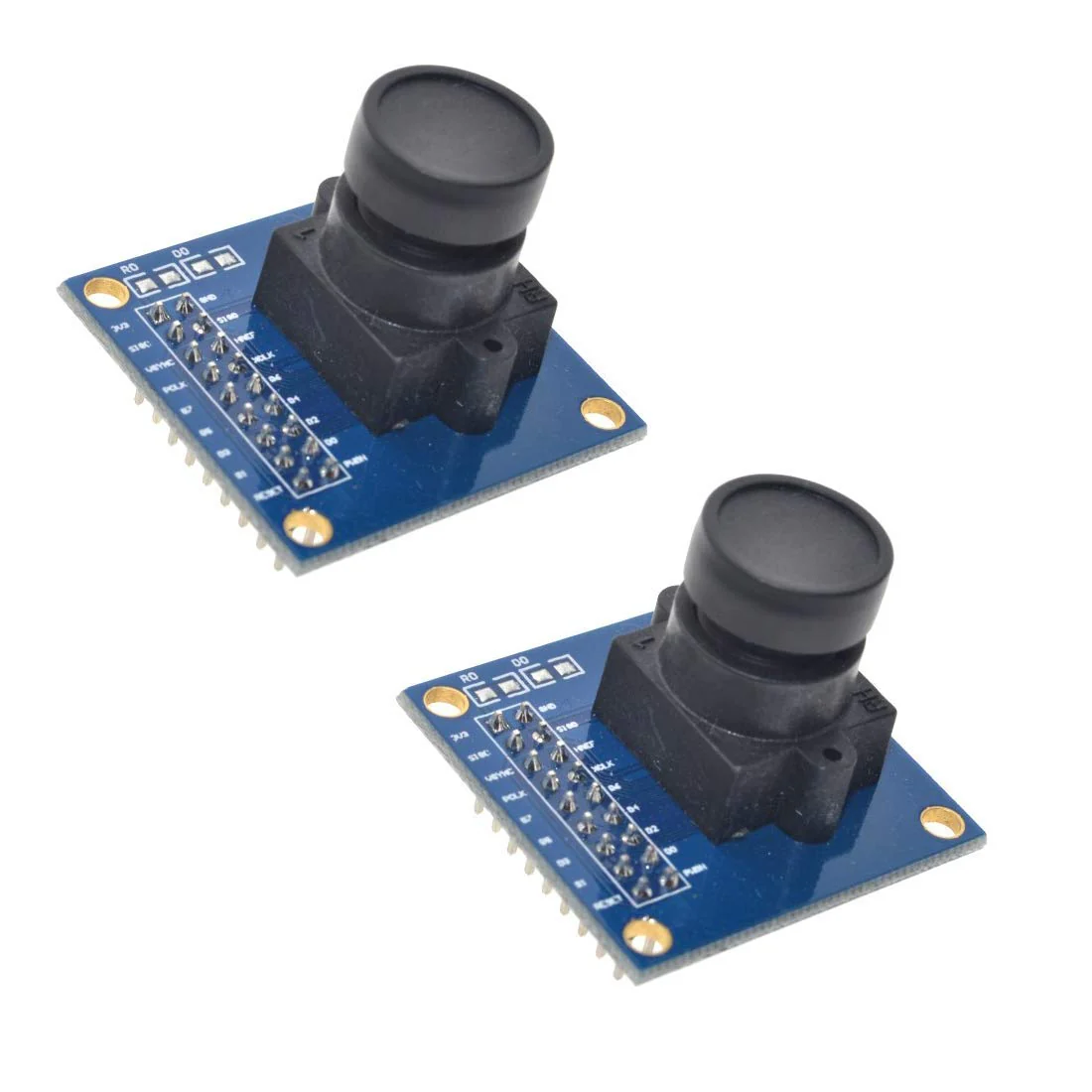

2pcs OV7670 640 x 480 0.3 Mega 300 KP VGA CMOS Camera Module I2C for Arduino ARM FPGA
2pcs OV7670 640 x 480 0.3 Mega 300 KP VGA CMOS Camera Module I2C for Arduino ARM FPGA

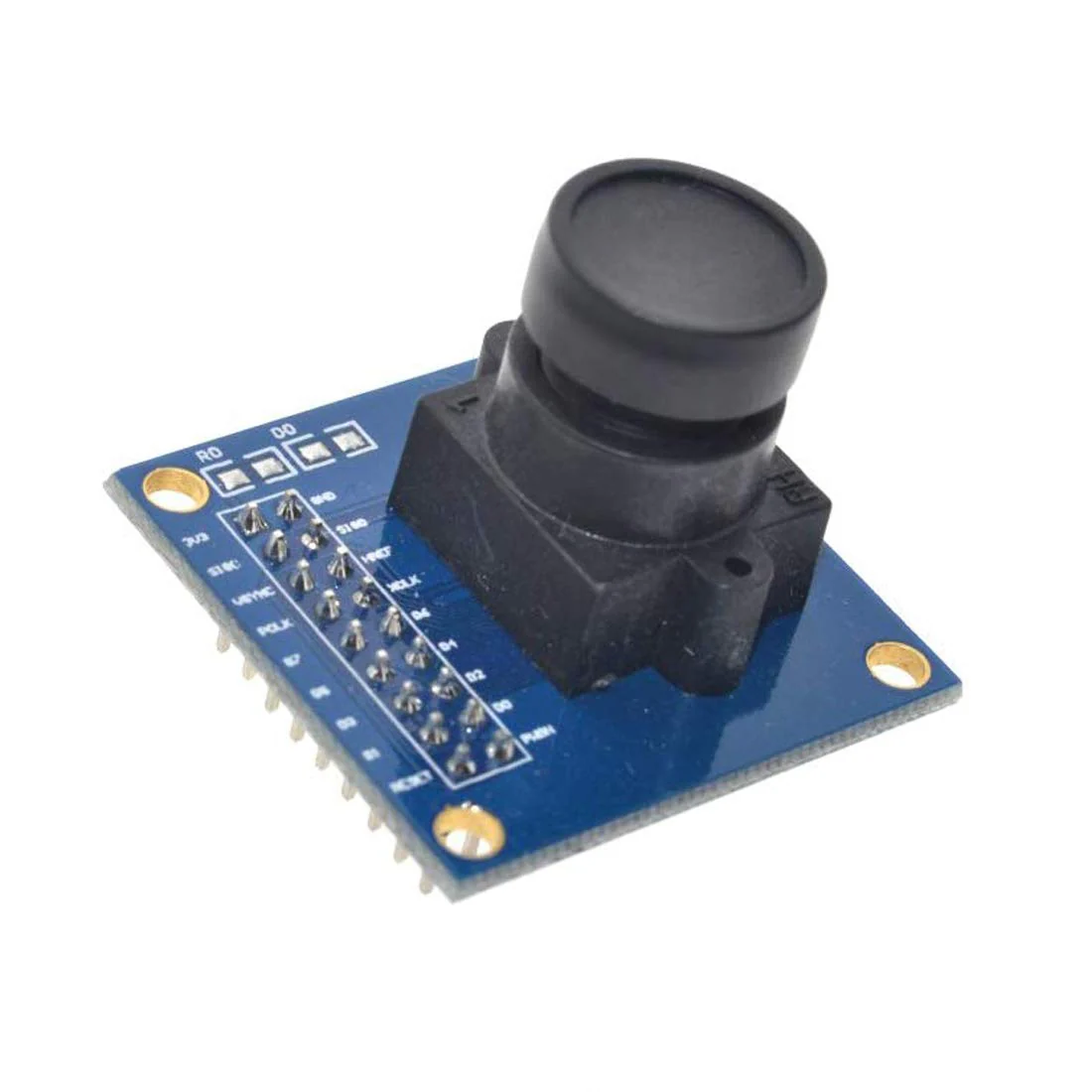

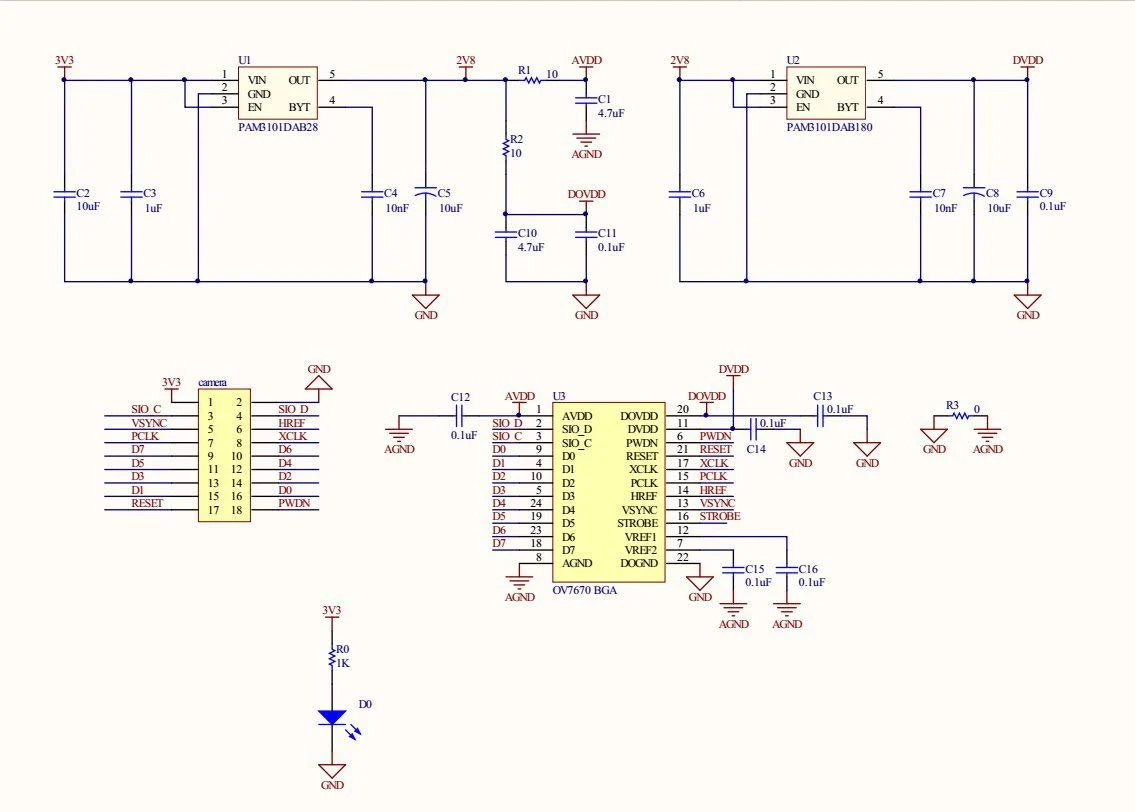

Pin definition: 3V3-----Input voltage (3.3.5V is recommended but not recommended). GDN-----Earth Point SIO_C--control clock of SCCB interface (Note: some low level microcontrollers require pull up control, similar to the I2C interface) SIO_D--- Serial data input side (out) of SCCB interface (Note: some low level microcontrollers need pull up control, similar to I2C interface) VSYNC---Frame synchronization signal (output signal) HREF----Line synchronization signal (output signal) PCLK----Pixel clock (output signal). D0-D7---Data port (output signal) Reset connection (normal use, pull-up). PWDN ----Power consumption selection mode (normal use low) For OV7670 with FIFO, please contact us Key parameters: (1) Photoreceptor Array 640X480; (2) IO voltage 2.5V to 3.0V (internal LDO power supply for the core 1.8V); (3) Power operation 60mW/15fpsVGAYUV; (4) Sleep <20 ° A; (5) Operating temperature - 30 °C to 70 °C. (6) Stable operation 0 to 50; (7) Output format (8-bit)? YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data Light (8) Size 1/6" (9) Field of view 25? (10) Maximum RMS rate 30fps VGA sensitivity 1.3V/(Lux-sec); (11) Signal to noise ratio 46dB; Dynamic range: 52 dB. (13) Browsing mode line by line; (14) Electron exposure 1 line to 510 lines; (15) Pixel area 3.6 μm x 3.6 μm; (16) Dark current 12mV/s at 60°; Box contents: 2 x OV7670 640 x 480 0.3 Mega 300KP VGA CMOS Camera Module
Product Features
- OV7670 640x480 0.3 Mega 300KP VGA CMOS Camera Module
- Resolution: 640 x 480 VGA; Power Operation: 60mW / 15fps VGAYUV
- IO voltage 2.5 V to 3.0 V (internal LDO power supply to core 1.8 V)
- RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
Original: $86.20
-65%$86.20
$30.17More Images
2pcs OV7670 640 x 480 0.3 Mega 300 KP VGA CMOS Camera Module I2C for Arduino ARM FPGA
2pcs OV7670 640 x 480 0.3 Mega 300 KP VGA CMOS Camera Module I2C for Arduino ARM FPGA
Pin definition: 3V3-----Input voltage (3.3.5V is recommended but not recommended). GDN-----Earth Point SIO_C--control clock of SCCB interface (Note: some low level microcontrollers require pull up control, similar to the I2C interface) SIO_D--- Serial data input side (out) of SCCB interface (Note: some low level microcontrollers need pull up control, similar to I2C interface) VSYNC---Frame synchronization signal (output signal) HREF----Line synchronization signal (output signal) PCLK----Pixel clock (output signal). D0-D7---Data port (output signal) Reset connection (normal use, pull-up). PWDN ----Power consumption selection mode (normal use low) For OV7670 with FIFO, please contact us Key parameters: (1) Photoreceptor Array 640X480; (2) IO voltage 2.5V to 3.0V (internal LDO power supply for the core 1.8V); (3) Power operation 60mW/15fpsVGAYUV; (4) Sleep <20 ° A; (5) Operating temperature - 30 °C to 70 °C. (6) Stable operation 0 to 50; (7) Output format (8-bit)? YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data Light (8) Size 1/6" (9) Field of view 25? (10) Maximum RMS rate 30fps VGA sensitivity 1.3V/(Lux-sec); (11) Signal to noise ratio 46dB; Dynamic range: 52 dB. (13) Browsing mode line by line; (14) Electron exposure 1 line to 510 lines; (15) Pixel area 3.6 μm x 3.6 μm; (16) Dark current 12mV/s at 60°; Box contents: 2 x OV7670 640 x 480 0.3 Mega 300KP VGA CMOS Camera Module
Product Features
- OV7670 640x480 0.3 Mega 300KP VGA CMOS Camera Module
- Resolution: 640 x 480 VGA; Power Operation: 60mW / 15fps VGAYUV
- IO voltage 2.5 V to 3.0 V (internal LDO power supply to core 1.8 V)
- RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
2pcs OV7670 640 x 480 0.3 Mega 300 KP VGA CMOS Camera Module I2C for Arduino ARM FPGA
Pin definition: 3V3-----Input voltage (3.3.5V is recommended but not recommended). GDN-----Earth Point SIO_C--control clock of SCCB interface (Note: some low level microcontrollers require pull up control, similar to the I2C interface) SIO_D--- Serial data input side (out) of SCCB interface (Note: some low level microcontrollers need pull up control, similar to I2C interface) VSYNC---Frame synchronization signal (output signal) HREF----Line synchronization signal (output signal) PCLK----Pixel clock (output signal). D0-D7---Data port (output signal) Reset connection (normal use, pull-up). PWDN ----Power consumption selection mode (normal use low) For OV7670 with FIFO, please contact us Key parameters: (1) Photoreceptor Array 640X480; (2) IO voltage 2.5V to 3.0V (internal LDO power supply for the core 1.8V); (3) Power operation 60mW/15fpsVGAYUV; (4) Sleep <20 ° A; (5) Operating temperature - 30 °C to 70 °C. (6) Stable operation 0 to 50; (7) Output format (8-bit)? YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data Light (8) Size 1/6" (9) Field of view 25? (10) Maximum RMS rate 30fps VGA sensitivity 1.3V/(Lux-sec); (11) Signal to noise ratio 46dB; Dynamic range: 52 dB. (13) Browsing mode line by line; (14) Electron exposure 1 line to 510 lines; (15) Pixel area 3.6 μm x 3.6 μm; (16) Dark current 12mV/s at 60°; Box contents: 2 x OV7670 640 x 480 0.3 Mega 300KP VGA CMOS Camera Module
Product Features
- OV7670 640x480 0.3 Mega 300KP VGA CMOS Camera Module
- Resolution: 640 x 480 VGA; Power Operation: 60mW / 15fps VGAYUV
- IO voltage 2.5 V to 3.0 V (internal LDO power supply to core 1.8 V)
- RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
