20pcs Glass Reed Switch Reed Contact Normally Open (N/O) Magnetic Induction Switch (2mm×14mm) with 20pcs Multi-Use Magnetic Sheet Transparent-E383

20pcs Glass Reed Switch Reed Contact Normally Open (N/O) Magnetic Induction Switch (2mm×14mm) with 20pcs Multi-Use Magnetic Sheet

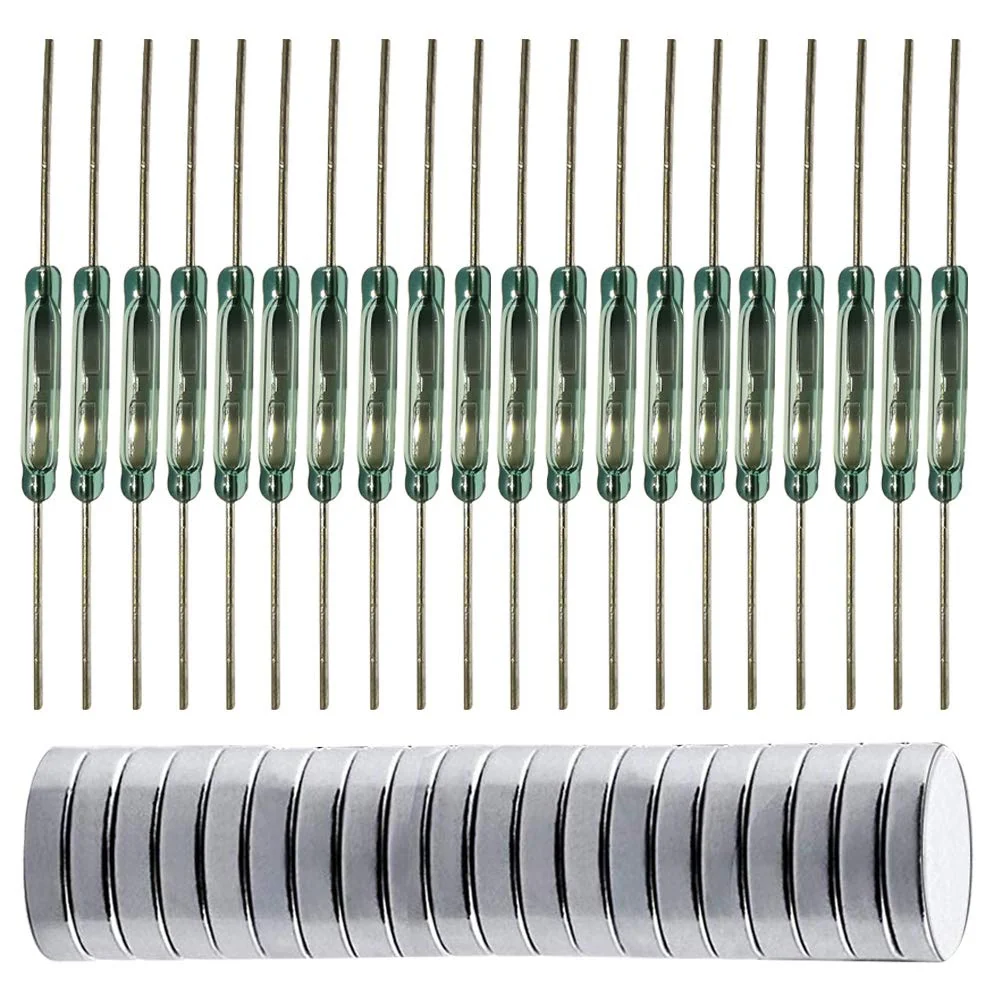

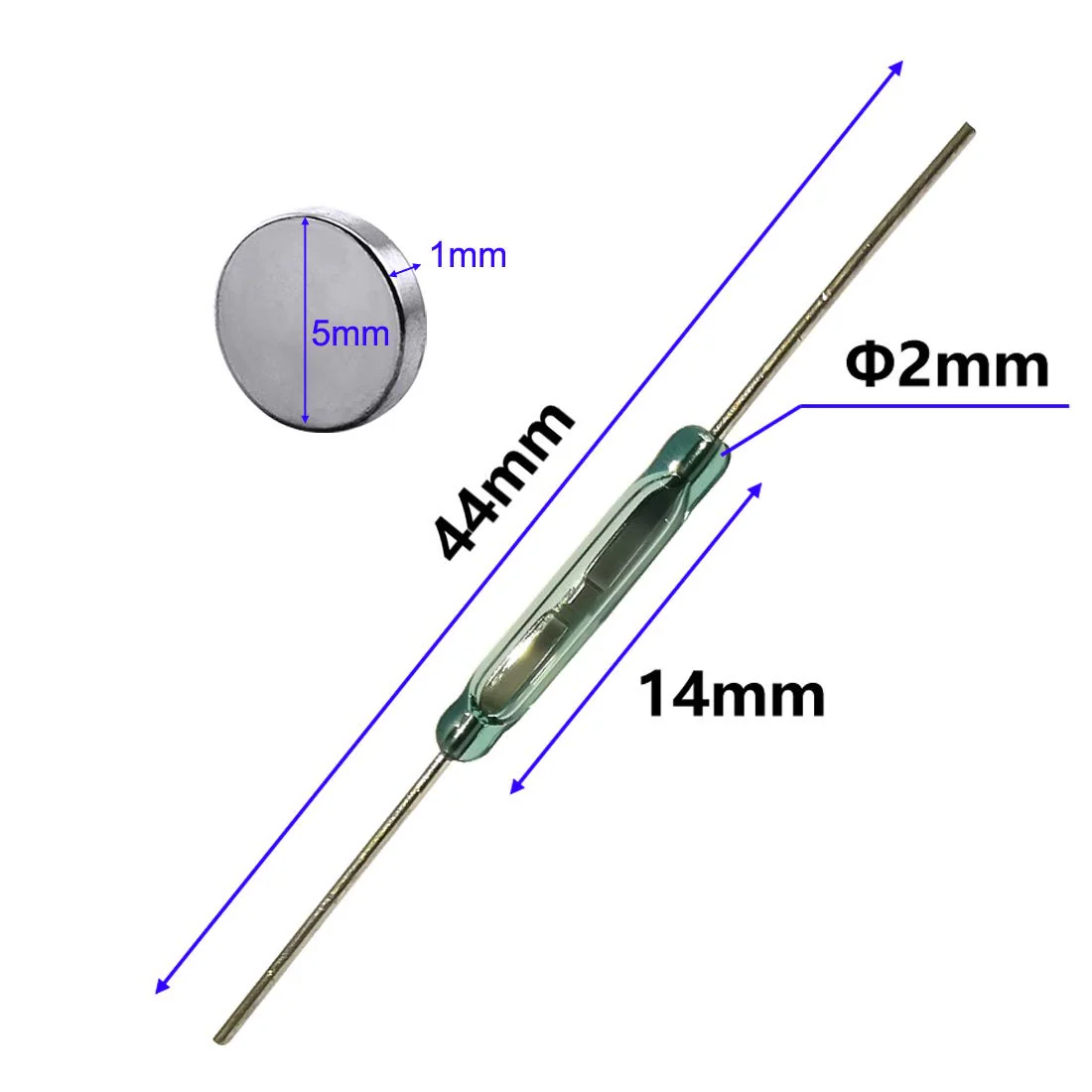

Package included: 20×Glass Reed Switch 20×Multi-Use Round Magnets Specifications: Part Length 14mm Part Diameter 2mm Working temperature: -20 degrees to 80 degrees Maximum power 10W Maximum switching voltage 100VDC Maximum switching current 0.5A Maximum load current 1.0A Maximum contact resistance 100M Minimum insulation resistance 1010 Action time 1.0ms Bounce time 0.6ms Release Time 0.4ms Response frequency 4000Hz Maximum operating frequency 500Hz Sensitive Value 10-15AT Minimum reset Min Value 4FT Maximum contact capacitance 0.7PF Electrical life (load) 108 (5VDC, 10mA) 105 (24VDC, 400mA) Test line circle number/Resistance 870/5000Ω

Product Features

• Dry reed tube compact structure, small weight, can be installed in the extremely limited space, very suitable for miniaturization equipment.
• Sealed in an inert gas atmosphere, never contact with the external environment, long working life.
• Not use sliding components, so there will be no metal fatigue related to the degradation of all metals, to ensure virtually unlimited mechanical life.

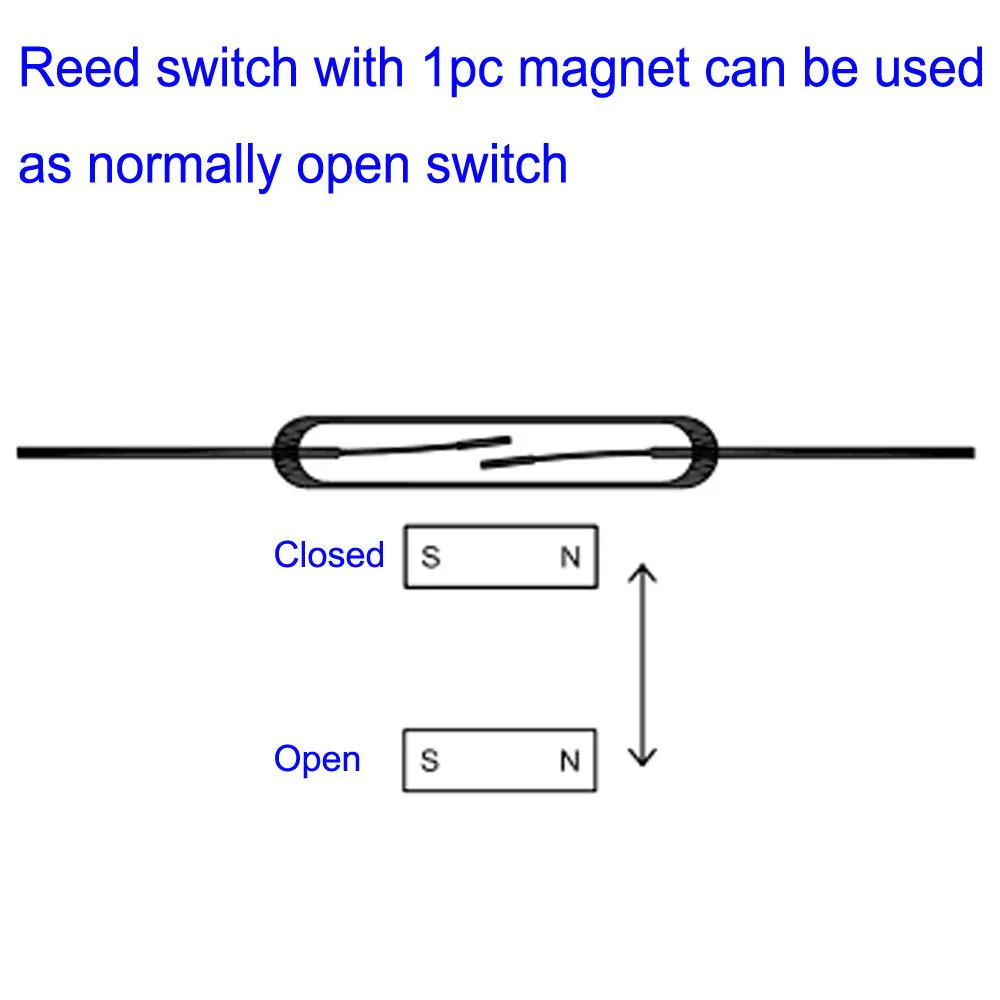

• Reed switch can be used as a sensor, the use of magnetic field signals to control the line switching devices.
• It is well applied in mobile phones, program-controlled switches, photocopiers, washing machines, refrigerators, cameras, disinfection cupboards, door magnets, window magnets, electromagnetic relays, electronic scales, level gauges, gas meters.
