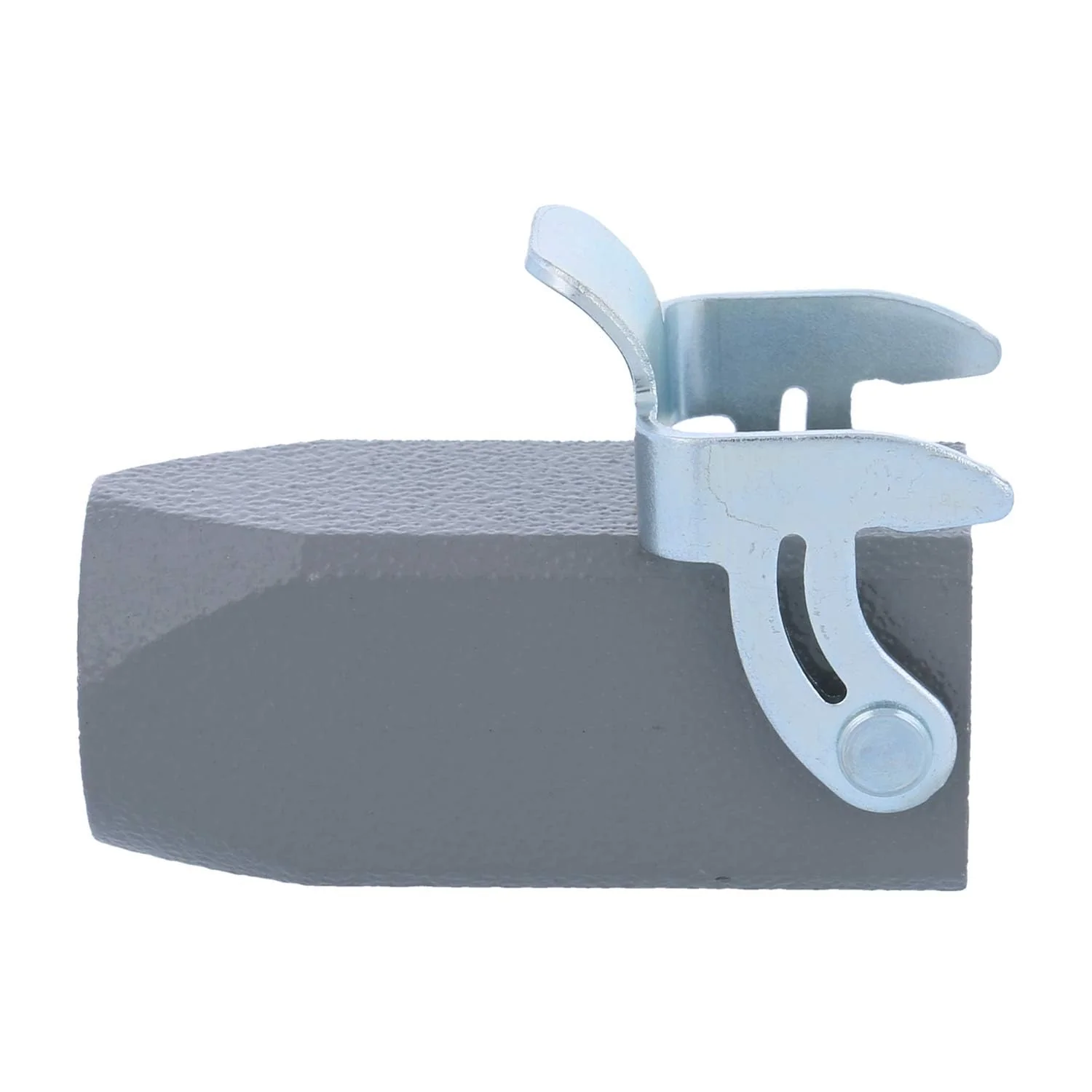

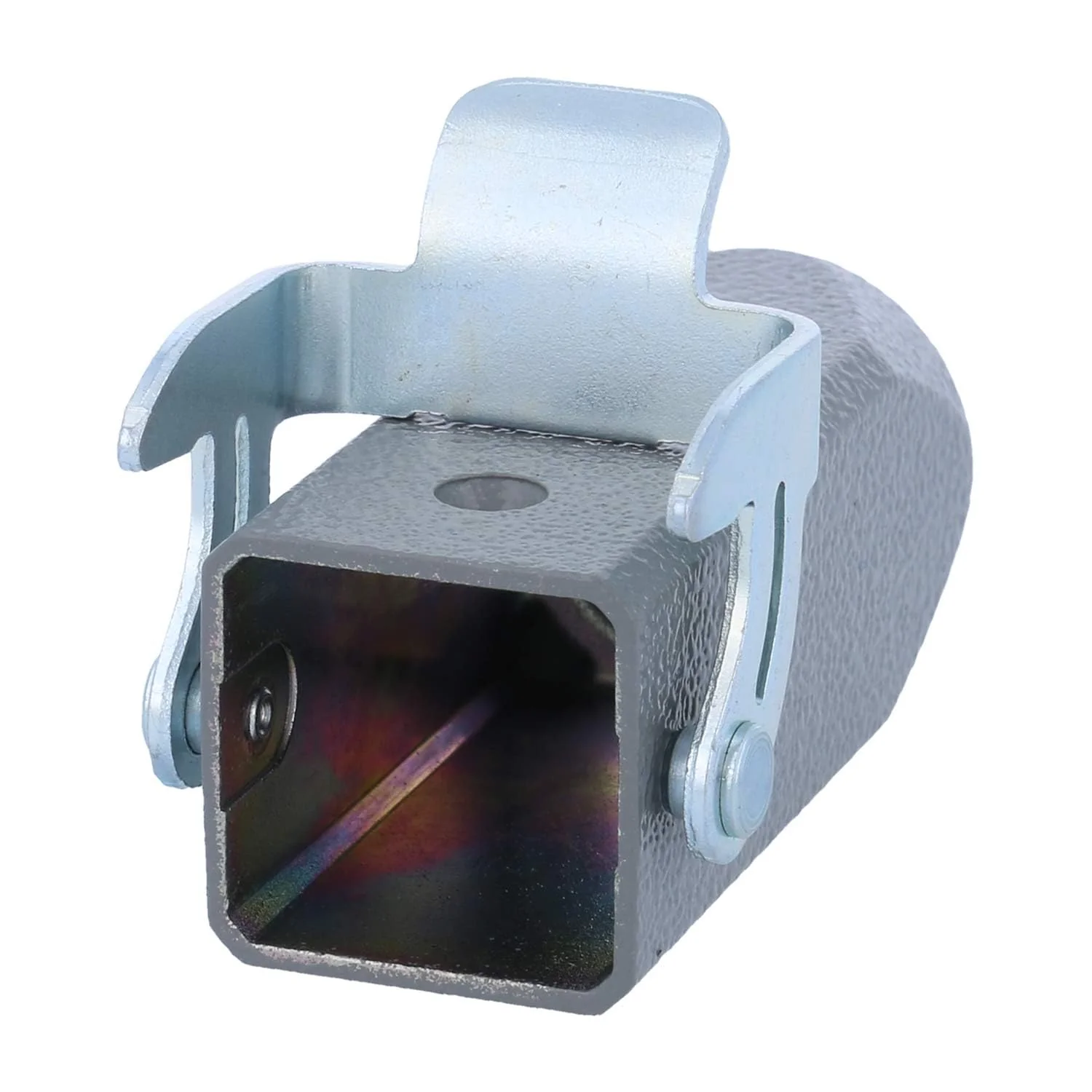

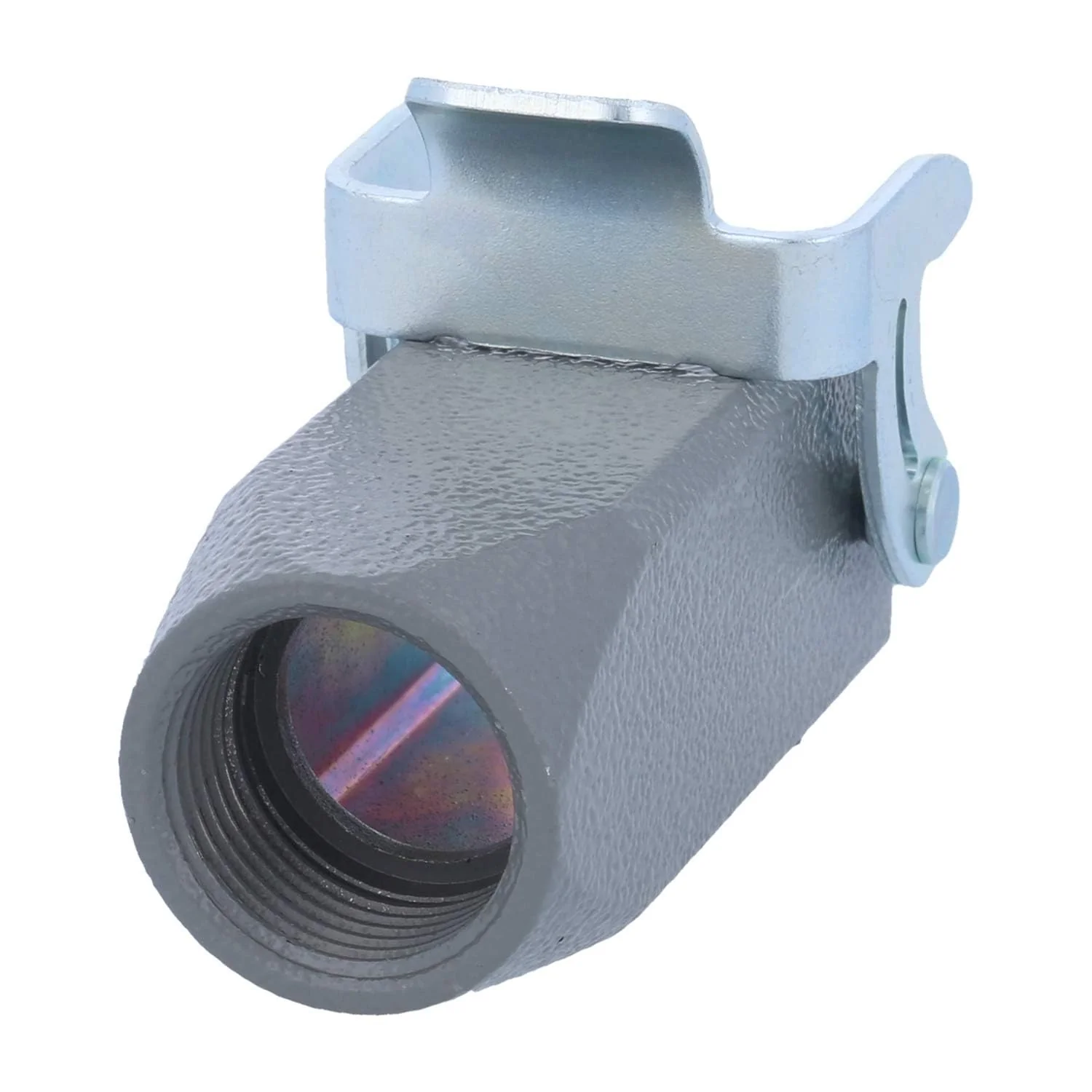

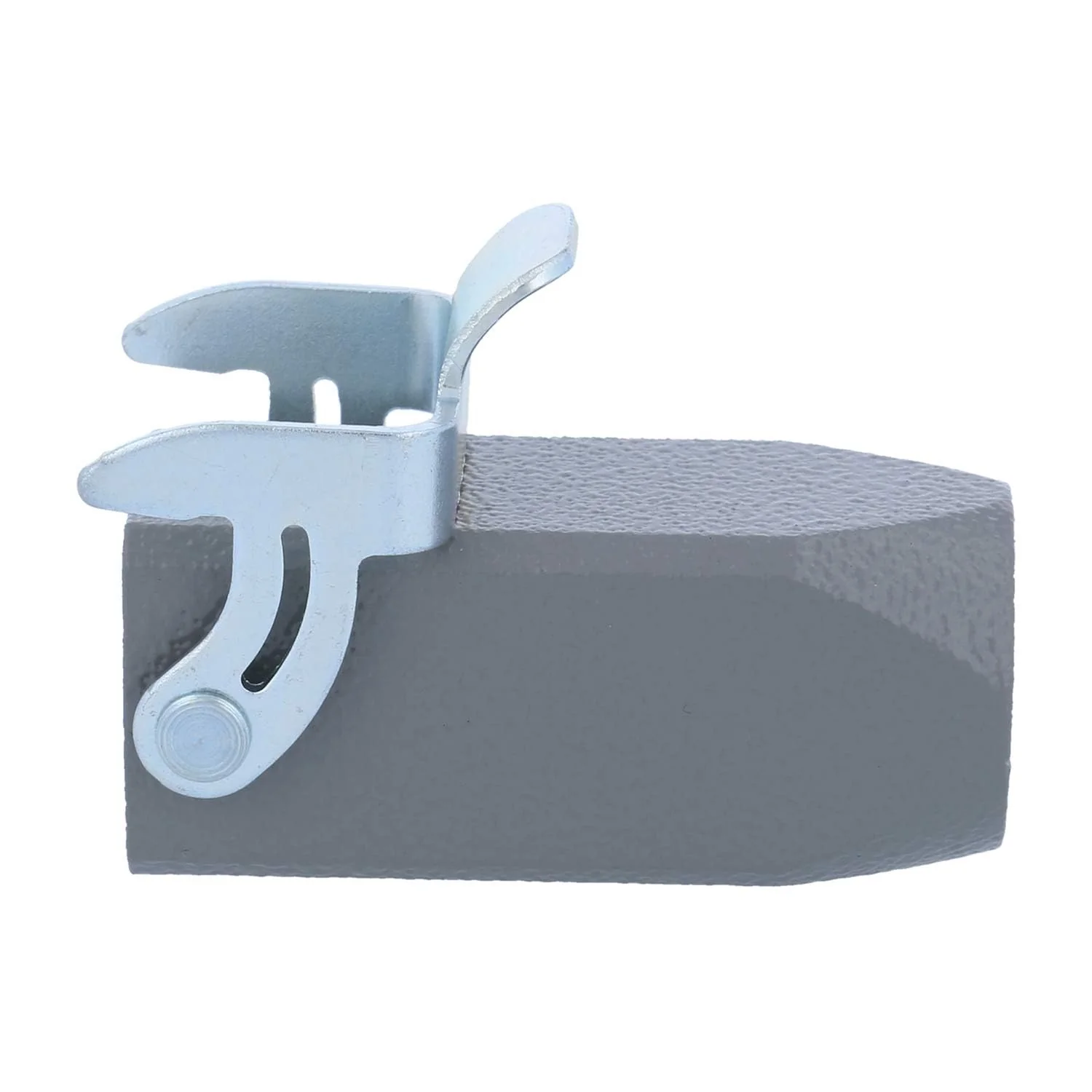

19200031750 Harting Han 3A Coupling Housing 1 x M20 Straight Cable Outlet with 1 Bracket

19200031750 Harting Han 3A Coupling Housing 1 x M20 Straight Cable Outlet with 1 Bracket

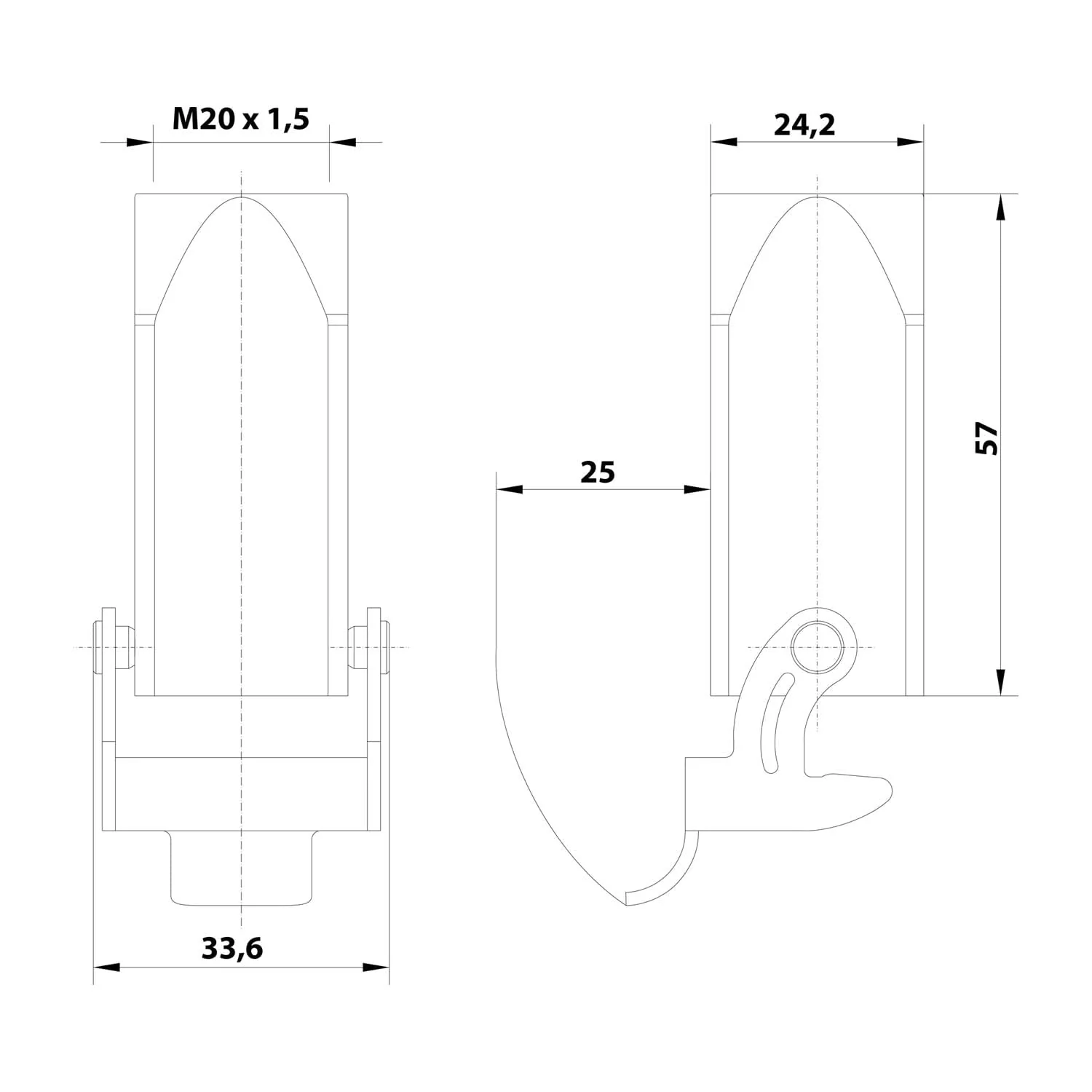

19200031750 Harting Han 3A coupling housing, 1 x M20 straight cable outlet, with 1 bracket screw connection M20 clamping range 7.0 mm - 13.0 mm: type: 3A coupling housing series: with 1 bracket locking type: locking type: shackle locking bracket type: safety bar metal shackle shape: 3A locking bracket quantity: 1 cable OutOutOutOutOutOutOutAng: straight cable outlet, quantity: 1 thread: M20, matching screw connection: M20, screw connection, clamping range: matching screw connection: approx. 7.0 mm - 13.0 mm. Dimensions: length: 57.0 mm. Width: 24.0 mm. Height: 24.0 mm. Temperature range: -40 °C to 125 °C. Protection class: IP44 with special screw (115615). IP67. Protection class NEMA: 4/4X/12. Material: housing: die-cast zinc (GD-Zn). Housing surface: powder-coated. Locking bracket: NNitrile butadiene rubber (NBR) Colour: Colour: dusty grey RAL 7037 Features: - Metal housing for industrial applications. Matching specifications: Han 3A, Harting plug

Product Features

• Screw connection M20 clamping range 7.0 mm - 13.0 mm 1 safety bar metal protection class IP44 with special screw (115615) IP67 screw connection M20 clamping range 7.0 mm - 13.0 mm 1 safety bar metal protection class IP44 with special screw (115615) IP67Han 3A coupling. 1xMyyyy20 straight cable outlets, with 1 bracket screw connection M20, clamping range 7.0 mm - 13.0 mm
• Housing die-cast zinc (GD-Zn) powder coated seal nitrile butadiene rubber (NBR) colour dust grey RAL 7037|housing zinc die-cast (GD-Zn) powder coated seal nitrile butadiene rubber (NBR) colour dust grey RAL 7037Han 3A coupling housing, 1xM20 straight cable outlet, with 1 bracket screw connection M22. 0 0 00 .0 mm - 13.0 mm
• Locking bracket galvanised steel temperature range -40 C to 125 C | locking bracket galvanised steel temperature range -40 C to 125 C Han 3A coupling housing, 1 x M20 straight cable outlet, with 1 bracket screw connection M20 clamping range 7.0 mm - 13.0 mm
• Han 3A coupling housing, 1 x M20 straight cable outlet, with 1 bracket screw connection M20, clamping range 7.0 mm - 13.0 mm
• Piece by piece immediately from stock | Individual sets as desired | Piece by piece immediately from stock | Individual sets according to your desired Han 3A coupling housing, 1 x M20 straight cable outlet, with 1 bracket screw connection M20 clamping range 7.0 mm - 13.0 mm
