10PCS DB9 Female Ethernet Adapter, 9 Pin Serial Port Female to RJ45 Ethernet LAN Extend Modular Converter, F/F
10PCS DB9 Female Ethernet Adapter, 9 Pin Serial Port Female to RJ45 Ethernet LAN Extend Modular Converter, F/F
10PCS DB9 Female Ethernet Adapter, 9 Pin Serial Port Female to RJ45 Ethernet LAN Extend Modular Converter, F/F

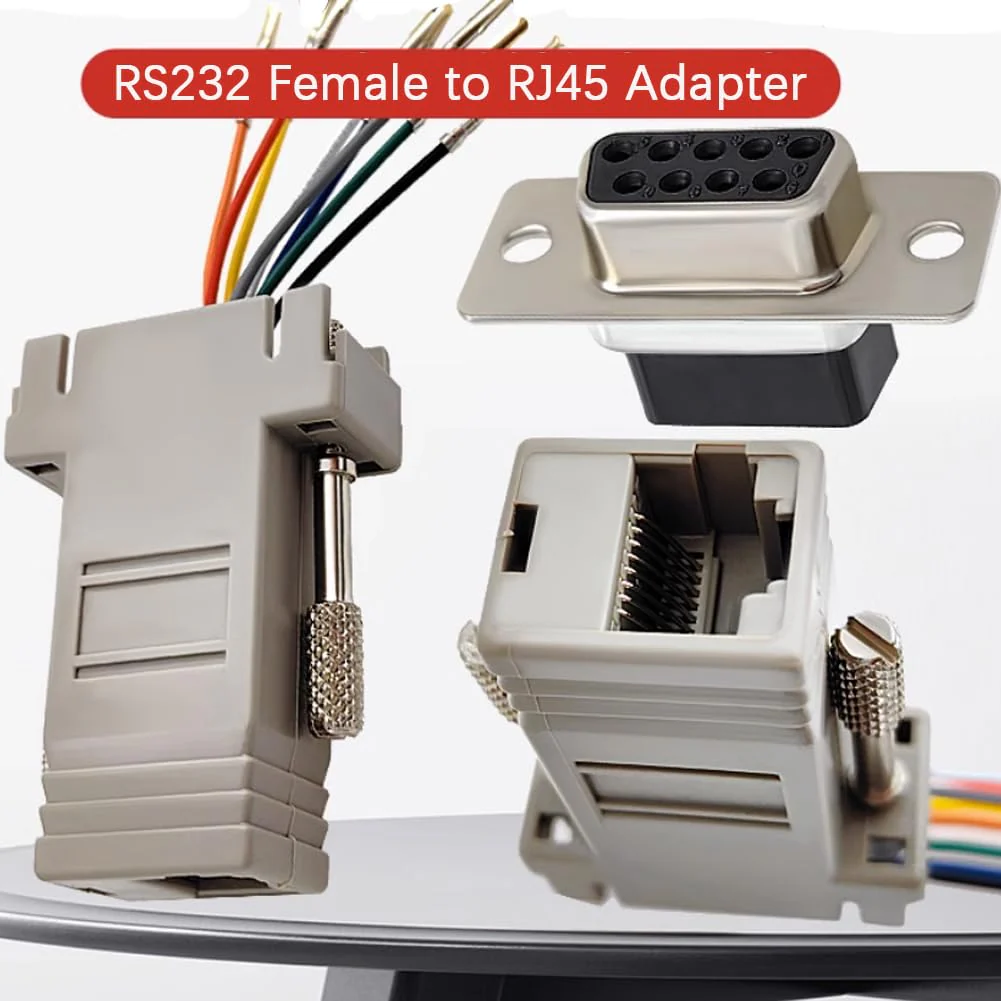

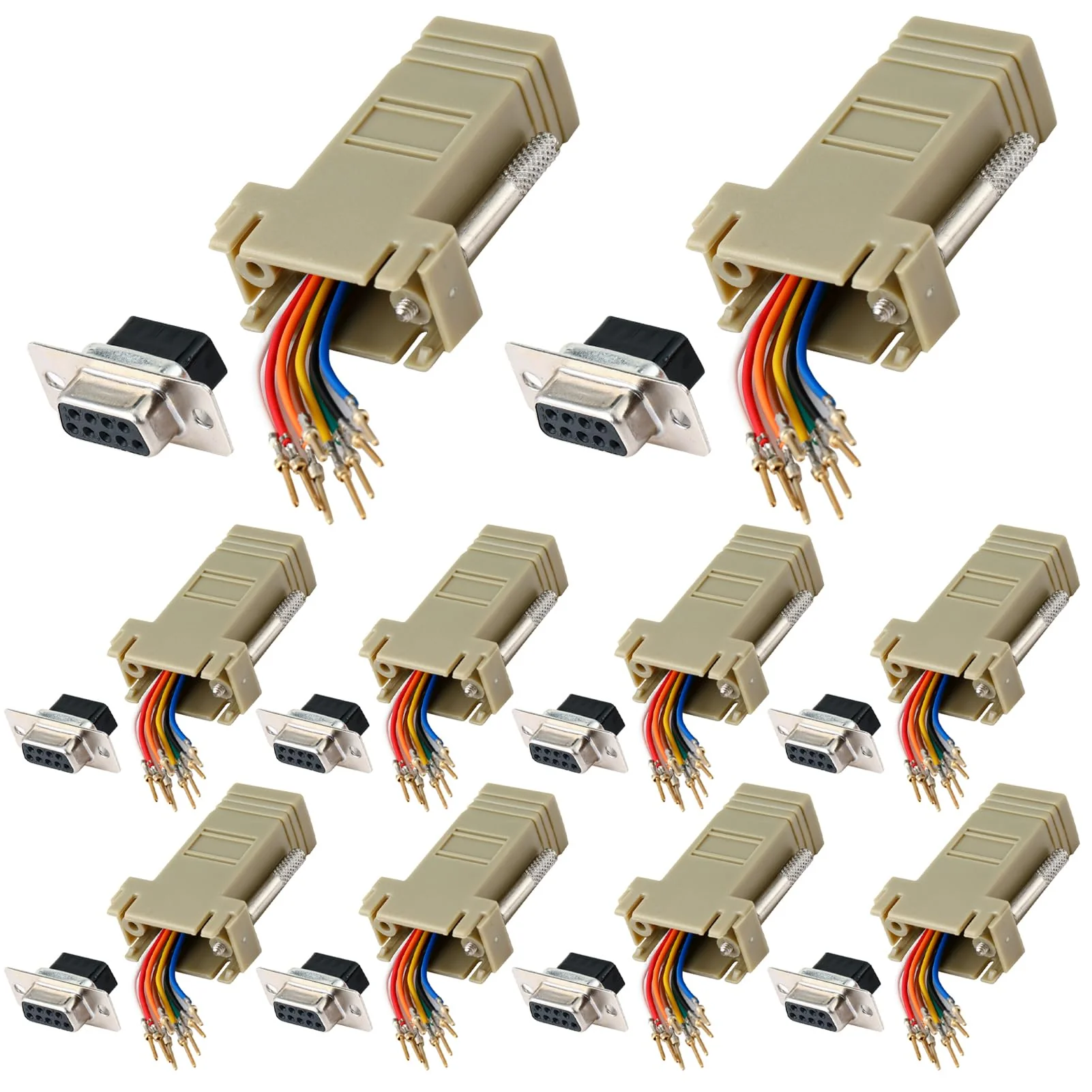

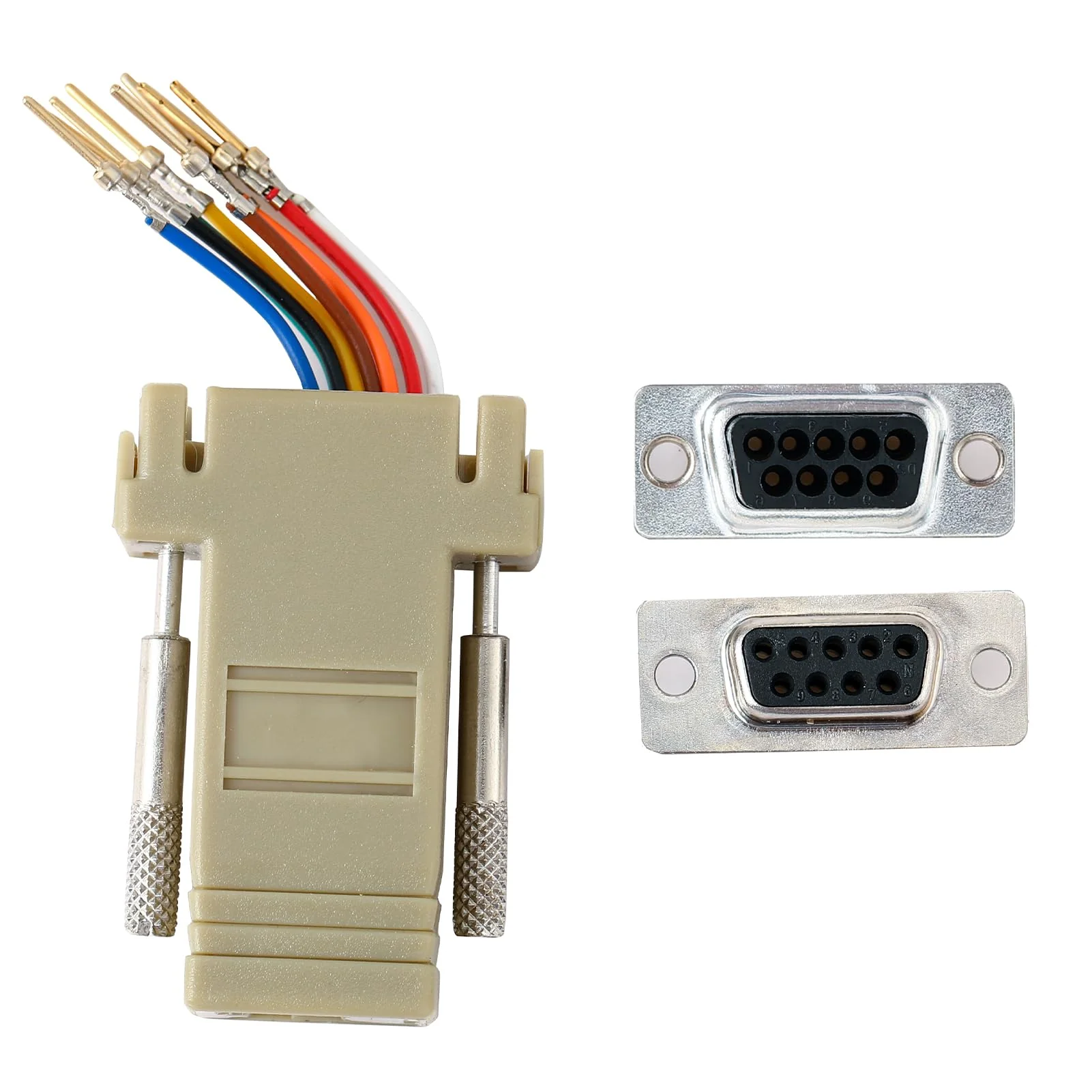

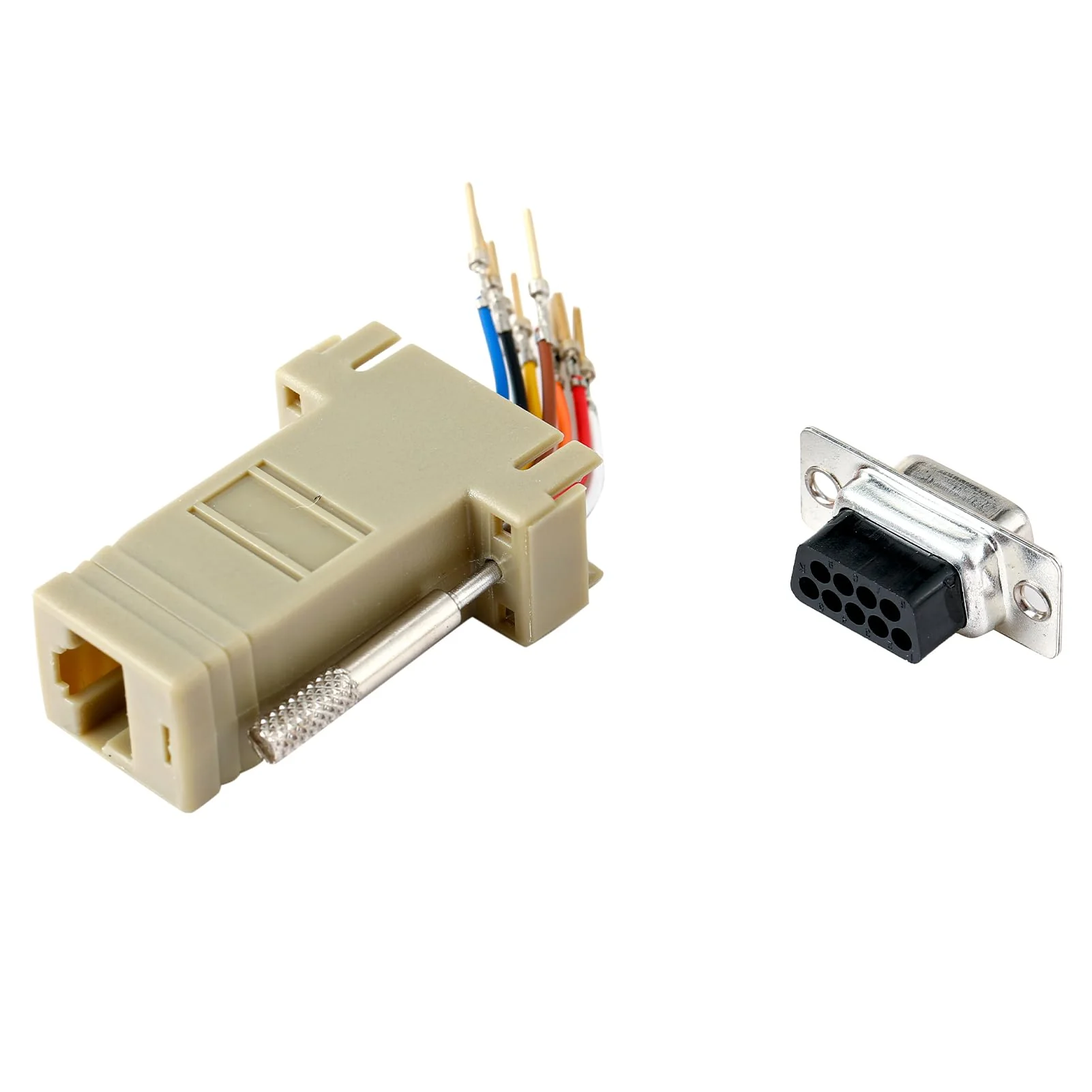

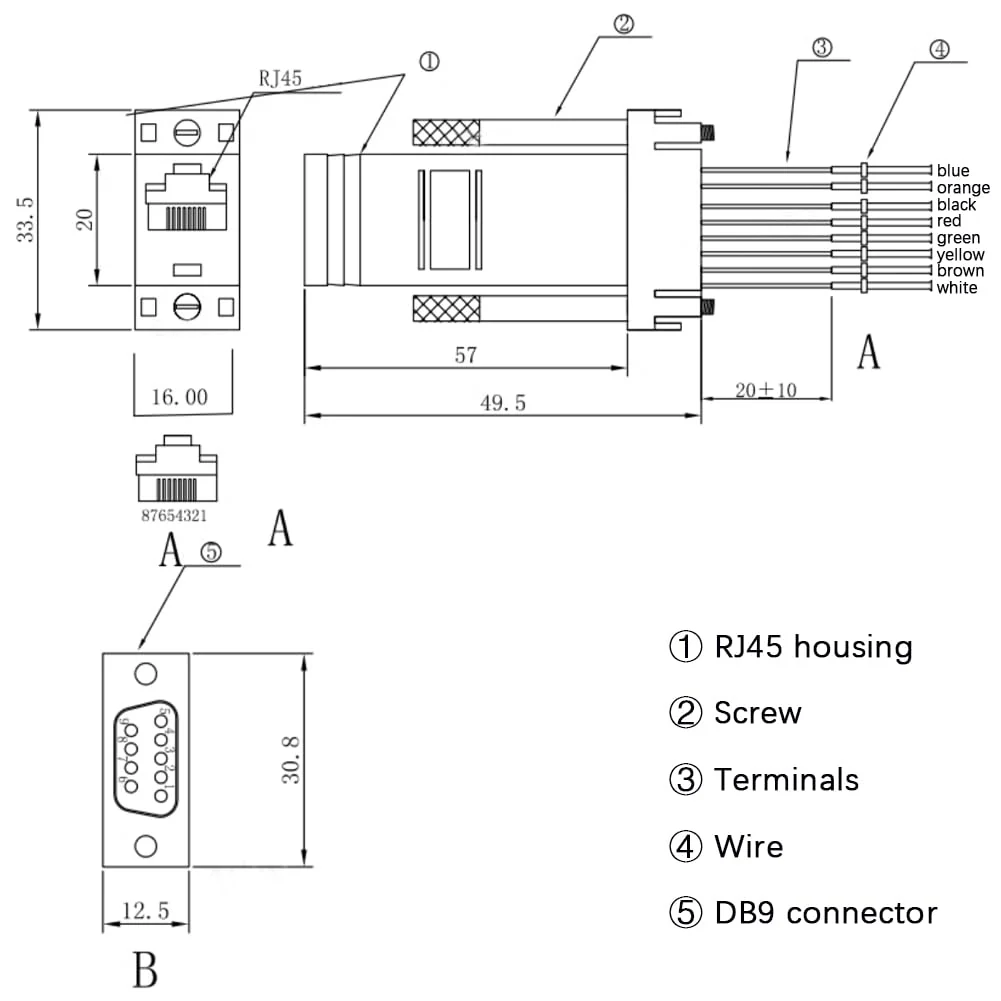

A DB9 female to RJ45 adapter is a connector that allows you to convert a DB9 serial port to an RJ45 Ethernet port (commonly used for networking). This adapter enables you to connect devices with DB9 serial interfaces to a network using an Ethernet cable and an RJ45 interface. It enables the connection between devices that utilize different types of connectors. Specifications: Product name: DB9 female to RJ45 female module Shell material: ABS Wire: 1007 26 tinned copper wire Requires no external power RJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-White DB9 Pin Definition: 1.CD(Carrier Detect); 2.RD(Received Data); 3.TD(Transmitted Data); 4.DTR(Data Terminal Ready); 5.GND(Ground); 6.DSR(Data Set Ready); 7.RTS(Request to Send); 8.CTS(Clear to Send); 9.RI(Ring Indicator) Package includes: 10 PCS DB9 Female to RJ45 Modular Adapter
Product Features
- Transmit signals between your RS232 ports over CAT5, CAT5E, and CAT5 network cables. Transmits signals up to 100FT.

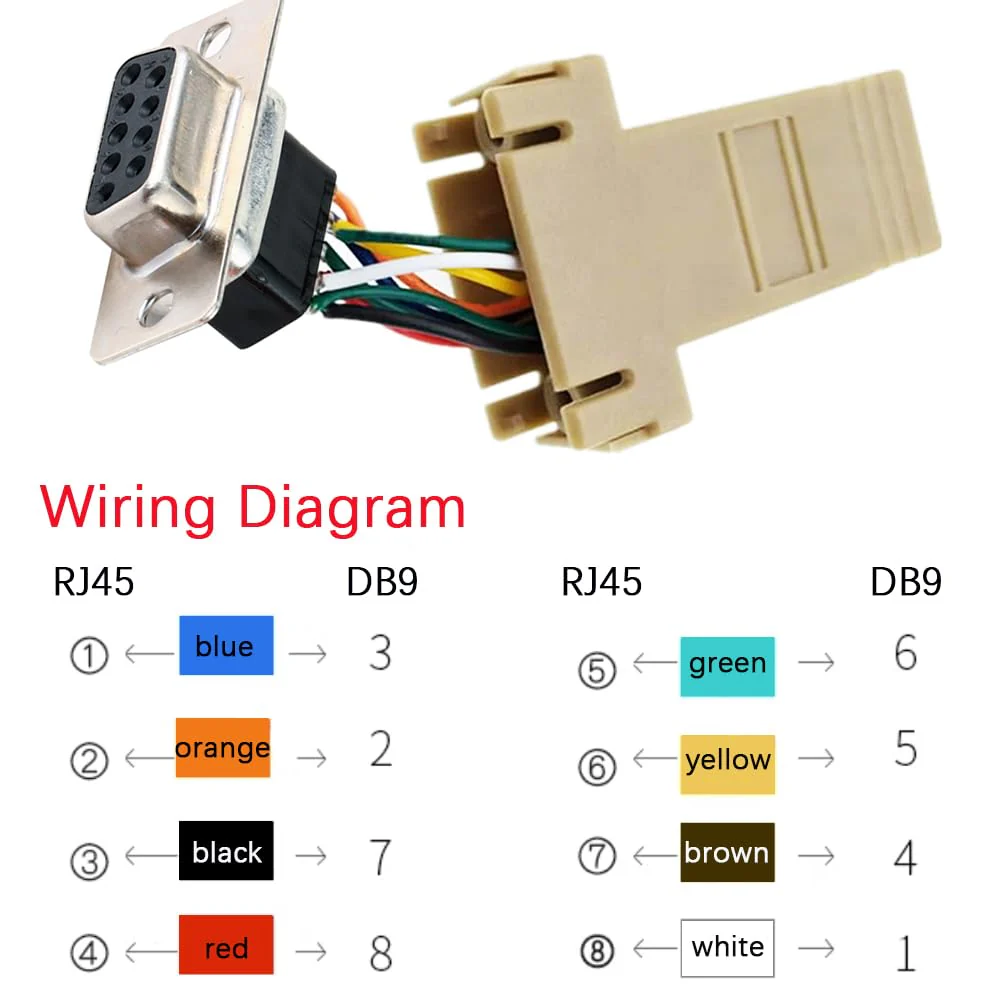

- RJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-White.
- DB9 Pin Definition: 1.CD(Carrier Detect); 2.RD(Received Data); 3.TD(Transmitted Data); 4.DTR(Data Terminal Ready); 5.GND(Ground); 6.DSR(Data Set Ready); 7.RTS(Request to Send); 8.CTS(Clear to Send); 9.RI(Ring Indicator).
- High quality alloy transmission port reduce the transmission impedance and interference, environmentally ABS material, super wear-resistant.
- The DB9 female to RJ45 adapter converts the pin configuration of the DB9 connector into the appropriate wiring scheme for an RJ45 connector, allowing you to establish a connection between devices that use these different interfaces. It is often used in scenarios where legacy serial devices need to be connected to a network infrastructure using Ethernet technologies.
